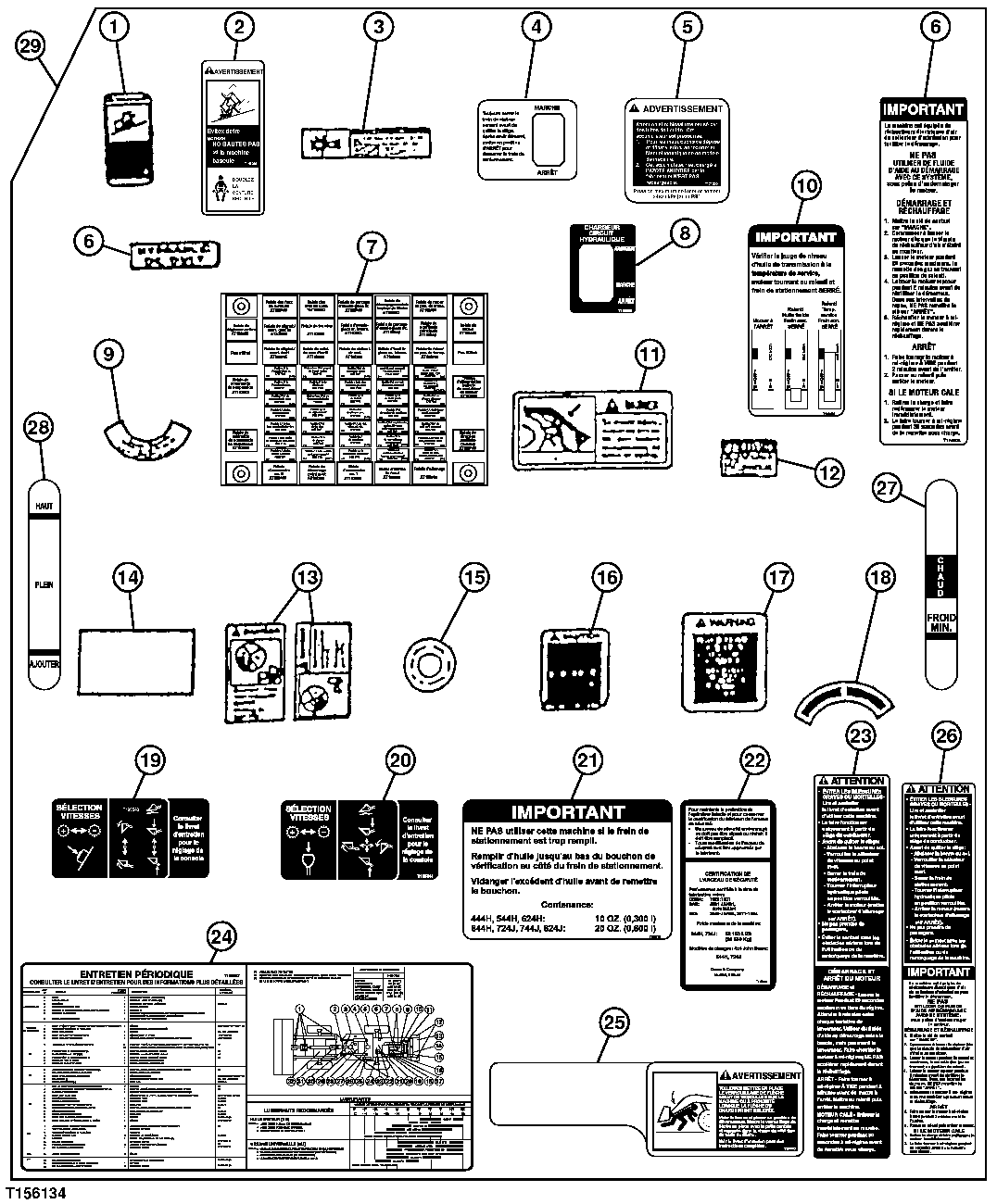

DECALS AND LABELS (FRENCH)(SN. -590067)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T160762	1	Label	Warning - Park Brake
2	T146099	1	Label	Warning - Seat Belt
3	T146496	2	Safety Sign	Warning - Articulation
4	T171750	1	Label	Park Brake
5	T174300	2	Label	Accumulator, (SUB FOR T175911)
6	T218568	1	Label	Hydraulic Oil, (SUB FOR T102618)
7	T177785	1	Label	Fuse Block
8	T195539	1	Label	Pilot Enable
9	CD12569	1	Label	Oil Filter Element
10	T200056	1	Label	Transmission Oil Check
11	T146178	1	Safety Sign	Danger - Boom
12	T146495	2	Safety Sign	Caution - Dual Batteries
13	T146104	1	Safety Sign	Danger - Bypass Start
14	T146607	1	Label	AIR CLEANER
15	T171756	1	Label	Caution - Radiator Cap
16	T146494	1	Safety Sign	Caution - Secondary Steering
17	T146908	2	Safety Sign	Warning - Accumulator
18	T63224	1	Label	Battery Disconnect
19	T195540	1	Label	Stackable Controls
20	T195541	1	Label	Joystick Controls
21	T207750	1	Label	Park Brake Overfill, (SUB FOR T195759)
22	T200802	1	Label	ROPS, (SUB FOR T195866)
23	T195558	1	Label	Engine Start /Stop
24	T225020	1	Label	Periodic Maintenance, (SUB FOR T200025)
25	T195857	2	Label	Boom Lock
26	T208087	1	Safety Sign	Engine Air Heater Start / Stop, (SUB FOR T196476)
27	T200065	1	Label	-
28	T197323	1	Label	-
29	-	1	Part 29	(AT226634 NLA)

DECALS AND LABELS (FRENCH)(SN. -590067)
