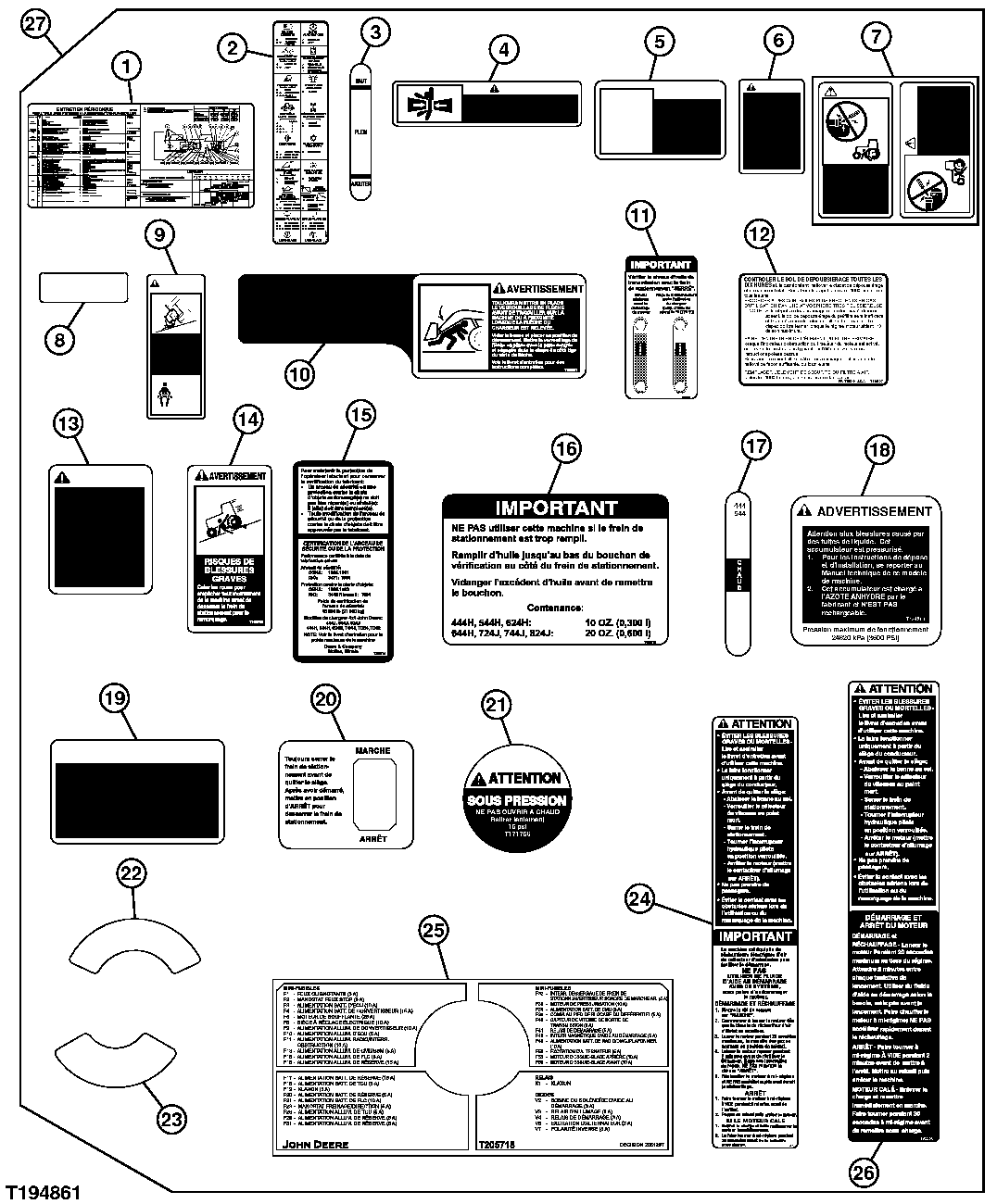

DECALS AND LABELS (FRENCH)(S.N. 590068-611218)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T225020	1	Label	Periodic Maintenance, (SUB FOR T200025)
2	T200791	1	Label	Console Function Identification
3	T197323	1	Label	Hydraulic Reservoir Sight Gauge
4	T146496	2	Safety Sign	Warning
5	T146178	1	Safety Sign	Danger
6	T146494	1	Safety Sign	Caution - Secondary Steering
7	T146104	1	Safety Sign	Bypass Start
8	T218568	1	Label	Hydraulic Oil, (SUB FOR T102618)
9	T146099	1	Label	Warning - Seat Belt
10	T195857	2	Label	Boom Lock
11	T200056	1	Label	Transmission Oil Check
12	T146607	1	Label	Air Cleaner
13	T146908	2	Safety Sign	Warning - Ride Accumulator
14	T160762	1	Label	Warning - Park Brake
15	T200802	1	Label	ROPS
16	T207750	1	Label	Park Brake Overfill, (SUB FOR T195759)
17	T200065	1	Label	Transmission Sight Gauge
18	T174300	2	Label	Accumulator
19	T146495	2	Safety Sign	Caution
20	T171750	1	Label	Park Brake Switch
21	T171756	1	Label	Radiator Cap
22	T63224	1	Label	Disconnect
23	CD12569	1	Label	Oil Filter Element
24	T208087	1	Safety Sign	Caution - Engine Air Heater, (SUB FOR T196476)
25	T205718	1	Label	Vehicle Information
26	T195558	1	Label	Engine Start/Stop
27	-	1	Part 27	(AT301058 NLA

DECALS AND LABELS (FRENCH)(S.N. 590068-611218)
