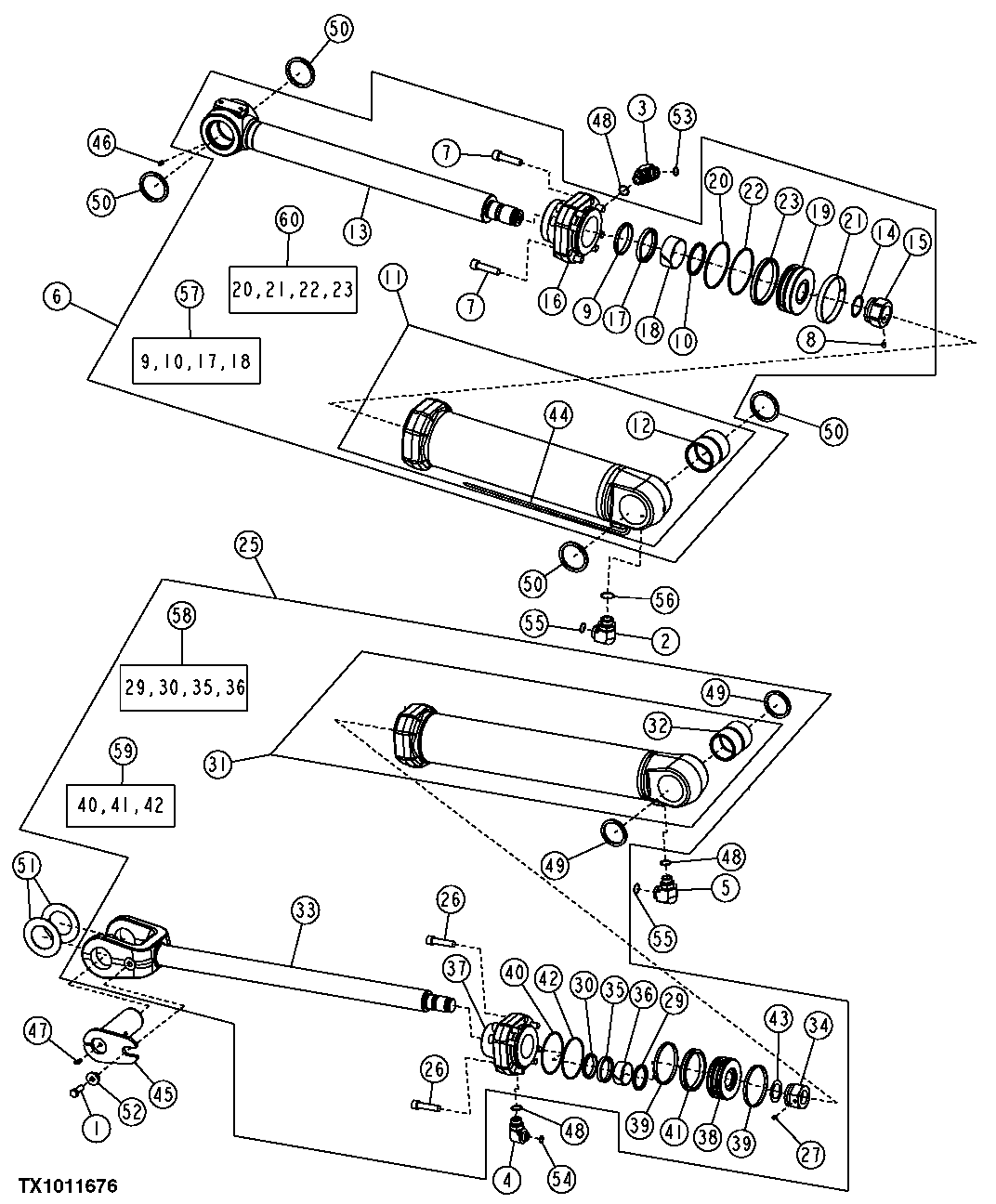

BUCKET AND BOOM CYLINDERS AND REPAIR KITS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7489	2	Cap Screw	M16 X 45
2	38H1008	1	Elbow Fitting	-
3	38H1037	1	Elbow Fitting	-
4	38H1052	2	Elbow Fitting	-
5	38H1053	2	Elbow Fitting	-
6	-	1	Part 6	(SUB FOR AH210183 ) (ALSO ORDER AT307065, AT305042, AT307897, (3) 19M7784, (2) T224794 AND (4) T225572) (AH159069 OR AH225719NLA)
7	19M8985	8	Screw	(Bucket Cylinder) M20 X 80
8	22M7009	1	Set Screw	(Bucket Cylinder) M12 X 12
8	T13624	1	Ball	(Bucket Cylinder)
9	AH157291	1	Seal	(Bucket Cylinder)
10	AH157292	1	Seal	(Bucket Cylinder)
11	AH161347	1	Hydraulic Cylinder Barrel	(Bucket Cylinder)
12	R85556	1	Bushing	(Bucket Cylinder)
13	-	1	Part 14	(Bucket Cylinder) (AH223699 NLA) (SUB AH227131 ) (ALSO ORDER T224794 AND (2) T225572 ) (SUB FOR AH161349)
14	AT153937	1	Shim	(Bucket Cylinder)
15	H155879	1	Nut	(Bucket Cylinder)
16	H173655	1	Hydr. Cylinder Rod Guide	(Bucket Cylinder)
17	H163979	1	Seal	(Bucket Cylinder)
18	H163980	1	Bushing	(Bucket Cylinder)
19	H168220	1	Piston	(Bucket Cylinder)
20	H88900	1	O-Ring	(Bucket Cylinder)
21	R85228	1	Wear Ring	(Bucket Cylinder)
22	R98669	1	Back-Up Ring	(Bucket Cylinder)
23	RE25146	1	Seal	(Bucket Cylinder)
25	-	2	Part 25	(AH225288 NLA) (SUB AH227117) (ALSO ORDER T228835 AND (2) T225571) (SUB FOR AH163632) (ALSO ORDER AT309401)
25	-	2	Part 26	(AH225288 NLA) (SUB AH227117) (ALSO ORDER T228835 AND (2) T225571) (SUB FOR AH163632) (ALSO ORDER AT309401)
26	19M8913	18	Screw	(Boom Cylinder) M18 X 80
27	22M7139	1	Set Screw	(Boom Cylinder) M10 X 10
27	400R	1	Ball	(Boom Cylinder)
29	AH150932	2	Seal	(Boom Cylinder)
30	AH150933	2	Seal	(Boom Cylinder)
31	AH159195	2	Hydraulic Cylinder Barrel	(Boom Cylinder)
31	AH210136	2	Hydraulic Cylinder Barrel	(Boom Cylinder)
32	H158397	2	Bushing	(Boom Cylinder)
33	AH223697	2	Rod	(Boom Cylinder) (SUB FOR AH159196)
34	H158175	2	Nut	(Boom Cylinder)
35	H158436	2	Seal	(Boom Cylinder)
36	H158437	2	Wear Ring	(Boom Cylinder)
37	H165481	2	Hydr. Cylinder Rod Guide	(Boom Cylinder)
37	H210640	2	Hydr. Cylinder Rod Guide	(Boom Cylinder)
38	H169747	2	Piston	(Boom Cylinder)
39	H169752	4	Wear Ring	(Boom Cylinder)
40	R78818	2	Back-Up Ring	(Boom Cylinder)
41	RE25102	2	Seal	(Boom Cylinder)
42	T38485	2	O-Ring	(Boom Cylinder)
43	TH110253	2	Shim	(Boom Cylinder)
44	AT103107	2	Grease Hose	-
45	AT339970	4	Pin Fastener	(SUB FOR AT206731)
46	JD7759	2	Lubrication Fitting	-
47	JD7763	4	Lubrication Fitting	-
48	R29936	10	O-Ring	-
49	T102137	8	Seal	-
50	T102138	8	Seal	-
51	T171734	8	Washer	-
52	T176064	4	Bushing	-
53	T76938	2	O-Ring	-
54	T77858	4	O-Ring	-
55	T78612	6	O-Ring	-
56	U13639	2	O-Ring	-
57	AH159192	1	Hydraulic Cylinder Kit	(Bucket Cylinder) Cylinder Rod Repair, (INCLUDES H165482)
58	AH156466	2	Hydraulic Cylinder Kit	(Boom Cylinder) Cylinder Rod Repair, (INCLUDES H163187)
59	AH163673	2	Hydraulic Cylinder Kit	(Boom Cylinder) Cylinder Bore Repair, (INCLUDES H170140)
60	AH137210	1	Hydraulic Cylinder Kit	(Bucket Cylinder) Cylinder Bore Repair, (INCLUDES H142173)

BUCKET AND BOOM CYLINDERS AND REPAIR KITS

Нет текстового описания
