AXLE COOLER, HOSES AND FITTINGS (SN 611219-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT335656	1	Field Installation Kit	Axle Oil Cooler
2	14M7296	8	Flange Nut	M10
3	14M7396	4	Lock Nut	M8
4	19M3212	2	Cap Screw	M16 X 55
5	19M7786	8	Screw	M10 X 30
6	19M7835	8	Screw	M10 X 35
7	19M7868	4	Screw	M8 X 30
8	19M7950	2	Cap Screw	M20 X 45
9	19M8295	2	Cap Screw	M16 X 55
10	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
11	24M7242	2	Washer	21.400 X 42 X 5 mm
12	24M7296	19	Washer	10.500 X 30 X 2.500 mm
13	38H1005	7	Elbow Fitting	-
14	R26375	14	O-Ring	-
15	T77857	10	O-Ring	-
16	38H1010	6	Elbow Fitting	-
17	T77613	18	O-Ring	-
18	38H1012	1	Elbow Fitting	-
19	R26906	2	O-Ring	-
20	38H1094	1	Elbow Fitting	-
21	38H1160	1	Adapter Fitting	-
22	R26448	1	O-Ring	-
23	38H1174	1	Adapter Fitting	-
24	38H1175	1	Adapter Fitting	-
25	U12547	3	O-Ring	-
26	38H1291	2	Tee Fitting	-
27	38H1564	1	Elbow Fitting	-
28	R28782	2	O-Ring	-
29	AT220732	1	Hydraulic Hose	-
30	AT220832	1	Pump	-
31	AT223728	1	Valve	-
32	AT223805	1	Seal Kit	Not Illustrated
33	AT220925	2	Oil Filter	-
34	AT227010	1	Hydraulic Hose	-
35	AT227487	2	Heat Exchanger	-
36	AT227807	1	Fitting	-
37	AT228617	1	Hydraulic Hose	-
38	AT334629	1	Hydraulic Hose	-
39	AT334630	1	Hydraulic Hose	-
40	AT335142	1	Hydraulic Hose	-
41	AT335147	1	Hydraulic Hose	-
42	AT335179	4	Hydraulic Hose	Fabricate
43	AT335207	1	Hydraulic Hose	-
44	AT335208	1	Hydraulic Hose	-
45	R135543	4	Washer	-
46	T196284	4	Bracket	-
47	T197061	1	Bracket	-
48	T213828	2	Plate	-
49	T74416	2	Clamp	-
50	T81029	2	Nut	-

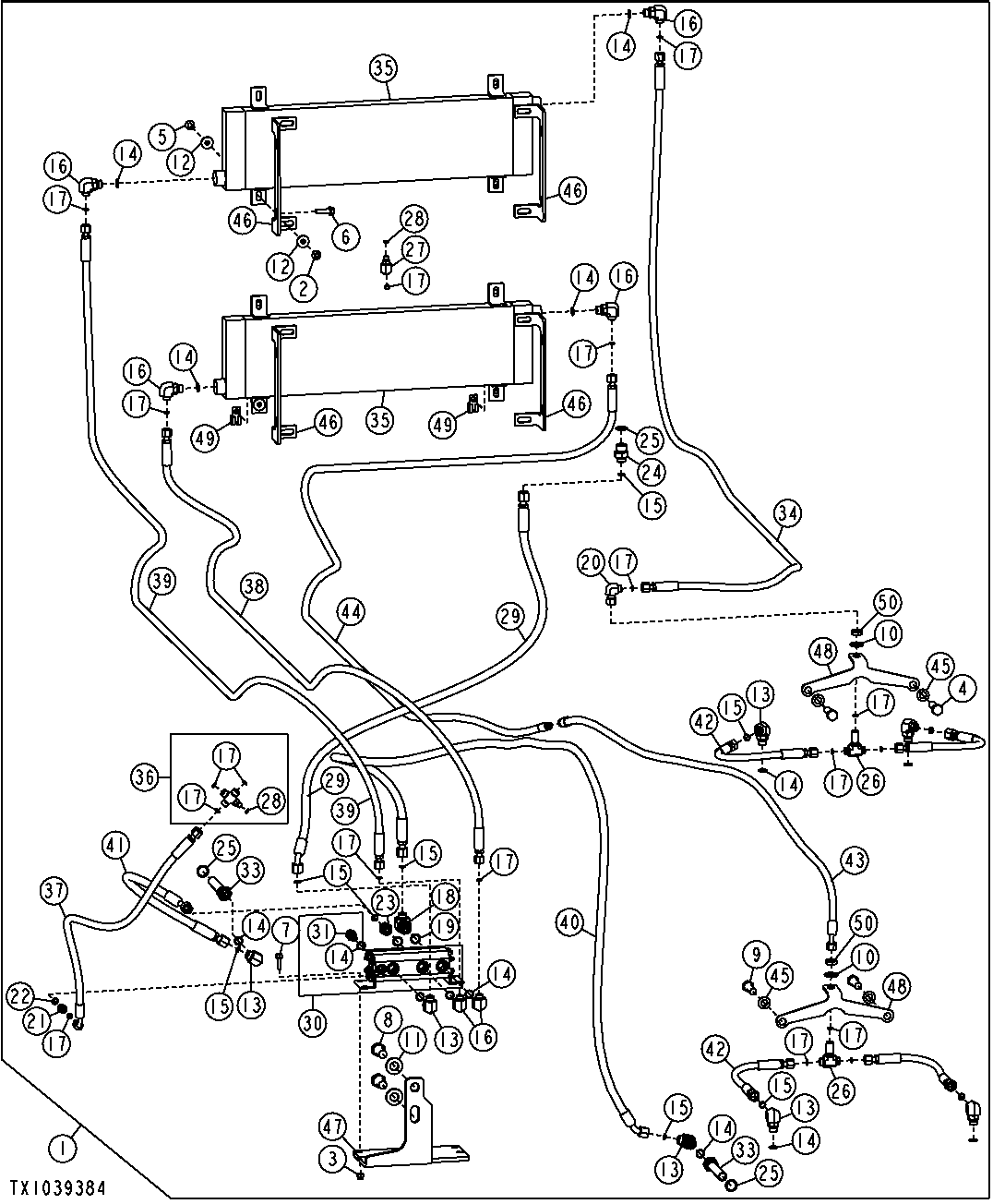

AXLE COOLER, HOSES AND FITTINGS (SN 611219-)
