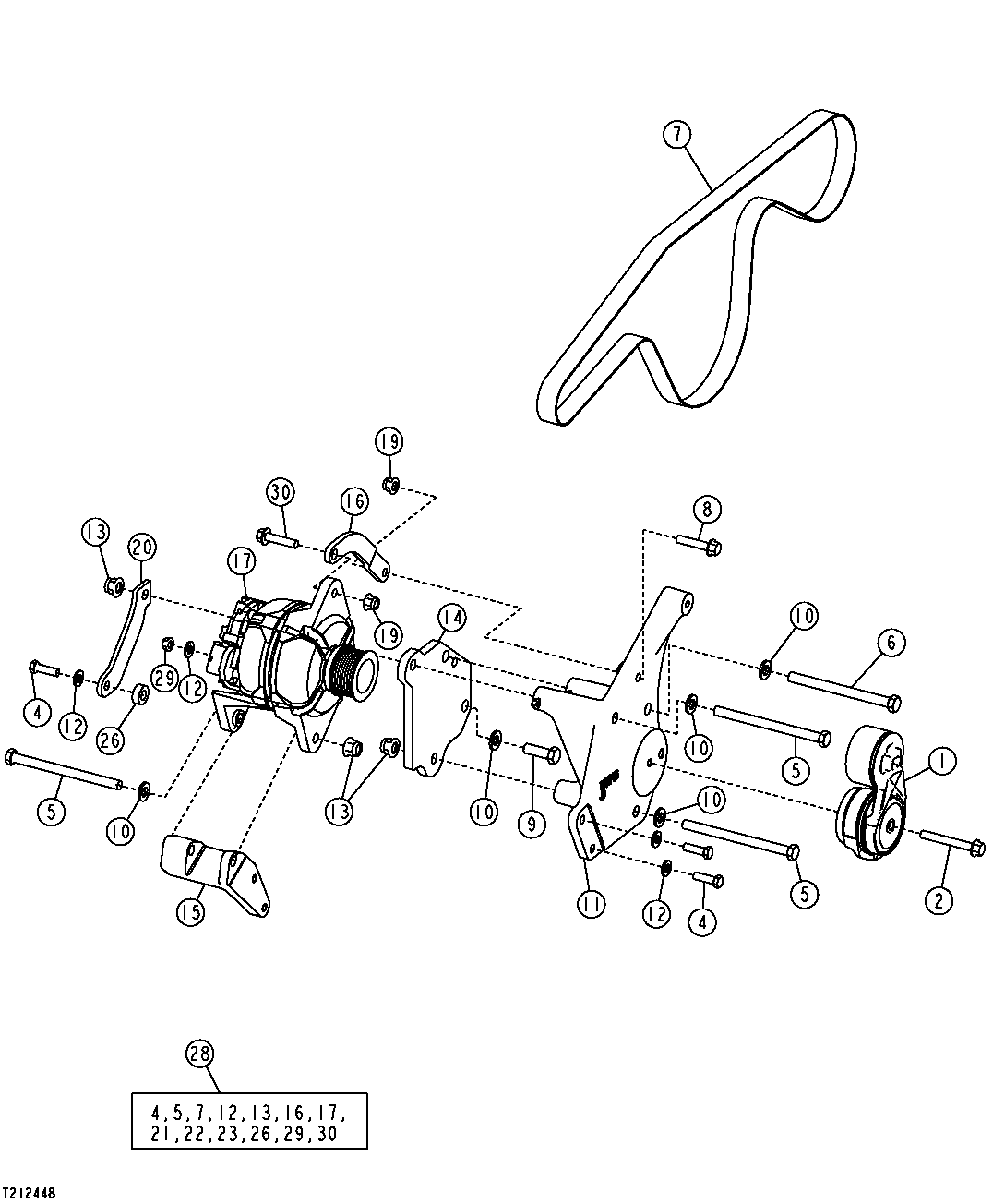

ALTERNATOR, MOUNTING BRACKETS, BELT AND BELT TENSIONER (80 A)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE518097	1	Belt Tensioner	(SUB FOR RE70535)
2	19M7810	1	Screw	M10 X 80
3	T181325	1	Pulley	-
4	19H3239	3	Cap Screw	3/8" X 1-1/4"
5	19M7904	3	Cap Screw	M12 X 160
6	19H3136	1	Cap Screw	1/2" X 5-3/4"
7	T428703	1	V-Belt	1920 mm, With Air Conditioning, SUB FOR T178419
7	T428691	1	V-Belt	1220 mm, Without Air Conditioning, SUB FOR T178418
8	19M7806	1	Screw	M10 X 50
9	19H2993	1	Cap Screw	1/2" X 1-1/2"
10	24M7240	4	Washer	13 X 25 X 3 mm
10	24M7240	5	Washer	13 X 25 X 3 mm
11	T181746	1	Bracket	-
12	24M7239	3	Washer	10.700 X 21 X 2.500 mm
12	24M7239	4	Washer	10.700 X 21 X 2.500 mm
13	14M7401	3	Lock Nut	M12
14	T181745	1	Support	-
15	R500607	1	Strap	-
16	T181773	1	Bracket	-
17	SE501348	1	Alternator Reman	REMAN FOR AT208541, TY6794 OR TY25955
17	AT303320	1	Alternator	-
17	SE501833	1	Alternator Reman	REMAN FOR AT303320
17	T201538	1	Pulley	-
17	AT208541	1	Alternator	-
18	19H3385	1	Cap Screw	1/2" X 1-1/8"
19	14M7400	1	Lock Nut	M10
19	14M7400	2	Lock Nut	M10
20	T182353	1	Strap	-
21	12H325	1	Lock Washer	7/16"
22	14H849	1	Nut	7/16"
23	14M7303	1	Flange Nut	M6
24	14M7100	1	Nut	M4
25	24M7146	2	Washer	4.300 X 12 X 1 mm
26	T175669	1	Spacer	-
28	-	1	Part 35	(AT226550 NLA)
29	14M7298	1	Flange Nut	M8
30	19M7805	1	Screw	M10 X 45

ALTERNATOR, MOUNTING BRACKETS, BELT AND BELT TENSIONER (80 A)
