Housing, Front PTO, Type 3, Clockwise

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL117978	1	Adapter Fitting	-
2	AT107510	11	Plug	-
3	RE306969	1	Fitting	-
4	51M7049	1	O-Ring	38.600 X 2.900 mm
5	RE537634	1	Sensor	B537, Front PTO Speed Sensor
6	R186340	1	Spool Valve	-
7	R186351	1	Pipe Plug	-
8	R186352	1	Drain Plug	-
9	R186353	1	Guide	-
10	R306582	1	O-Ring	-
11	R306584	1	Faceplate	-
12	R306968	1	Screen	-
13	R323941	1	Spring	-
14	R339715	2	Ball	-
15	R43816	1	Snap Ring	-
16	R47816	2	Spring	-
17	R95045	1	Clamp	-
18	T75497	2	O-Ring	-
19	U41966	1	O-Ring	-
20	15H561	1	Pipe Plug	1/2"
21	16M7115	3	Rivet	3 mm
22	19M7784	1	Screw	M10 X 20
23	19M7801	17	Screw	M8 X 60
24	24M6504	1	Washer	10 X 16 X 1.500 mm
25	24M7138	1	Washer	5.300 X 15 X 1 mm
26	37H26	2	Screw	0.116" X 1/4"
27	38H1416	2	Fitting	-
28	44M7131	3	Dowel Pin	-
29	51M7041	6	O-Ring	11.300 X 2.200 mm
30	51M7043	6	O-Ring	15.300 X 2.200 mm
31	RE57836	2	Pipe Plug	-
32	A82345	2	Bushing	-
33	24M7242	4	Washer	21.400 X 42 X 5 mm
34	19M9134	4	Cap Screw	M20 X 80
35	38H5017	2	Elbow Fitting	-
36	T77857	2	O-Ring	-
37	-	1	Part 37	CTL 209 mm, MF TY22551
38	RE333184	1	Housing	INCLUDES (8) AT107510 AND (2) RE252354
39	RE343758	1	Housing	INCLUDES (3) AT107510 AND RE252354
40	RE46684	2	Fitting Plug	-
41	U11326	1	O-Ring	-
42	RE252354	3	Plug	-
43	AXE16689	1	Pressure Sensor	B531, Front PTO Clutch Pressure Sensor
44	RE537637	1	Coolant Temperature Sensor	B532, Front PTO Oil Temperature Sensor
45	19M7923	2	Cap Screw	M6 X 12
46	RE324802	1	Solenoid Valve	Front PTO Solenoid Valve
47	RE63751	2	Pipe Plug	-
48	R341357	1	Fitting	-
49	R151701	1	O-Ring	-
50	P42061	1	O-Ring	-
51	R27928	1	O-Ring	-
52	R62070	1	Ring	-
53	T143166	1	O-Ring	-
54	R540078	1	Indicator	-

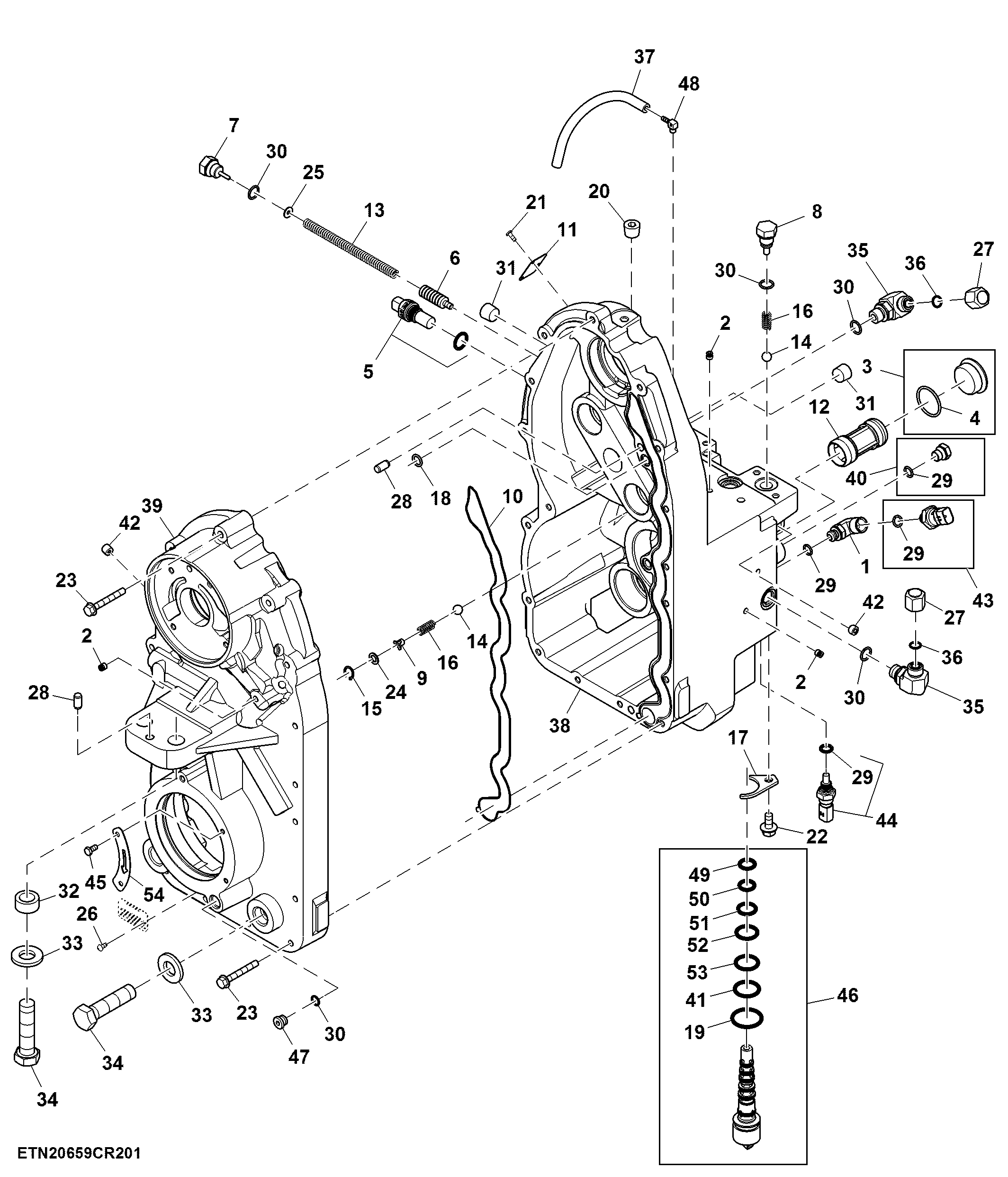

Housing, Front PTO, Type 3, Clockwise
