Front Loader Control (Front Hitch and 11 / 12 / 6 SCV Side Module)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R307677	1	Housing	-
2	R307678	1	Cover	-
3	H111705	3	Screw	-
4	RE270522	1	Control Lever	(11 SCV / Green)
4	RE273295	1	Control Lever	(12 SCV / Blue)
4	RE272684	1	Control Lever	(Hitch Control)
4	RE310676	1	Control Lever	(6 SCV / Black)
5	RE267676	1	Potentiometer	-
6	R125878	1	Arm	-
7	R217571	1	Torsion Spring	-
8	R171535	1	Bracket	-
9	R125879	1	Torsion Spring	-
10	19M7867	2	Screw	M8 X 25
11	R250192	6	Screw	-
12	RE311653	1	Cab Wiring Harness	-
13	R311643	1	Cover	-
14	R237999	2	Cover	-
15	RE311167	1	Label	(11 / 12 / 13 SCV)
15	RE310202	1	Label	(11 / 12 / 6 SCV)
15	RE311165	1	Label	(Front Hitch / 11 SCV / 6 SCV)
16	R237998	1	Plug	-
17	RE310914	1	Cab Wiring Harness	-
18	57M7717	1	Electrical Connector Assy	CSM; ORDER (8) RWA10603 AND (2) RWA11122
18	57M7722	1	Electrical Connector Assy	-
19	57M11350	1	Elec. Connector Housing	CARM
20	57M11350	1	Elec. Connector Housing	BL
21	57M7708	1	Electrical Connector Assy	SCV-11; ORDER (4) RWA10603
22	57M7708	1	Electrical Connector Assy	SCV-12; ORDER (4) RWA10603
23	57M7708	1	Electrical Connector Assy	SCV-13; ORDER (4) RWA10603
24	57M9229	1	Clip	-
25	57M11355	1	Elec. Connector Housing	PPD
26	57M11355	1	Elec. Connector Housing	INV
27	57M11350	1	Elec. Connector Housing	BL

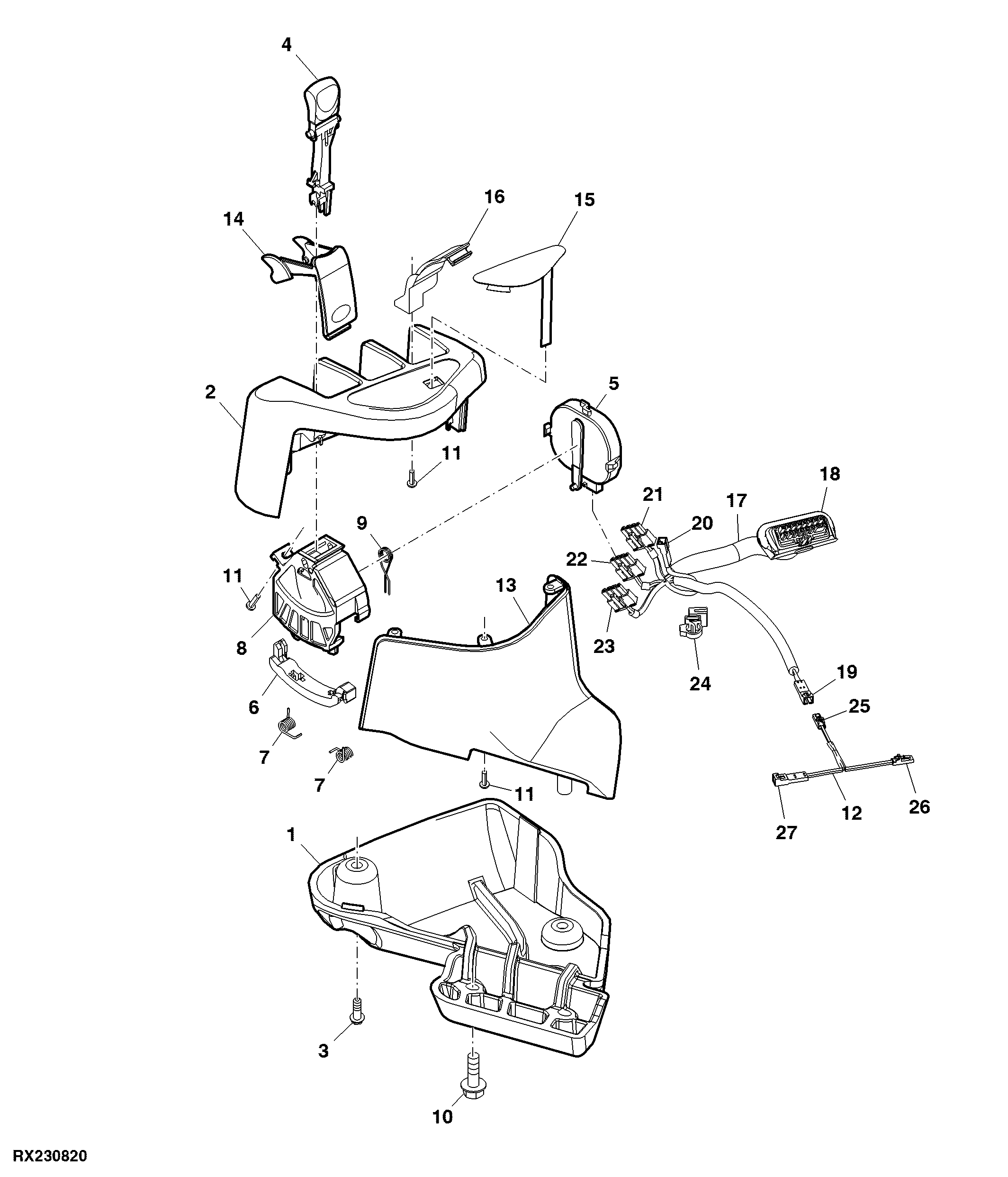

Front Loader Control (Front Hitch and 11 / 12 / 6 SCV Side Module)
