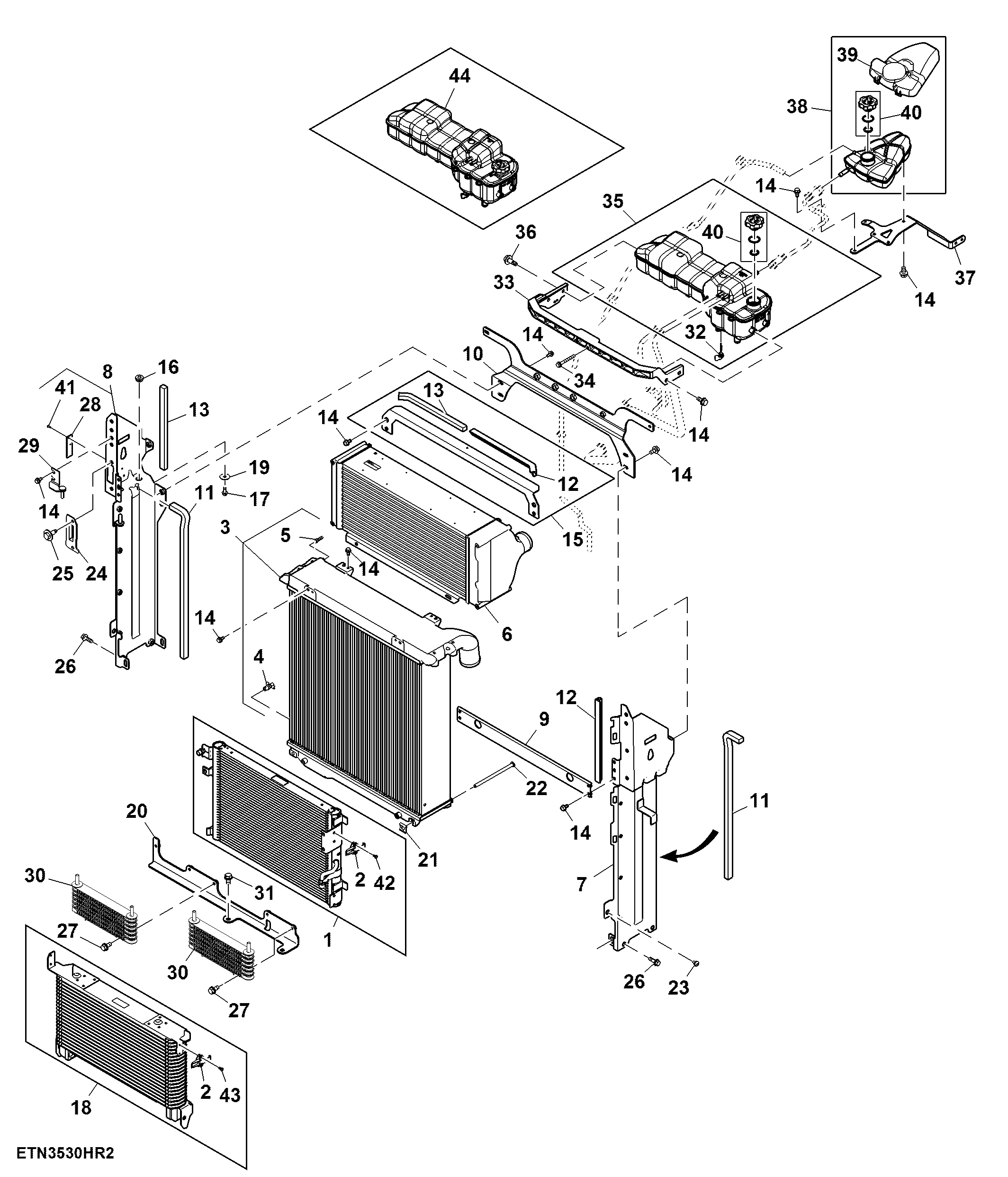

Cooling System, IT4 / T2, 6.8 L Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE287864	1	Vapor Condenser	-
2	RE252364	4	Latch	-
3	RE287861	1	Radiator	-
4	AT13740	1	Drain Valve	-
5	RE323287	1	Fitting	-
6	RE287862	1	Aftercooler	-
7	R332810	1	Support	LH
8	R332811	1	Support	RH
9	R287870	1	Support	Front Center
10	R287871	1	Support	Rear Center
11	R310688	1	Isolator	-
12	-	2	Part 12	CTL 330 mm; MF R297770
13	-	2	Part 13	CTL 330 mm; MF R310688
14	19M7865	24	Screw	M8 X 16
15	R287873	1	Support	Top Cooling Package
16	RE318596	4	Isolator	-
17	19M7868	4	Screw	M8 X 30
18	RE566107	1	Oil Cooler	Oil Cooler, 24 Rows SUB FOR RE287863
18	RE566094	1	Oil Cooler	Oil Cooler, 19 Rows SUB FOR RE332816
19	24H1299	4	Washer	3/8" X 1-1/4" X 0.065"
20	RE558287	1	Support	Fuel Cooler SUB FOR RE329213
21	R122267	2	Clamp	-
22	R309588	2	Pin	-
23	R235094	2	Bolt	-
24	R305900	1	Grommet	-
25	R323614	1	Screw With Washer	-
26	19M7786	4	Screw	M10 X 30
27	19M7864	4	Screw	M8 X 12
28	R322207	1	Bracket	RH
29	RE323299	1	Bracket	Condenser Pivot
30	RE558502	2	Fuel Cooler	SUB FOR RE241176
31	19M7784	2	Screw	M10 X 20
32	AL201300	2	Level Switch	-
33	R316164	1	Support	-
34	19M7802	2	Screw	M8 X 65
35	RE558306	1	Radiator Reservoir	-
36	R260828	2	Bolt	-
37	R538395	1	Bracket	USE WITH RE558224
38	RE558224	1	Radiator Reservoir	USE WITH RE558306
39	R539084	1	Shield	-
40	RE312969	2	Filler Cap	SUB FOR RE559158
41	H86981	2	Rivet	-
42	R54477	4	Rivet	-
43	R252362	4	Rivet	-
44	RE345169	1	Radiator Reservoir	ORDER RE558306, ALSO ORDER RE558224, R538395, (4) 19M7865

Cooling System, IT4 / T2, 6.8 L Engine
