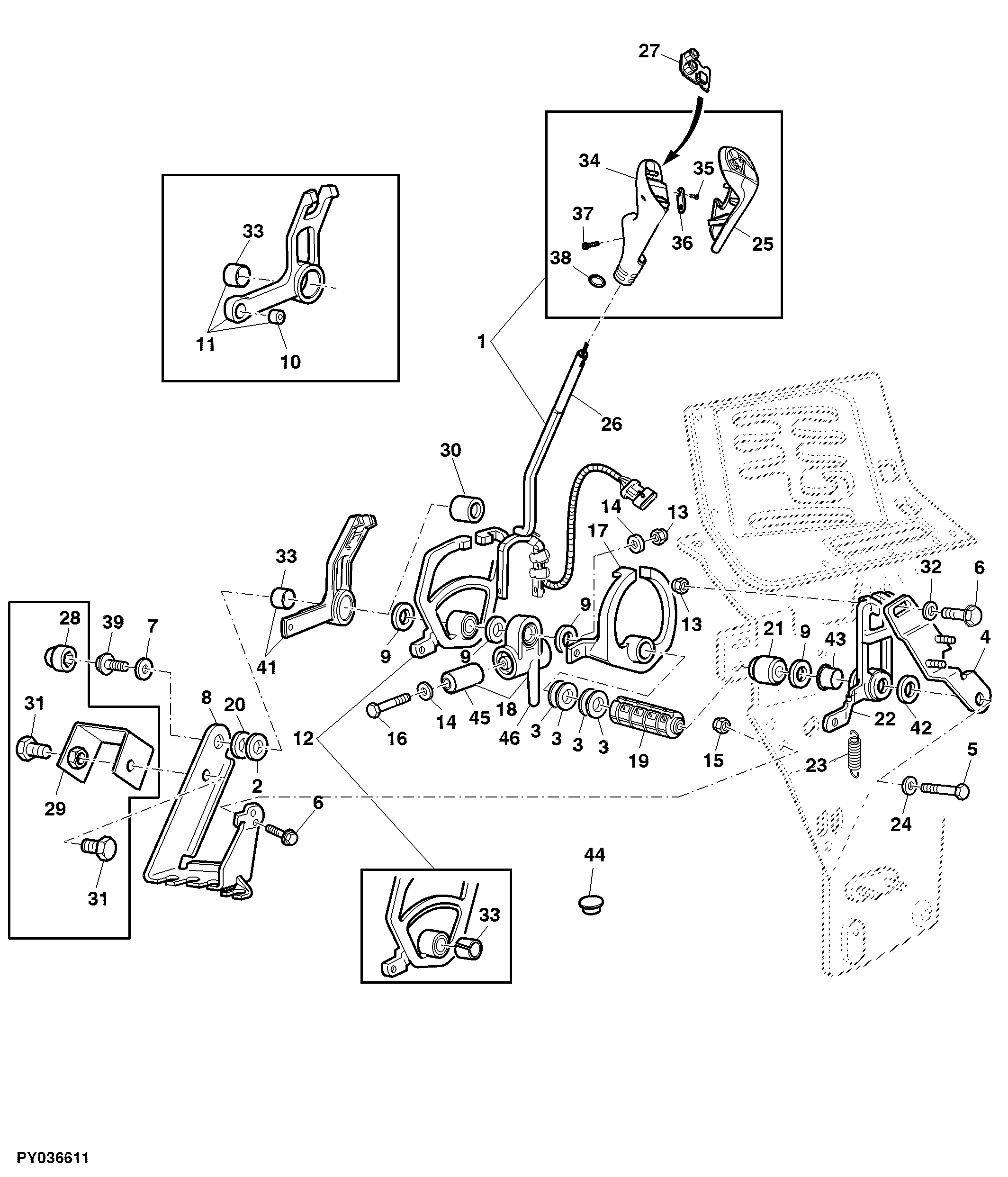

RANGE SHIFT COMPONENTS (POWRQUAD PLUS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL213220	1	Shifter Rod	SUB FOR AL153498, AL177364
2	L113225	1	Washer	TK= 6.0MM (15/64")
3	L112469	4	Shim	-
4	AL161077	1	Stop	-
5	L157701	1	Cap Screw	-
6	19M7865	3	Screw	M8 X 16
7	24M7024	1	Washer	9 X 28 X 3 mm
8	AL110861	1	Support	-
9	L77963	1	Washer	TK= 2.0MM (5/64")
10	L153824	1	Isolator	-
11	AL153630	1	Quadrant	(WITH 20 OR 24-SPEED TRANSMISSION)
12	AL117583	1	Quadrant	-
13	14M7166	1	Lock Nut	M8
14	L79335	2	Washer	-
15	14M7416	3	Flange Nut	M8
16	19M8403	1	Cap Screw	M8 X 75, (10.9)
17	AL117582	1	Quadrant	INCL KEY 33
18	AL110860	1	Support	INCL KEY 33
19	L113994	1	Pin Fastener	-
20	L111988	1	Washer	TK= 1.0MM (3/64")
20	L111987	1	Washer	TK= 1.5MM (1/16")
20	L77963	1	Washer	TK= 2.0MM (5/64")
21	L116303	1	Bushing	-
22	AL117581	1	Quadrant	INCL KEY 33
23	L102451	1	Extension Spring	-
24	24M7055	1	Washer	8.400 X 16 X 1.600 mm
25	AL208095	1	Grip	SUB FOR L152316 APPL
26	AL118593	1	Shifter	NLA; ORDER AL180587
26	AL180587	1	Shifter	-
27	L113722	1	Switch	NLA; ORDER L175907
27	L175907	1	Switch	-
28	L32394	1	Cap	-
29	AL153328	1	Support	-
30	L101929	1	Bushing	(WITH 16-SPEED TRANSMISSION)
31	19M7139	2	Cap Screw	M8 X 20
32	24M7298	1	Washer	8.400 X 25 X 2 mm
33	R198159	1	Bushing	SUB FOR L77978 APPL
34	AL167625	1	Grip	-
35	37M7179	2	Screw	-
36	AL201259	1	Clamp	SUB FOR AL163484
37	37M7389	3	Screw	-
38	L53890	1	O-Ring	-
39	M78508	1	Cap Screw	M8X 20
40	L157503	2	Clamp	-
41	AL200297	1	Quadrant	(WITH 20 OR 24-SPEED TRANSMISSION)
42	L201508	1	Washer	-
43	L204982	1	Bushing	-
44	99M7057	1	Plug	-
45	AL80994	1	Isolator	-
46	AL112614	1	Support	-

RANGE SHIFT COMPONENTS (POWRQUAD PLUS)
