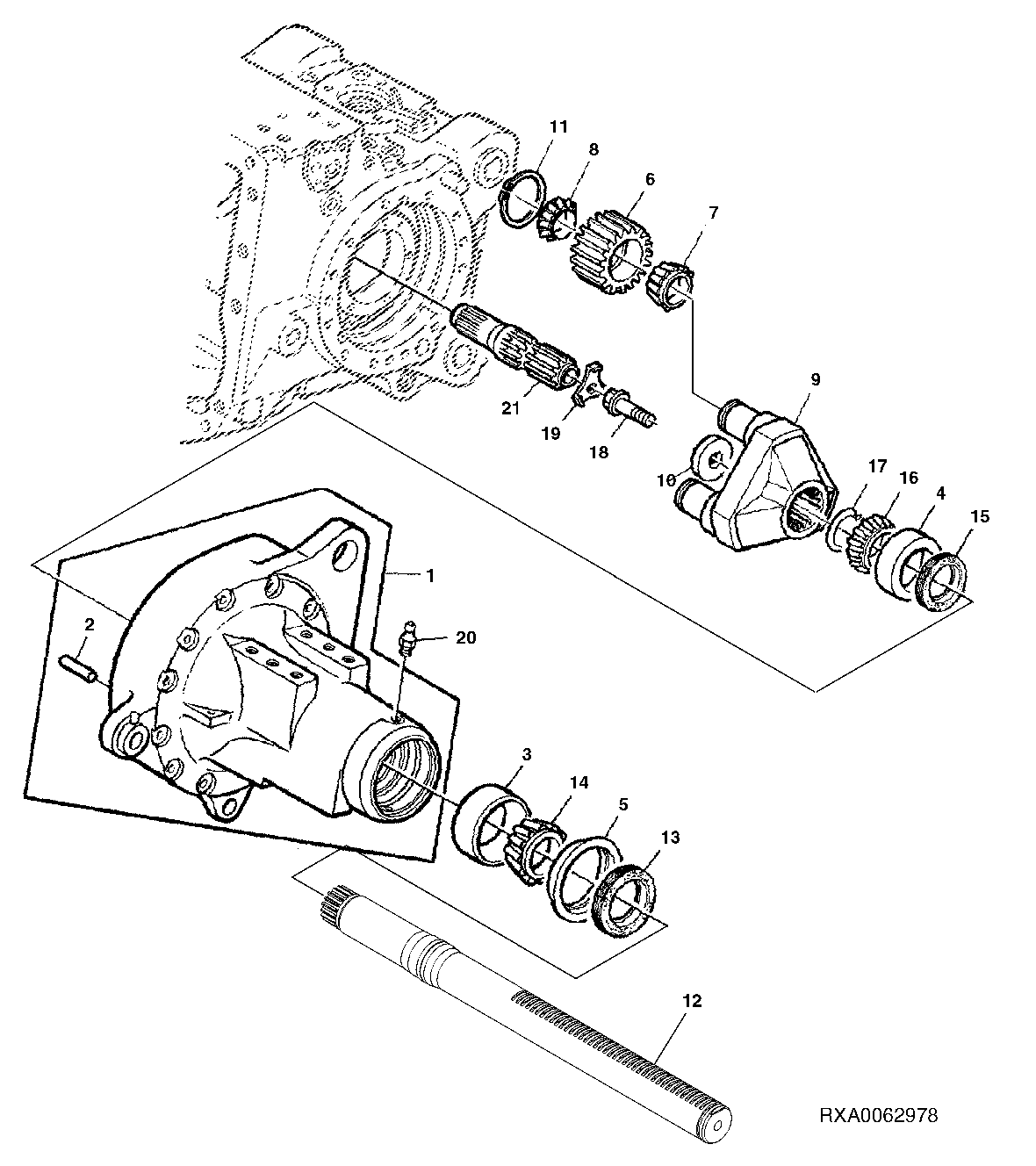

REAR AXLE, STRAIGHT (HEAVY DUTY VERSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL157748	1	Housing	LH (MARKED L155483)
1	AL157747	1	Housing	RH (MARKED L155482)
2	44M7114	6	Dowel Pin	-
3	L154620	2	Bearing Cup	-
4	L154621	2	Bearing Cup	-
5	L76058	2	Wear Ring	-
6	L154624	6	Pinion	-
7	AL159502	6	Bearing Cone	-
8	AL160457	6	Tapered Roller Bearing	(SUB FOR AL159501)
9	L152425	2	Planet Pinion Carrier	-
10	L156914	2	Bushing	-
11	L154818	1	Ring	TK= 2, 85MM (0.112")
11	L154821	1	Ring	TK= 3, 00MM (0.118")
11	L154820	1	Ring	TK= 2, 95MM (0.116")
11	L154819	1	Ring	TK= 2, 90MM (0.114")
11	L154817	1	Ring	TK= 2, 80MM (0.110")
11	L154815	1	Ring	TK= 2, 70MM (0.106")
11	L154814	1	Ring	TK= 2, 65MM (0.104")
11	L154813	1	Ring	TK= 2, 60MM (0.102")
11	L154812	1	Ring	TK= 2, 55MM (0.100")
11	L154811	1	Snap Ring	TK= 2, 50MM (0.098")
11	L154816	1	Ring	TK= 2, 75MM (0.108")
12	AL173208	2	Half Axle	(887MM), (MARKED L169138 ) (SUB FOR L154752 ) (INCLUDES L168987)
12	AL173207	2	Half Axle	(1072MM), Half Axle With Bushing, (SUB FOR L154751 ) (INCLUDES L168987)
12	L168982	2	Half Axle	(1072MM), Half Axle Without Bushing
13	AL158922	2	Seal	(SUB FOR AL75774)
14	AL156506	2	Bearing Cone	-
15	AL69712	2	Seal	-
16	AL156503	2	Bearing Cone	-
17	L76059	2	Snap Ring	-
18	L57311	2	Screw	-
19	L101142	2	Lock Plate	-
20	58M5575	2	Lubrication Fitting	-
21	L110821	1	Drive Shaft	RH
21	L110820	1	Drive Shaft	LH
..	L168987	1	Spacer	-
