Multiple Disk Self-Lock Differential, MFWD-Axle (Without Front Wheel Brake)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L112206	1	Washer	TK= 1.60 mm, ORDER L40998 AND L41000
1	L40997	1	Washer	TK= 1.20 mm, ORDER L40998 AND L41004
1	L112219	1	Washer	TK= 1.25 mm, ORDER L112222 AND L41004
1	L112220	1	Washer	TK= 1.30 mm, ORDER L40998 AND L41003
1	L112221	1	Washer	TK= 1.35 mm, ORDER L112222 AND L41003
1	L112210	1	Washer	TK= 1.40 mm, ORDER L40998 AND L41002
1	L112209	1	Washer	TK= 1.45 mm, ORDER L101689 AND L40998
1	L112208	1	Washer	TK= 1.50 mm, ORDER L40998 AND L41001
1	L112207	1	Washer	TK= 1.55 mm, ORDER L101690 AND L40998
1	L41004	1	Shim	TK= 0.20 mm
1	L112205	1	Washer	TK= 1.65 mm, ORDER L112211 AND L40998
1	L112204	1	Washer	TK= 1.70 mm, ORDER L112212 AND L40998
1	L112203	1	Washer	TK= 1.75 mm, ORDER L112213 AND L40998
1	L112202	1	Washer	TK= 1.80 mm, ORDER L40998 AND L40999
1	L112201	1	Washer	TK= 1.85 mm, ORDER L112214 AND L40998
1	L112200	1	Washer	TK= 1.90 mm, ORDER L112215 AND L40998
1	L112199	1	Washer	TK= 1.95 mm, ORDER L112216 AND L40998
1	L112198	1	Washer	TK= 2.00 mm
1	L112217	1	Washer	TK= 1.10 mm, ORDER L40998 AND L41005
1	L41005	1	Shim	TK= 0.10 mm
1	L41003	1	Shim	TK= 0.30 mm
1	L41002	1	Shim	TK= 0.40 mm
1	L101689	1	Shim	TK= 0.45 mm
1	L41001	1	Shim	TK= 0.50 mm
1	L101690	1	Shim	TK= 0.55 mm
1	L41000	1	Shim	TK= 0.60 mm
1	L112211	1	Washer	TK= 0.65 mm
1	L112213	1	Washer	TK= 0.75 mm
1	L40999	1	Washer	TK= 0.80 mm
1	L112214	1	Washer	TK= 0.85 mm
1	L112215	1	Washer	TK= 0.90 mm
1	L112216	1	Washer	TK= 0.95 mm
1	L40998	1	Washer	TK= 1.00 mm
1	L112222	1	Washer	TK= 1.05 mm
1	L112218	1	Washer	TK= 1.15 mm, ORDER L112222 AND L41005
1	L112212	1	Washer	TK= 0.70 mm
2	JD37087	1	Tapered Roller Bearing	-
3	34M7135	4	Spring Pin	14 X 40 mm
4	34M3875	4	Spring Pin	8 X 40 mm
5	19M8119	12	Screw	M12 X 130, M12X130 (12.9)
6	L100150	1	Disk With Outer Spline	TK=1.00 mm
6	L100151	1	Disk With Outer Spline	TK=1.10 mm
6	L100152	1	Disk With Outer Spline	TK=1.20 mm
7	L100153	8	Disk With Inner Spline	-
8	L100154	2	Thrust Washer	-
9	L101697	2	Bevel Gear	Z = 16
10	L101698	4	Bevel Gear	Z = 11
11	L40253	4	Washer	-
12	L101699	1	Housing	-
13	L39983	2	Axle With Differential	-
14	R75522	4	Lock Washer	SUB FOR L40254
15	JD37219	1	Tapered Roller Bearing	-

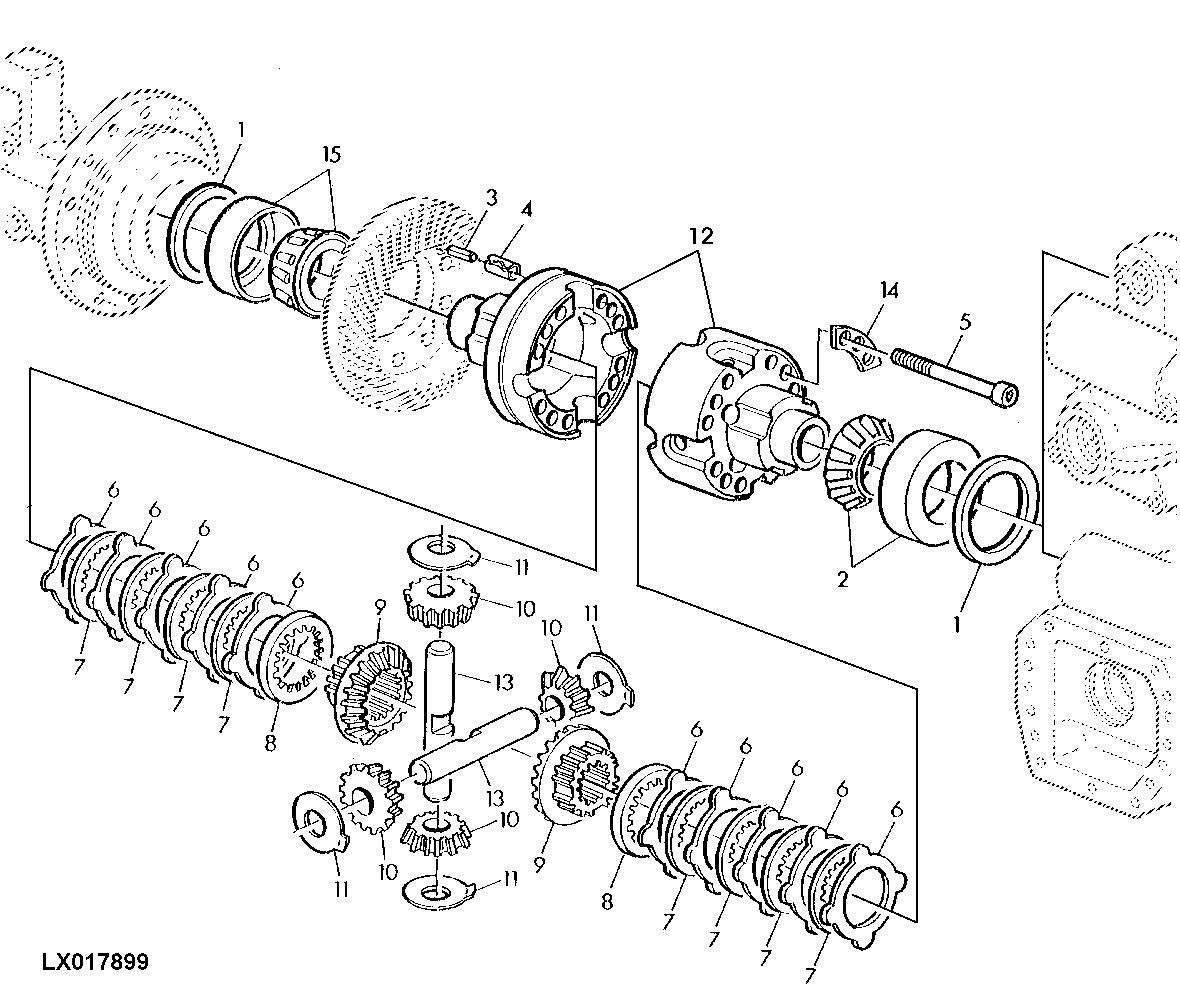

Multiple Disk Self-Lock Differential, MFWD-Axle (Without Front Wheel Brake)
