Front PTO- Modulating Valve/ Solenoid Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7775	2	Screw	M6 X 16
2	R95198	1	Plate	-
3	R95197	1	Gasket	-
4	R152204	1	Housing	-
5	R153481	1	Valve Spool	-
6	R95195	1	Compression Spring	-
7	34M3872	1	Spring Pin	6 X 60 mm
8	R95216	1	Compression Spring	ORDER R299263
8	R299263	1	Compression Spring	ALSO ORDER R299262, R299264 AND R299265
9	R95890	1	Piston	-
10	51M7041	2	O-Ring	11.300 X 2.200 mm
11	RE46684	2	Fitting Plug	-
12	P48347	1	O-Ring	-
13	R95892	1	Plug	-
14	40M1851	1	Snap Ring	-
15	19M8263	19	Screw	M6 X 30
16	19M7834	6	Screw	-
17	R95200	1	Gasket	-
18	L114427	1	Valve Seat	-
19	L114421	1	Spring	-
20	L114422	1	Fitting Plug	M12X14
21	19M7560	2	Cap Screw	M6 X 16
22	RE211158	1	Solenoid Valve	SUB FOR RE190712
23	RE47392	1	O-Ring Kit	INCLUDES R104554, R104555 AND R104556
24	R211082	2	Clamp	SUB FOR R187060
25	L64500	1	Sealant	50CCM (LOCTITE 574)
26	L154415	1	Manifold	(WITH PTO ROTATING COUNTERCLOCKWISE (IN DIR. OF TRAVEL))
26	L154410	1	Manifold	(WITH PTO ROTATING CLOCKWISE (IN DIR. OF TRAVEL))
27	L114423	1	Fitting Plug	-
28	L114424	1	Spring	-
29	L114587	1	Valve Seat	-
30	44M1117	1	Dowel Pin	3 X 10.900 mm
31	22M7009	2	Set Screw	M12 X 12
32	R104554	1	Ring	ORDER RE47392
33	R104555	1	Ring	ORDER RE47392
34	R104556	1	Ring	ORDER RE47392

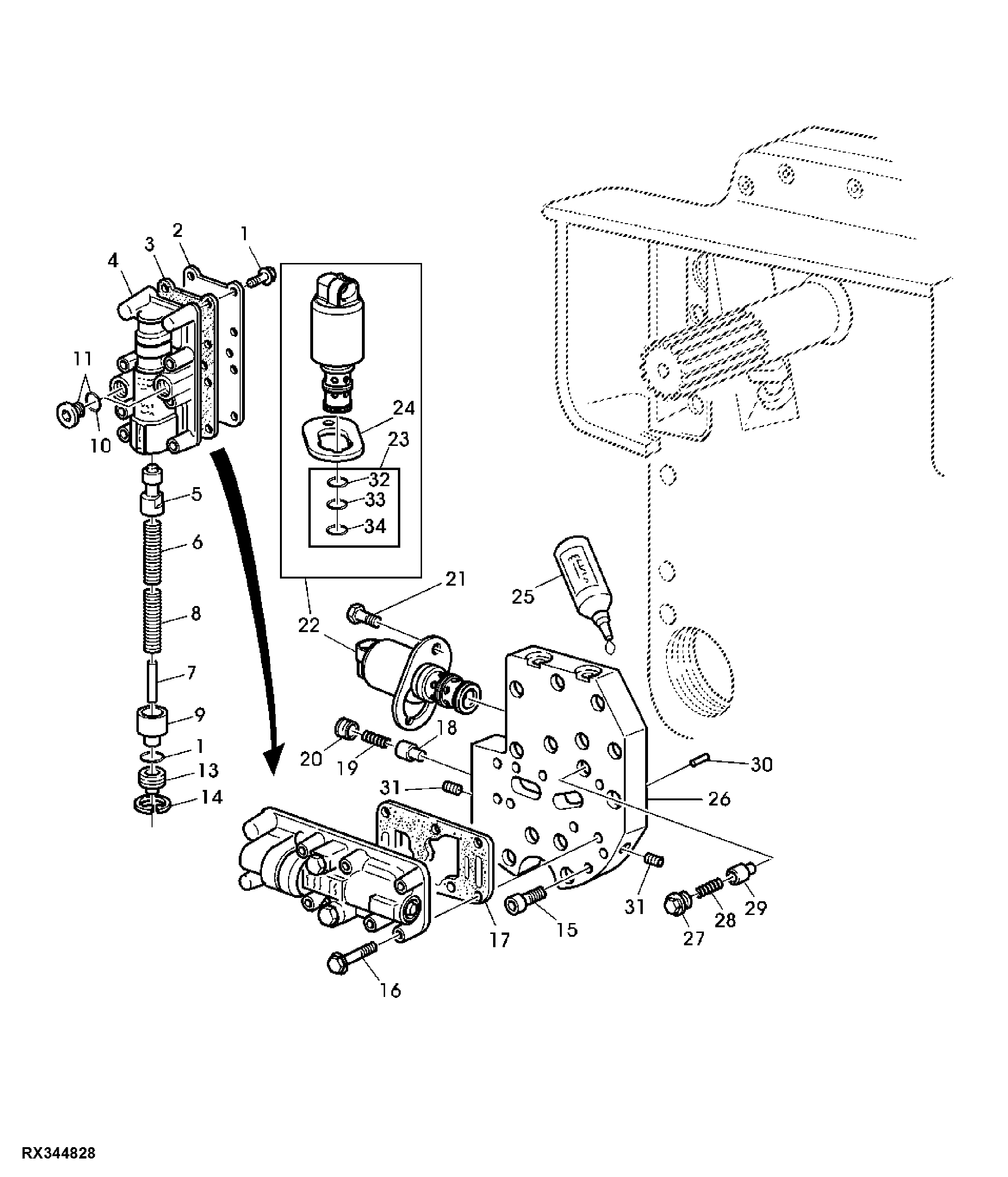

Front PTO- Modulating Valve/ Solenoid Valve
