Большое обновление пильных узлов

Смотреть

Открытый узел

Wiring Harness, Front Controller, TLS™, W/O MID SCV, Front Hitch Ready

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE587054	1	Wiring Harness	-
1	RE333964	1	Wiring Harness	ORDER RE587054
2	57M7289	2	Elec.Connect Locking Device	-
2	RWA11082	1	Repair Wire Assembly	Cavity A, B
2	57M7256	1	Elec. Connector Housing	TLS™ Damping
3	R78054	1	Electrical Connector Assy	TLS™ Position
3	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
4	RE12364	1	Electrical Connector Assy	TLS™ Position Sensor
4	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
5	RWA11083	1	Repair Wire Assembly	Cavity A, B
5	57M7289	2	Elec.Connect Locking Device	-
5	57M7254	1	Elec. Connector Housing	TLS™ Damping Valve
6	RE319490	1	Wiring Harness	-
7	57M7254	1	Elec. Connector Housing	TLS™ Damping Solenoid
7	57M7289	1	Elec.Connect Locking Device	-
7	RWA11083	1	Repair Wire Assembly	Cavity A, B
8	RE12364	1	Electrical Connector Assy	TLS™ Position Sensor
8	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
9	RWA10689	1	Repair Wire Assembly	Cavity B, D, E, F
9	57M7291	2	Electrical Connector Assy	-
9	57M7260	1	Elec. Connector Housing	Can Terminator (Moved From Chassis)
10	57M7263	1	Elec. Connector Housing	Front Chassis Can Backbone
10	57M7291	2	Electrical Connector Assy	-
10	RWA11082	1	Repair Wire Assembly	Cavity B, D, E, F
11	57M10297	1	Elec. Connector Housing	Chassis Harness (TLS™ Circuits)
11	RWA10608	1	Repair Wire Assembly	Cavity 4, 5, 6, 9, 10, 11, 12, 13, 14
11	RWA10639	1	Repair Wire Assembly	Cavity 1, 2, 3, 7
12	RWA11032	1	Repair Wire Assembly	Cavity G2, G3, H2, H3, H4
12	RWA11030	1	Repair Wire Assembly	Cavity A1, A3, A4, B3, B4, C4, D4, E1, E3, E4, F1, F2, F3, F4
12	57M10611	1	Elec. Connector Housing	Front Controller JI Connector
13	RE308958	1	Electrical Connector Cap	-
14	19M7866	1	Screw	M8 X 20
15	R213663	2	Clamp	-
16	RE258807	5	Tie Band	-
17	57M8903	1	Clip	-
18	57M8824	1	Elec. Connector Accessory	-
19	57M8910	1	Clip	-
20	57M8902	1	Clip	-

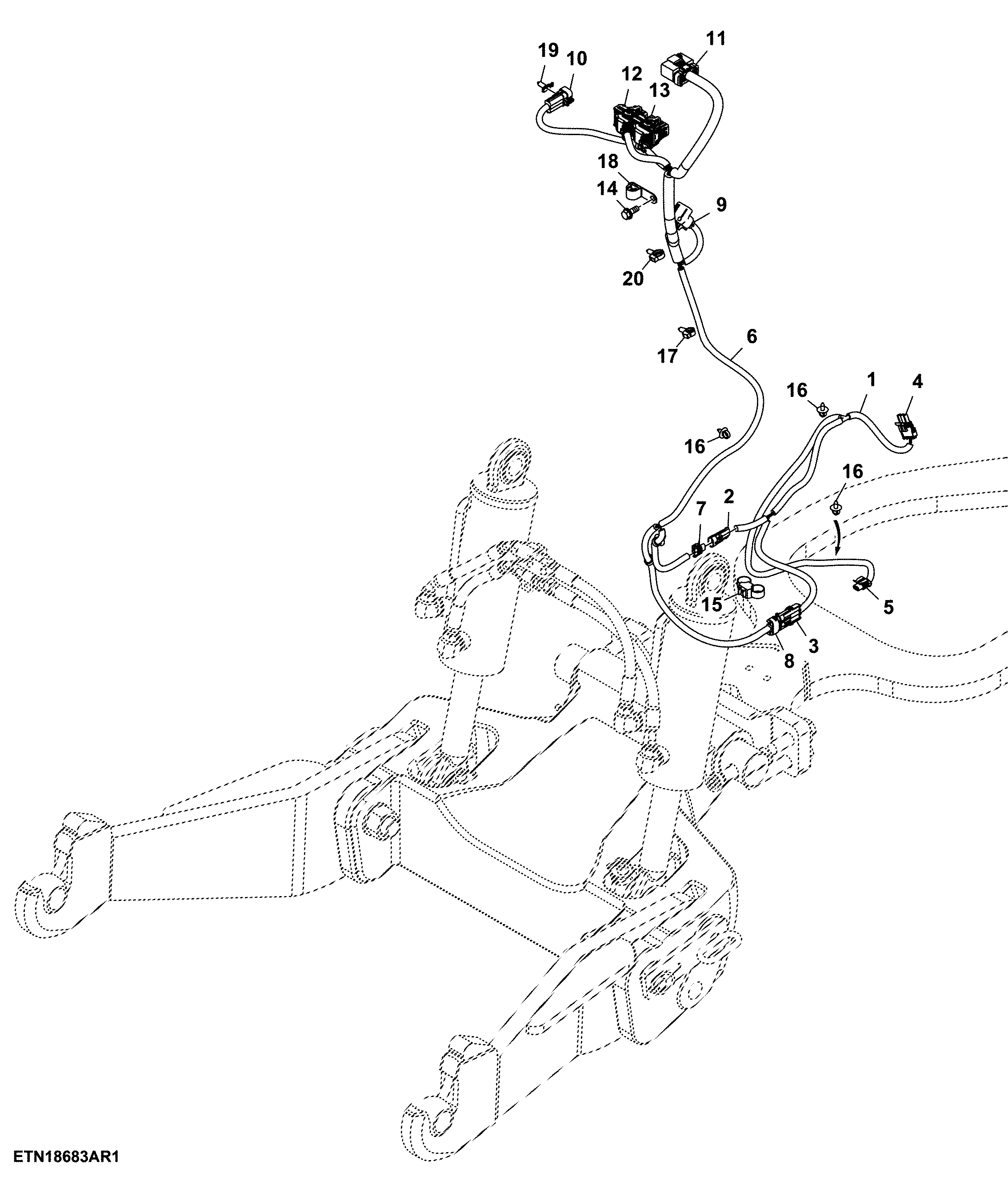

Wiring Harness, Front Controller, TLS™, W/O MID SCV, Front Hitch Ready
