Wiring Harness, Front Controller, TLS™, MID SCV, Front Hitch Ready

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

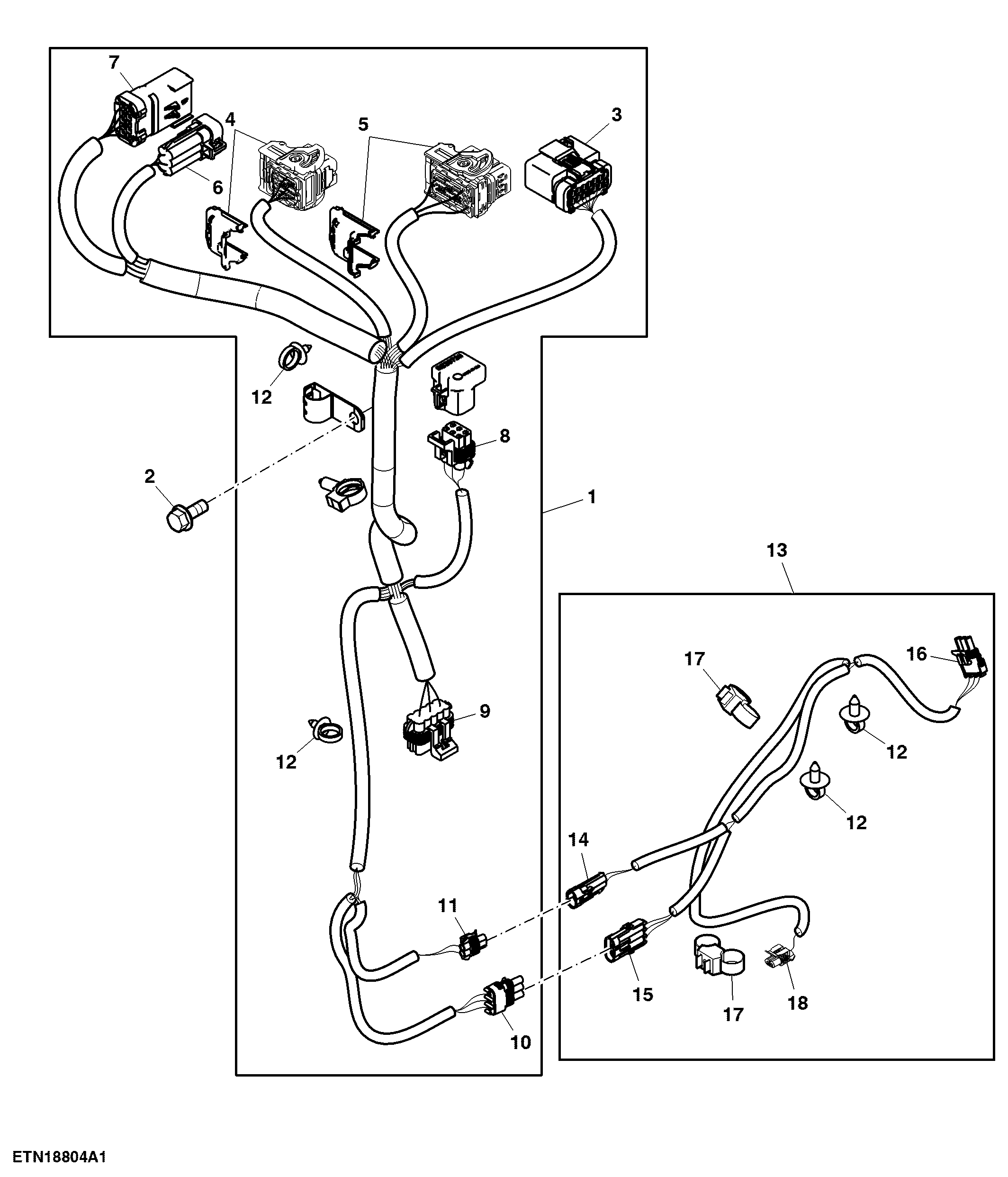

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE319495	1	Wiring Harness	-
2	19M7866	1	Screw	M8 X 20
3	57M10297	1	Elec. Connector Housing	Chassis Harness (TLS™ Ckts) (USE WITH (9) 57M8545_Pins, (2) 57M8565_Pins)
4	57M10611	1	Elec. Connector Housing	Front Controller J1 Connector (USE WITH (12) 57M10330_Pins, (4) 57M10331_Pins)
4	57M10604	1	Elec. Connector Housing	-
5	57M10614	1	Elec. Connector Housing	Front Controller J2 Connector (USE WITH (14) 57M10330_Pins, (8) 57M10331_Pins)
5	57M10613	1	Elec. Connector Housing	-
6	57M7263	1	Elec. Connector Housing	Front Chassis Can Backbone (USE WITH (4) 57M9215_Seals)
6	57M7291	1	Electrical Connector Assy	-
7	57M10300	1	Elec. Connector Housing	Chassis Harness (Midstack Ckts) (USE WITH (4) 57M10525_Pins, (2) 57M10524_Pins, 57M10846_Pin)
8	57M7260	1	Elec. Connector Housing	Can Terminator (Moved From Chassis) (USE WITH (4) 57M7494_Pins, (4) 57M9215_Seals)
8	57M7291	1	Electrical Connector Assy	-
9	L116274	1	Elec. Connector Accessory	Dust Cap
9	57M7262	1	Elec. Connector Housing	Hitch Following (USE WITH (10) R104846_Pins, (10) 57M9215_Seals)
10	RE12364	1	Electrical Connector Assy	TLS™ Position Sensor (USE WITH (3) 57M9219_Seals)
11	57M7254	1	Elec. Connector Housing	TLS™ Damping Solenoid (USE WITH (2) R104846_Pins, (2) 57M9215_Seals)
11	57M7289	1	Elec.Connect Locking Device	-
12	RE258807	7	Tie Band	-
13	RE333964	1	Wiring Harness	ORDER RE587054
13	RE587054	1	Wiring Harness	-
14	57M7256	1	Elec. Connector Housing	TLS™ Damping (USE WITH (2) 57M7252_Pins, (2) 57M9215_Seals)
14	57M7289	1	Elec.Connect Locking Device	-
15	R78054	1	Electrical Connector Assy	TLS™ Position (USE WITH (3) R82928_Pins, (3) 57M9219_Seals)
16	RE12364	1	Electrical Connector Assy	TLS™ Position Sensor (USE WITH (3) R78058_Pins, (3) 57M9219_Seals)
17	R213663	2	Clamp	-
18	57M7254	1	Elec. Connector Housing	TLS™ Damping Valve (USE WITH (2) R104846_Pins, (2) 57M9215_Seals)
18	57M7289	1	Elec.Connect Locking Device	-
