Variable Speed Fan Drive and Accessory, IT4 / T2 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R313458	1	Support	-
2	19M7814	4	Screw	M12 X 50
3	44M7131	2	Dowel Pin	-
4	RE333721	1	Fan Drive	SUB FOR RE287644
5	R254492	6	Cap Screw	-
6	RE262303	2	Hardware Kit	-
7	RE310353	1	Fan	-
8	R309753	1	Shaft	-
9	JD9245	1	Ball Bearing	-
10	40M1872	1	Snap Ring	-
11	R537199	1	Pulley	W/ 85 cc Hydraulic Pump SUB FOR R301528
11	R304929	1	Pulley	W/ 85 cc Hydraulic Pump
11	R537199	1	Pulley	W/ 45 cc or 63 cc Hydraulic Pump SUB FOR R301528
13	RE582500	1	Belt Tensioner	SUB FOR RE243199
14	RE232483	3	Pulley	-
15	R242392	3	Dust Shield	-
16	19M7811	2	Screw	M10 X 90
17	RE326205	1	Compressor	A/C Compressor SUB SE502745
17	SE502745	1	Compressor Reman	REMAN FOR RE326205
18	19M8039	3	Screw	M8 X 80
19	R310956	1	V-Belt	W/ 45 cc or 63 cc Hydraulic Pump
19	R310958	1	V-Belt	W/ 85 cc Hydraulic Pump
19	R310956	1	V-Belt	W/ 85 cc Hydraulic Pump
20	RE288452	1	Shield	-
21	19M7866	11	Screw	M8 X 20
22	19M7804	2	Screw	M10 X 40
23	14M7298	1	Flange Nut	M8
24	40M7046	1	Snap Ring	-
25	R100377	1	Bushing	-
26	19M7809	1	Screw	M10 X 70
27	19M7868	3	Screw	M8 X 30
28	19M7775	2	Screw	M6 X 16
29	R310650	1	Support	-
30	R310824	1	Bracket	-
31	19M7640	4	Cap Screw	M5 X 12
32	RE557921	1	Bracket	SUB FOR R320676 OR RE335812
33	RE239458	1	Ball Bearing	-
34	57M7304	1	Elec. Connector Housing	-
35	R186317	1	Pulley	USE WITH RE210793
36	57M7306	1	Elec.Connect Locking Device	-
37	19M7785	1	Screw	M10 X 25
38	RE553702	1	Regulator	-
39	RE544379	1	Strap Kit	-
12A	RE210793	1	Alternator	ORDER RE555751
12A	SE501834	1	Alternator Reman	REMAN FOR RE210793
12B	RE555751	1	Alternator	-

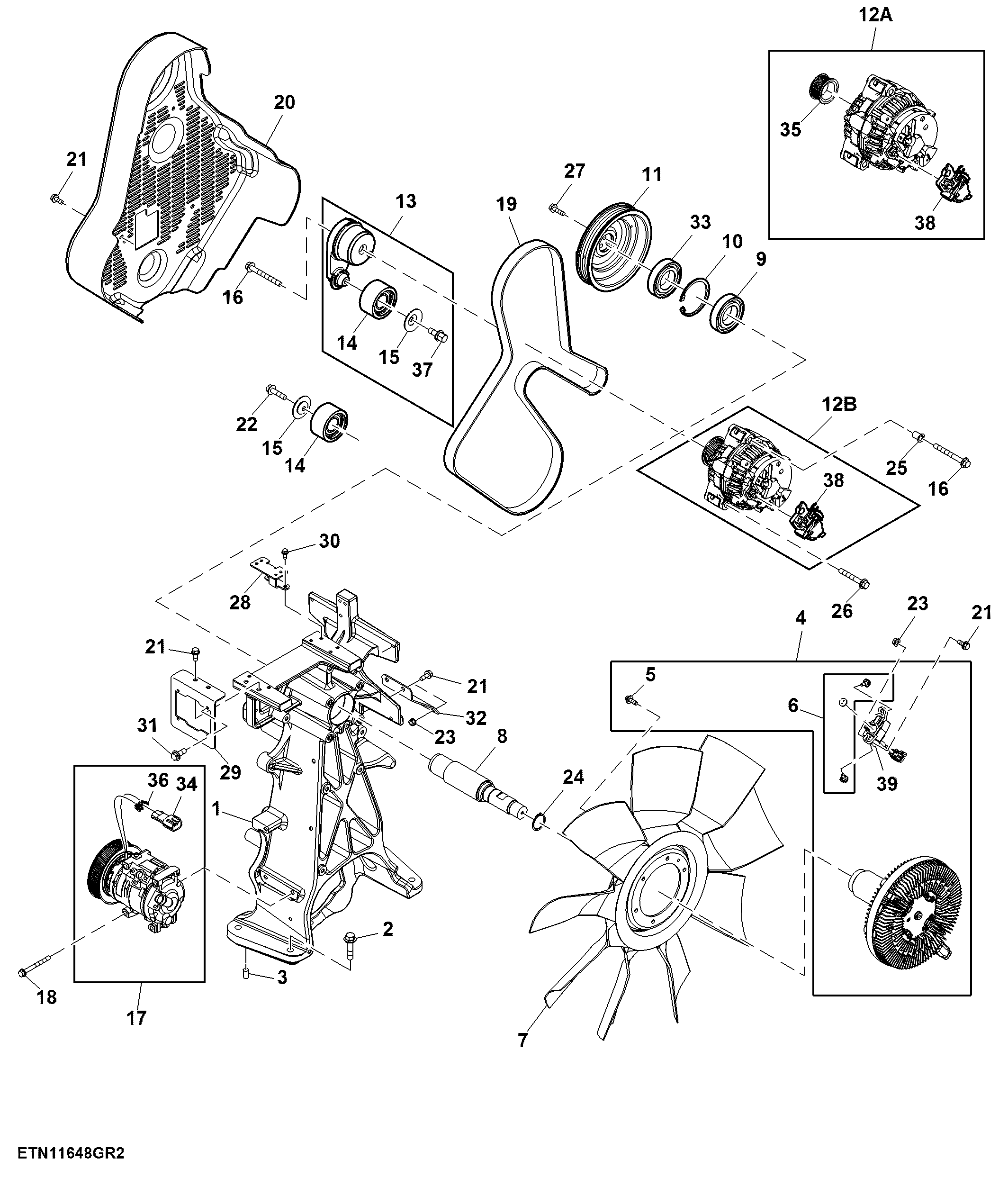

Variable Speed Fan Drive and Accessory, IT4 / T2 Engine

Нет текстового описания
