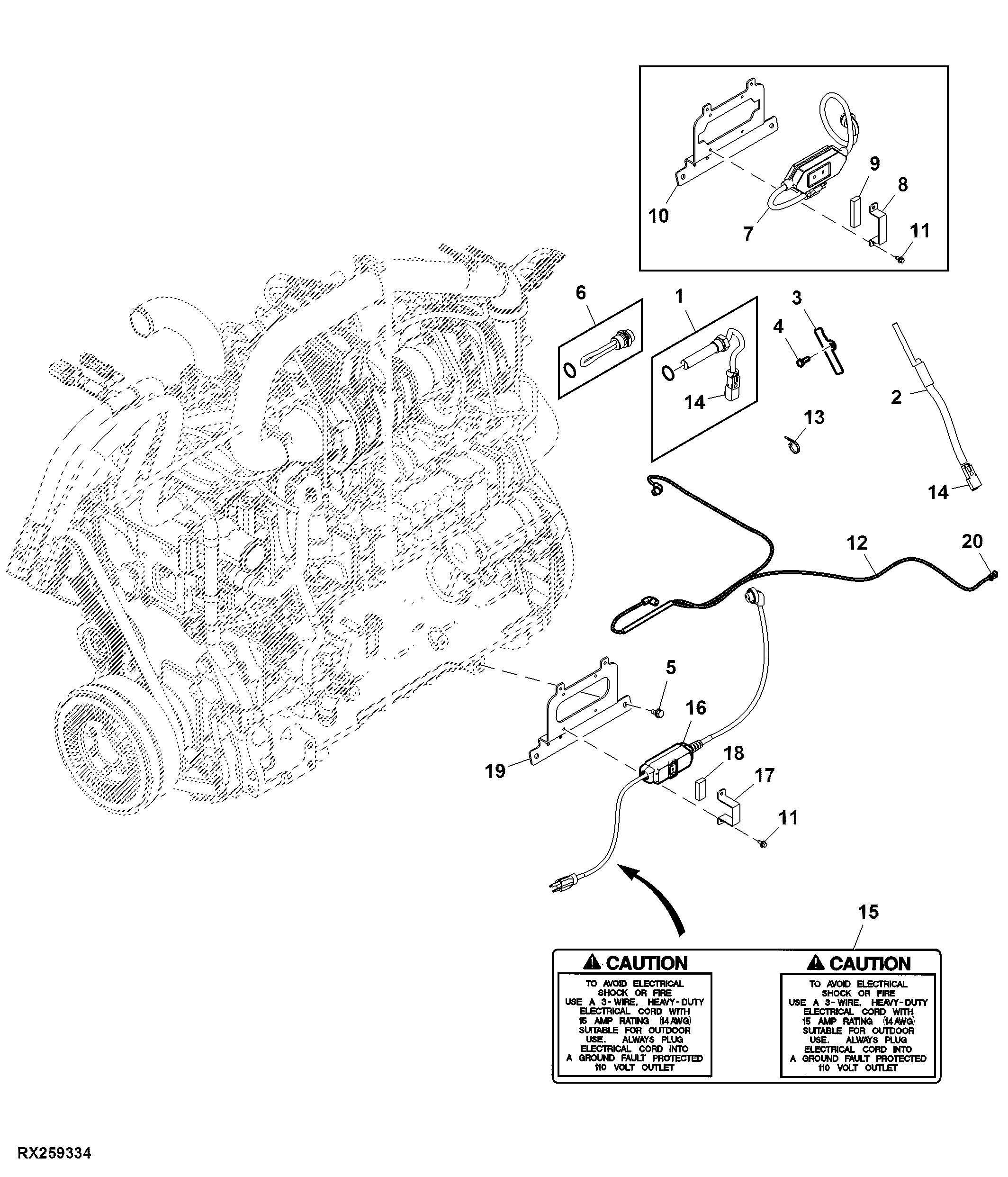

Cold Weather Start Kit, 6.8 L, 110 V, CommandQuad™ and PowrQuad™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE262598	1	Heater	-
2	RE569798	1	Heater	SUB FOR RE262616
3	R544308	1	Clamp	-
4	19M7560	1	Cap Screw	M6 X 16
5	19M7865	2	Screw	M8 X 16
6	RE539167	1	Coolant Heater	-
7	RE153289	1	Module	(Also Order R152283 for Canada, Mexico, American Samoa, Guam, Northern Mariana Islands, Puerto Rico and United States Minor Outlying Islands) ORDER RE573149; ALSO ORDER (2) R551439, (2) R551440 AND R551444, INCLUDES R152283
8	R117185	2	Strap	USE WITH RE153289
9	R117260	2	Isolator	USE WITH RE153289
10	R288910	1	Bracket	(Also Order R152283 for Canada, Mexico, American Samoa, Guam, Northern Mariana Islands, Puerto Rico and United States Minor Outlying Islands) ORDER R551444; ALSO ORDER (2) R551439, (2) R551440 AND RE573149
11	37M7089	4	Screw	M6 X 12
12	RE295896	1	Wiring Harness	-
12	RE574265	1	Wiring Harness	-
13	R44302	13	Tie Band	-
14	57M7533	2	Elec. Connector Housing	-
15	R152283	1	Label	-
16	RE573149	1	Module	(Also Order R152283 for Canada, Mexico, American Samoa, Guam, Northern Mariana Islands, Puerto Rico and United States Minor Outlying Islands) INCLUDES R152283
17	R551439	2	Strap	USE WITH RE573149
18	R551440	2	Isolator	USE WITH RE573149
19	R551444	1	Bracket	-
20	57M8021	2	Electrical Connector Assy	USE WITH RE295896
20	57M8021	1	Electrical Connector Assy	USE WITH RE574265
20	57M8022	2	Elec.Connect Locking Device	-

Cold Weather Start Kit, 6.8 L, 110 V, CommandQuad™ and PowrQuad™
