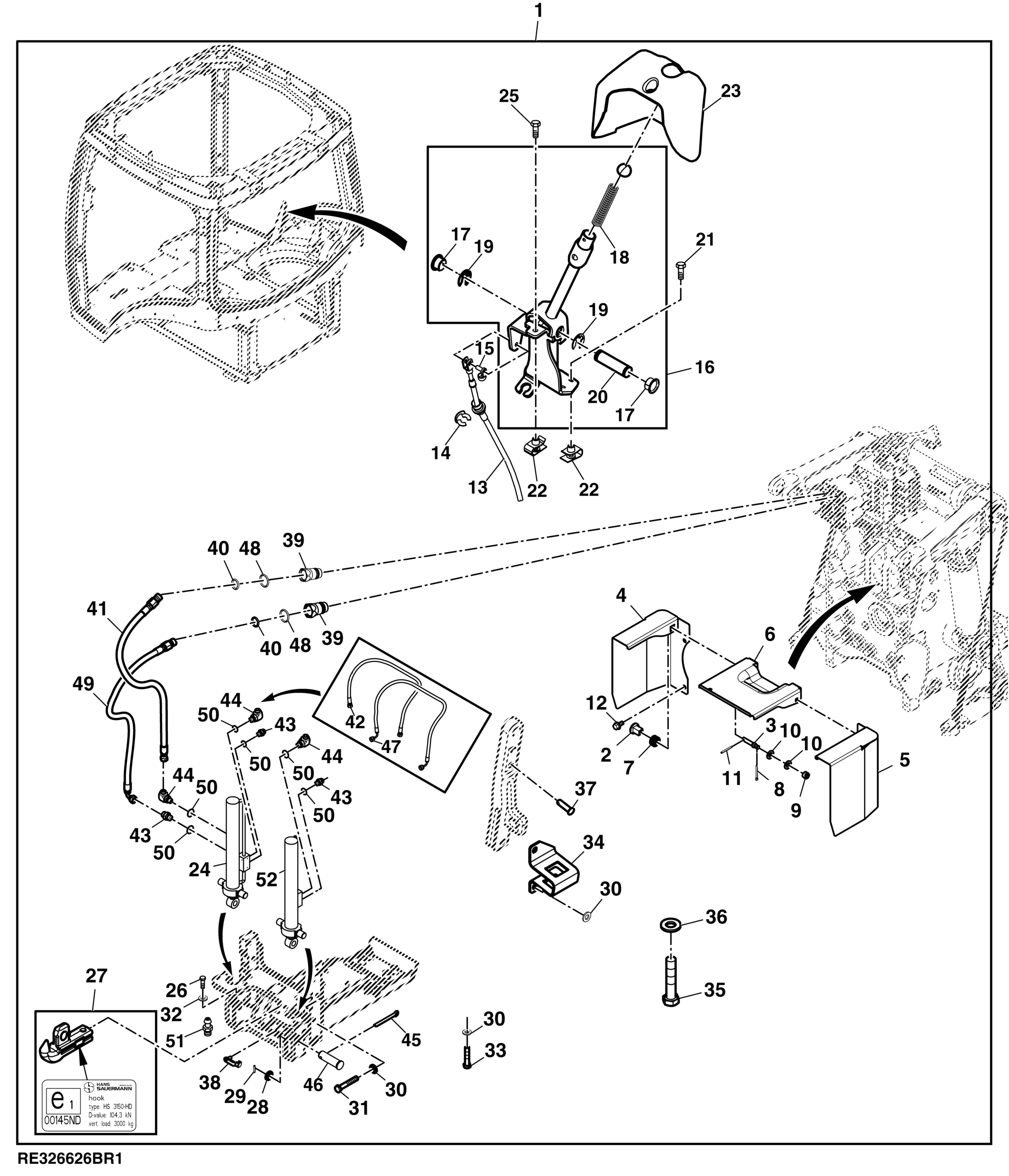

Attachment, Pickup Hitch, W / Sway Blocks

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE326626	1	Hitch Kit	ORDER COMPONENTS
2	R112540	2	Detent	-
3	R112541	2	Pin	-
4	R307631	1	Shield	LH
5	R307632	1	Shield	RH
6	R307633	1	Door	-
7	R135508	2	Compression Spring	-
8	11M7008	2	Cotter Pin	2 X 14 mm, ORDER 11M7009
8	11M7009	2	Cotter Pin	2 X 16 mm
9	14M7462	2	Nut	M8
10	24M7040	2	Washer	11 X 20 X 2 mm
11	34M7213	2	Spring Pin	4 X 35 mm
12	19M7784	4	Screw	M10 X 20
13	RE275769	1	Push Pull Cable	-
14	L219493	2	Snap Ring	-
14	L79076	2	Snap Ring	ORDER L219493
15	45M7101	1	Spring Locking Pin	-
16	RE275764	1	Bracket	-
17	L79672	2	Bushing	-
18	L61447	1	Spring	-
19	40M7051	2	Snap Ring	-
20	L110309	1	Pin Fastener	-
21	19M7862	3	Screw	M6 X 20
22	R134098	4	Nut	-
23	R543775	1	Cover	SUB FOR R275765
24	RE63210	1	Cylinder	LH
25	R151197	1	Screw	-
26	19M7409	8	Cap Screw	M16 X 50
27	R559513	1	Hitch Coupling	-
27	R326563	1	Hitch Coupling	ORDER R559513
28	24M7091	2	Washer	26 X 44 X 4 mm
29	34M7213	2	Spring Pin	4 X 35 mm
30	24M7242	12	Washer	21.400 X 42 X 5 mm
31	19M9137	8	Cap Screw	M20 X 120
32	24M7241	8	Washer	17 X 34 X 4 mm
33	19M9144	4	Cap Screw	M20 X 180
34	R346569	1	Bracket	SUB FOR R327413
35	19M9135	2	Cap Screw	M20 X 100
36	51M7042	6	O-Ring	13.300 X 2.200 mm
37	45M7070	1	Pin Fastener	20 X 70 mm
38	45M7080	1	Spring Locking Pin	-
39	AR94522	2	Hydr. Quick Coupler Plug	-
40	T77613	6	O-Ring	-
41	RE206435	1	Hydraulic Hose	-
42	RE199316	1	Hydraulic Hose	-
43	38H5037	5	Adapter Fitting	-
44	38H5035	1	Elbow Fitting	-
45	11M7030	2	Cotter Pin	5 X 40 mm
46	R248075	2	Pin Fastener	-
47	RE199330	1	Hydraulic Hose	-
48	R26375	2	O-Ring	-
49	RE206434	1	Hydraulic Hose	-
50	51M7042	6	O-Ring	13.300 X 2.200 mm
51	58M5574	2	Lubrication Fitting	-
52	RE63209	1	Cylinder	RH
