Открытый узел

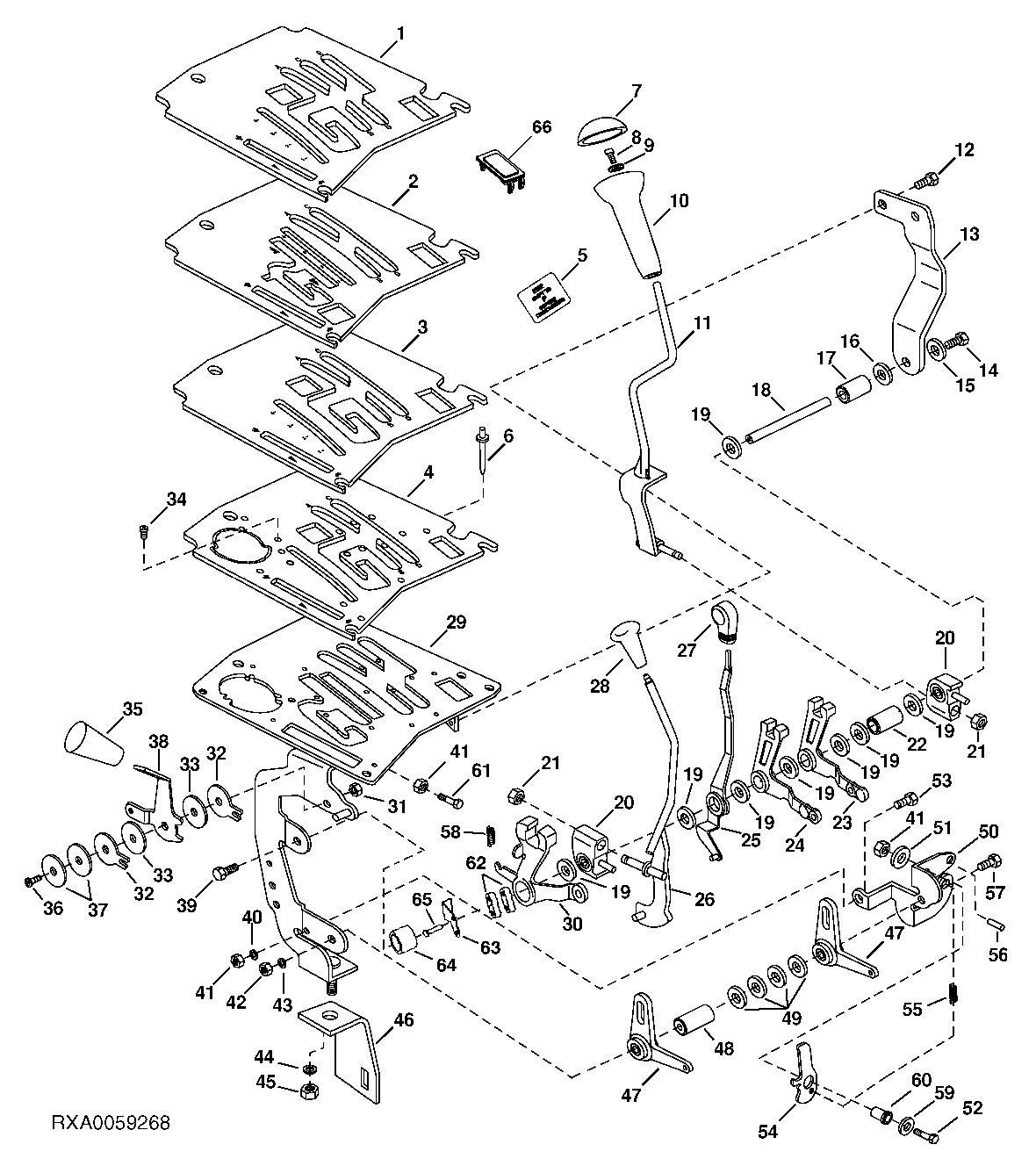

Shifter Unit, Three Lever Shift (010428 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R156059	1	Label	(20 Speed) (W/O Left Hand Reverser)
1	R156905	1	Label	(20 Speed) (W/ LEFT HAND REVERSER) SUB FOR R134257
2	R156058	1	Label	(16 Speed) (W/O Left Hand Reverser) SUB FOR R136252
3	R156906	1	Label	(16 Speed) (W/ LEFT HAND REVERSER) SUB FOR R134256
4	R134258	1	Guide	(16 Speed) (W/ LEFT HAND REVERSER)
4	RE156071	1	Control Lever	(16 Speed) (W/O Left Hand Reverser)
4	R134704	1	Panel	(20 Speed) (W/O Left Hand Reverser)
4	R134259	1	Guide	(20 Speed) (W/ LEFT HAND REVERSER)
4	RE156072	1	Pin	(20 Speed) (W/O Left Hand Reverser)
5	R114802	1	Label	-
6	R125955	1	Rivet	-
7	L113018	1	Insert	-
8	19M7560	1	Cap Screw	M6 X 16
9	24M7088	1	Washer	6.600 X 12 X 1.600 mm
10	L77805	1	Knob	-
11	RE69713	1	Lever	-
12	19M7162	2	Cap Screw	M8 X 16
13	R134452	1	Bracket	-
14	19M7163	1	Cap Screw	M8 X 25
15	12M7065	2	Lock Washer	8 mm
16	24H1288	1	Washer	9/32" X 1" X 1/16"
17	28H1933	1	Bushing	0.824" X 1.050" X 1-1/8"
18	R134440	1	Shaft	Out
18	R128333	1	Shaft	In
19	24H1274	7	Washer	49/64" X 1-1/4" X 0.048"
20	RE69505	2	Pivot	-
21	14M7400	2	Lock Nut	M10
22	M86470	1	Spacer	-
23	RE71279	1	Arm	-
24	RE69709	1	Arm	(16 Speed)
25	RE69383	1	Lever	INCLUDES JD9954 AND 24H1400
25	R134408	1	Extension Spring	-
26	RE69289	1	Lever	-
27	R161384	1	Knob	SUB FOR R151607
28	R161381	1	Knob	SUB FOR R153874
29	RE69450	1	Guide	-
29	RE69252	1	Guide	(W/ LEFT HAND REVERSER)
30	RE69506	1	Arm	-
30	RE70972	1	Arm	SUB FOR RE69330
31	14M7152	1	Nut	M10

Shifter Unit, Three Lever Shift (010428 - )
