Valve Kit, Loader, 1st / 2nd MID-SCV, W / TLS™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE329085	1	Selective Control Valve	-
2	RE308272	1	Valve Stack	-
3	RE310807	1	Valve Stack	-
4	RE322694	1	Stud Kit	-
5	RE308339	1	Valve Stack	-
6	RE588377	2	Selective Control Valve	SUB FOR RE580228 OR RE308285
7	RE582808	2	Seal Kit	SUB FOR RE279692
8	RE279693	2	Valve Kit	-
9	RE279694	2	Cap Kit	-
10	RE279695	2	Spring Kit	-
11	RE279696	6	Plug Kit	-
12	RE279697	4	Valve Kit	Load Check Valve
13	RE279699	2	Spring Kit	-
14	RE310260	1	Manifold	-
15	RE206382	4	Breakaway Coupler	-
16	R318154	1	Cover	Midstack Coupler, XI Extend
17	R318165	1	Cover	Midstack Coupler, XI Retract
18	R318169	1	Cover	Midstack Coupler, XII Extend
19	R318171	1	Cover	Midstack Coupler, XII Retrac
20	38H5014	2	Adapter Fitting	-
21	19M8125	3	Screw	M8 X 140
22	T107035	2	O-Ring	-
23	38H5025	1	Elbow Fitting	-
24	T77814	1	O-Ring	-
25	51M7041	1	O-Ring	11.300 X 2.200 mm
26	RE264764	1	Check Valve	-
27	RE317109	1	Line	-
28	AL206434	1	Check Valve	-
29	14M7517	1	Lock Nut	M10
30	R319151	1	Cover	-
31	R319154	1	Cover	-
32	R319153	1	Cover	-
33	RE319155	1	Bracket	-
34	19M7785	3	Screw	M10 X 25
35	19M7775	2	Screw	M6 X 16
36	19M7864	2	Screw	M8 X 12
37	N154080	3	Tee Fitting	-
38	R319241	3	Hose	-
39	L154628	4	Cap	-
40	TY22551	1	Bulk Hose	-
41	R319249	1	Hose	-
42	RE316707	1	Wiring Harness	-
43	RE319495	1	Wiring Harness	-
44	R130951	1	Fitting	-
45	R540643	1	Valve	-
46	T77613	1	O-Ring	-
47	T76938	2	O-Ring	-
48	51M7047	2	O-Ring	23.600 X 2.900 mm

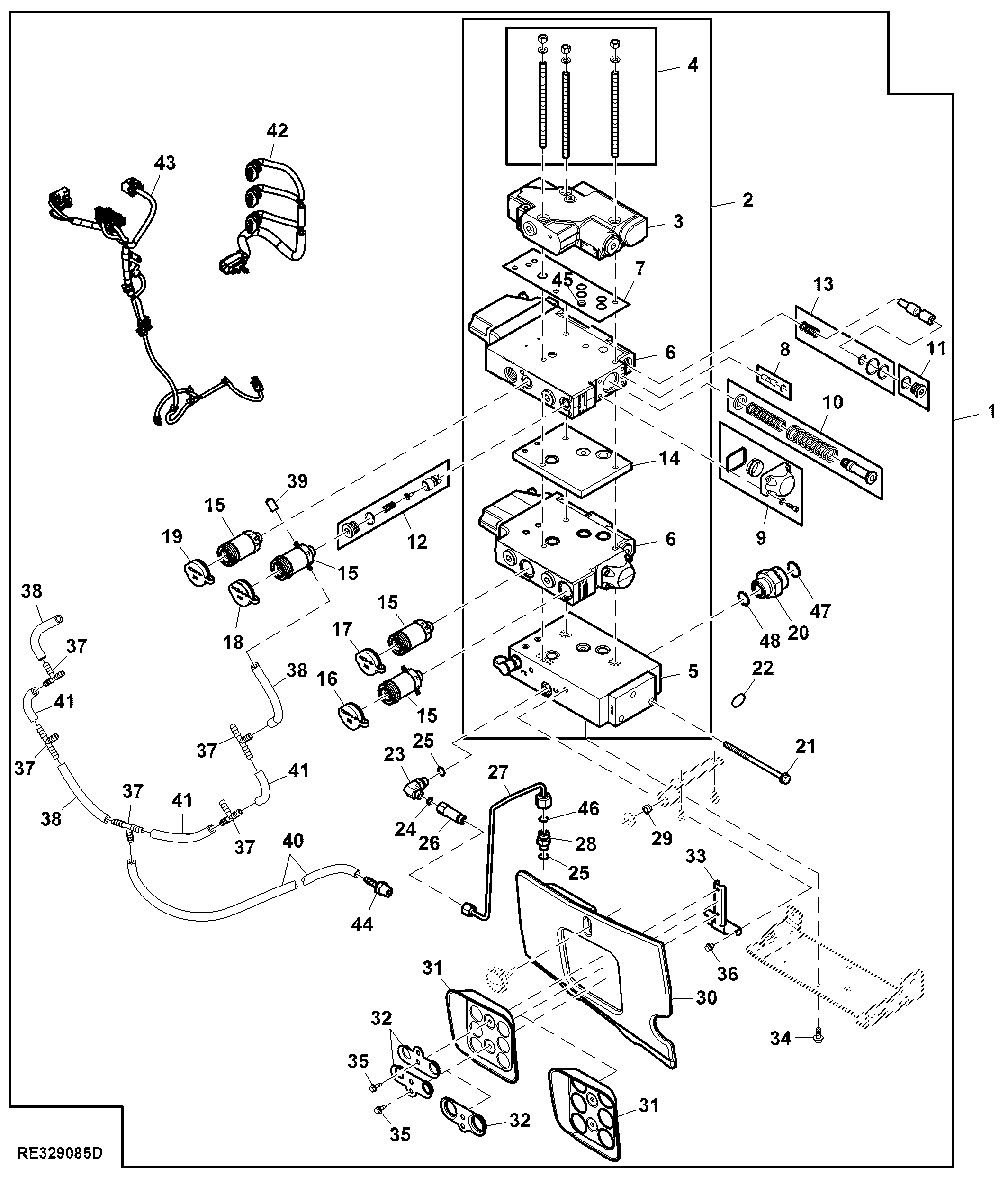

Valve Kit, Loader, 1st / 2nd MID-SCV, W / TLS™
