Открытый узел

Selective Control Valve and Breakaway Coupler

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE580227	1	Selective Control Valve	ORDER RE588375
1	RE588375	1	Selective Control Valve	-
1	RE308284	1	Selective Control Valve	ORDER RE588375
2	RE279696	1	Plug Kit	-
3	RE279699	1	Spring Kit	USE WITH RE308284
3	RE568186	1	Spring Kit	USE WITH RE580227 OR RE588375
4	RE279693	1	Valve Kit	USE WITH RE308284
5	RE279695	1	Spring Kit	USE WITH RE308284
5	RE568184	1	Spring Kit	USE WITH RE580227 OR RE588375
6	RE279694	1	Cap Kit	-
8	R267667	2	Cap	-
9	RE559661	1	Breakaway Coupler	High Profile INCLUDES RE256693 And RE271733; SUB FOR RE262017
10	RE289060	1	Cover	Number VI, Gray, SCV Coupler ORDER RE574945
10	RE289059	1	Cover	Number V, Violet, SCV Coupler ORDER RE574944
10	RE289058	1	Cover	Number IV, Black, SCV Coupler ORDER RE574943
10	RE289057	1	Cover	Number III, Brown, SCV Coupler ORDER RE574942
10	RE289055	1	Cover	Number I, Green, SCV Coupler ORDER RE574941
10	RE289056	1	Cover	Number II, Blue, SCV Coupler ORDER RE574660
11	R10093	4	O-Ring	-
12	RE272882	2	Tube	Inter-Coupler Drain
13	RE559660	1	Breakaway Coupler	Mid Profile INCLUDES RE256693 And RE271733; SUB FOR RE262016
14	RE559659	1	Breakaway Coupler	Low Profile INCLUDES RE256693 And RE271733; SUB FOR RE262015
15	RE271733	1	Lever	-
16	RE281895	1	Seal Kit	-
17	R267668	2	Hose Fitting	-
18	24M7095	4	Washer	8.400 X 15 X 1.600 mm
19	R266977	4	Socket Head Screw	-
20	21M7500	2	Screw	M6 X 12
21	R309935	1	Retainer	ORDER RE574941
22	R209748	2	Seal	ORDER RE574941
23	RE574695	2	Cover	(1st SCV/ Green) SUB FOR R289061
23	RE575267	2	Cover	(2nd SCV/ Blue) SUB FOR R289062
23	RE575268	2	Cover	(3rd SCV/ Brown) SUB FOR R289063
23	RE575269	2	Cover	(4th SCV/ Black) SUB FOR R209409
23	RE575270	2	Cover	(5th SCV/ Violet) SUB FOR R289065
24	R124009	2	Bushing	-
25	R124008	2	Spring	-
26	19M8875	2	Screw	M6 X 25
27	-	1	Part 42	-
28	RE582808	1	Seal Kit	SUB FOR RE279692
29	RE577560	2	Breakaway Coupler	SUB FOR RE256693
30	R107859	20	Ball	-
31	R222761	2	O-Ring	-
32	-	1	Part 47	-
33	R257100	2	Snap Ring	-
34	RE186599	2	Seal	-
35	R186598	2	Snap Ring	-
36	RE186600	2	Seal	-
37	L200313	1	Plug	(6th SCV/ Gray)
37	L170555	1	Plug	(1st SCV/ Green)
37	L170556	1	Plug	(2nd SCV/ Blue)
37	L170557	1	Plug	(3rd SCV/ Brown)
37	L102157	1	Plug	(4th SCV/ Black)
37	L200312	1	Plug	(5th SCV/ Violet)
38	R207188	1	Ring	-
39	R540643	1	Valve	-
40	R27564	1	O-Ring	-
41	19M9178	2	Screw	M6 X 30
42	-	2	Part 62	-
43	-	2	Part 63	-
44	-	2	Part 68	(5th SCV/ Violet) ORDER RE574944
44	-	2	Part 65	(2nd SCV/ Blue) ORDER RE574660
44	-	2	Part 66	(3rd SCV/ Brown) ORDER RE574942
44	-	2	Part 67	(4th SCV/ Black) ORDER RE574943
44	-	2	Part 64	(1st SCV/ Green) ORDER RE574941
44	-	2	Part 69	(6th SCV/ Gray) ORDER RE574945
45	19M8648	2	Screw	M6 X 16
46	L214847	2	Grommet	-
47	R552383	1	Retainer	-
48	RE574944	1	Cover	Number V, Violet, SCV Coupler
48	RE574660	1	Cover	Number II, Blue, SCV Coupler
48	RE574942	1	Cover	Number III, Brown, SCV Coupler
48	RE574943	1	Cover	Number IV, Black, SCV Coupler
48	RE574941	1	Cover	Number I, Green, SCV Coupler
48	RE574945	1	Cover	Number VI, Gray, SCV Coupler
49	RE567656	1	Electronic Control Unit	USE WITH RE308284
49	RE567604	1	Electronic Control Unit	USE WITH RE580227
49	RE588373	1	Electronic Control Unit	USE WITH RE588375
50	RE580941	1	Valve Kit	USE WITH RE580227 OR RE308284
50	RE588372	1	Valve Kit	USE WITH RE588375
51	RE343006	1	Wiring Harness	-
52	57M9498	1	Elec. Connector Housing	-
53	57M9500	1	Elec. Connector Accessory	-
7A	RE279697	2	Valve Kit	Load Check Valve USE WITH RE308284
7A	RE568185	2	Check Valve	Load Check Valve ORDER RE591268
7B	RE591268	2	Check Valve	Load Check Valve USE WITH RE580227 OR RE588375

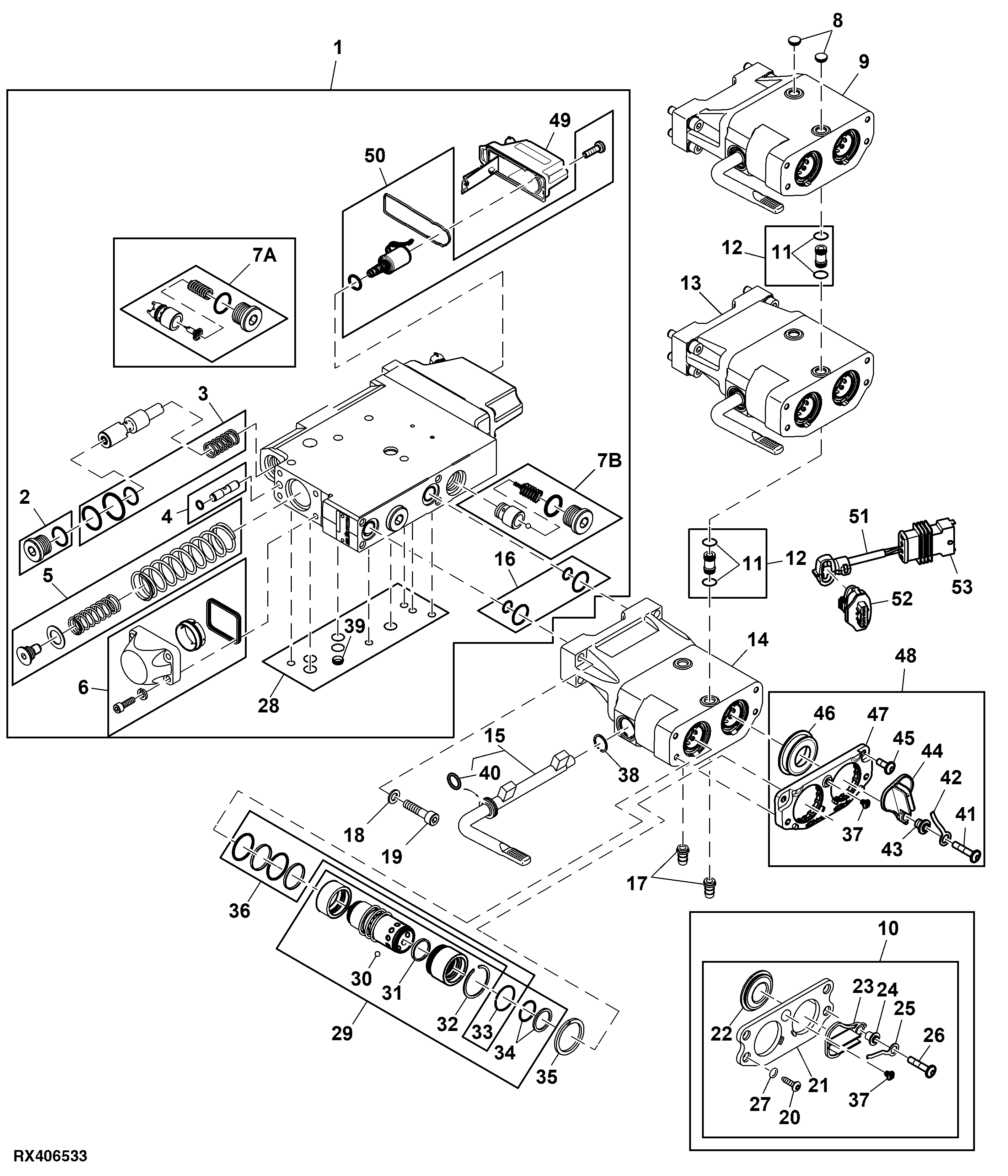

Selective Control Valve and Breakaway Coupler
