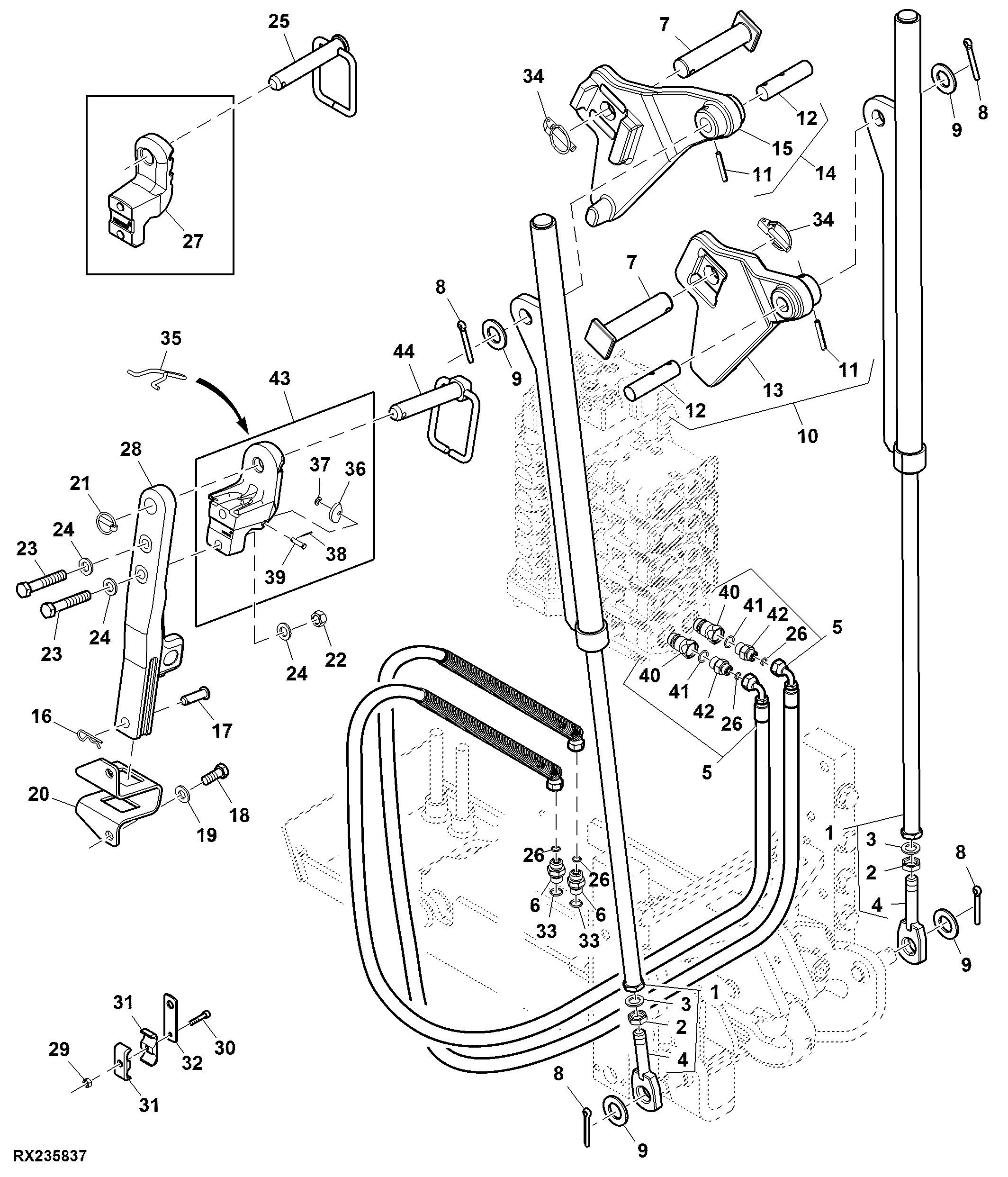

Hitch, Pickup, Stabilizer, Category III, Drawbar, (2/2) (008904 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE564166	2	Lift Link	SUB FOR RE345995
2	-	2	Part 2	USE WITH RE564166
3	12M7136	2	Lock Washer	18 mm
4	R542241	2	Link End	-
5	RE234138	2	Hydraulic Hose	Pickup Hitch
6	38H5037	2	Adapter Fitting	-
7	R345994	2	Pin	ORDER (2) R552395
7	R552395	2	Pin	-
8	11M7056	4	Cotter Pin	8 X 50 mm
9	24M7086	4	Washer	28 X 50 X 4 mm
10	RE564167	1	Extension	SUB FOR RE345992, ORDER RE574674
10	RE574674	1	Extension	-
11	34M7049	2	Spring Pin	8 X 50 mm
12	R542240	2	Pin	-
13	R345993	1	Extension	USE WITH RE564167, ORDER R552394
13	R552394	1	Extension	USE WITH RE574674
14	RE564165	1	Extension	SUB FOR RE345989, ORDER RE574673
14	RE574673	1	Extension	-
15	R345990	1	Extension	USE WITH RE564165, ORDER R552393
15	R552393	1	Extension	USE WITH RE574673
16	A3581R	1	Spring Locking Pin	-
17	45M7070	1	Pin Fastener	20 X 70 mm
18	19M9132	2	Cap Screw	M20 X 50
19	24M7242	2	Washer	21.400 X 42 X 5 mm
20	R346569	1	Bracket	-
21	AR62150	1	Quick Lock Pin	-
22	R114125	1	Nut	-
23	R111434	2	Cap Screw	-
24	R52006	3	Washer	-
25	RE150871	1	Pin Fastener	USE WITH R537390
26	T77613	4	O-Ring	-
27	R537390	1	Strap	ORDER RE566117 AND RE570372
28	R333147	1	Drawbar	-
29	14M7272	1	Nut	M6
30	19M8263	1	Screw	M6 X 30
31	L39905	2	Clamp	-
32	L100459	1	Strap	-
33	51M7042	2	O-Ring	13.300 X 2.200 mm
34	99M7047	2	Quick Lock Pin	SUB FOR APPL RE220130
35	R546661	1	Lever	-
36	R542105	1	Lock Plate	-
37	24M7040	1	Washer	11 X 20 X 2 mm
38	11M7082	1	Cotter Pin	2.500 X 25 mm
39	R545342	1	Pin Fastener	-
40	AR94522	2	Hydr. Quick Coupler Plug	-
41	R26375	2	O-Ring	-
42	38H1171	2	Adapter Fitting	-
43	RE566117	1	Strap	-
44	RE570372	1	Pin Fastener	USE WITH RE566117

Hitch, Pickup, Stabilizer, Category III, Drawbar, (2/2) (008904 - )

Нет текстового описания
