Cab Wiring Harness Connectors, PowrQuad™, CommandQuad™ (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
28	-	1	Part 1	AC and Roof Harness (USE WITH (4) 57M10107_Pins, (4) 57M10108_Pins, (14) 57M10106_Pins)
29	57M8944	1	Elec. Connector Housing	Hitch POD (USE WITH (27) 57M8621_Pins, (26) 57M7400_Seals, (2) 57M7399_Seals)
29	57M8943	1	Elec.Connect Locking Device	-
30	57M8072	1	Elec. Connector Housing	EHSCV (USE WITH (27) 57M8621_Pins, (26) 57M7400_Seals)
30	57M8083	1	Elec. Connector Accessory	-
31	57M7262	1	Elec. Connector Housing	MWG Connector (USE WITH (8) R104846_Pins, (9) 57M9215_Seals
31	57M8907	1	Elec.Connect Locking Device	-
32	-	1	Part 8	Splice Pack 1 (USE WITH (9) 57M7258_Seals, (13) 57M8295_Pins, (16) 57M8895_Pins)
33	F015262	1	Electrical Connector Assy	Sub Woofer Connector
34	57M9226	1	Elec. Connector Seal	-
34	57M7765	1	Lock Washer	-
34	57M8616	1	Elec. Connector Housing	Chassis Harness Connector 1 (USE WITH (11) N282069_Pins, (3) R78068_Pins, (24) 57M8164_Pins, (4) 57M8260_Pins, (2) N282068_Pins)
35	57M8805	1	Elec. Connector Housing	Joystick Connector (USE WITH (16) 57M7548_Pins)
36	57M8857	1	Elec. Connector Housing	Joystick Connector (USE WITH (5) 57M8862_Pins, (16) 57M8863_Pins)
36	57M8859	1	Elec.Connect Locking Device	-
36	57M8860	1	Elec.Connect Locking Device	-
37	57M8113	1	Electrical Connector Assy	Chassis Harness Connector 2
37	57M7765	1	Lock Washer	-
37	57M9226	1	Elec. Connector Seal	-
38	57M9804	1	Elec. Connector Housing	Left External Switchs (USE WITH (28) 57M9813_Pins)
39	57M7264	1	Elec. Connector Housing	Right Fender Harness Connector (USE WITH (10) 57M7252_Pins, 57M7258_Pins, (14) 57M10106_Pins, (9) 57M9215_Seals)
39	57M7283	1	Elec.Connect Locking Device	-
40	57M9817	1	Elec. Connector Housing	Video
41	57M9821	1	Elec. Connector Housing	Dust Cap Video
42	57M10615	1	Elec. Connector Housing	MECA Cab Controller (USE WITH (99) 57M10330_Pins, (15) 57M10331_Pins)
42	57M10401	1	Elec. Connector Accessory	-
43	57M10214	1	Elec. Connector Housing	MECA Cab Controller (USE WITH (2) 57M10332_Pins,(2) 57M10218_Seals, (15) 57M10331_Pins, (99) 57M10330_Pins)
43	57M10401	1	Elec. Connector Accessory	-
44	57M10329	1	Elec. Connector Housing	MECA Cab Controller (USE WITH (2) 57M10332_Pins, (2) 57M10218_Seals, (4) 57M10217_Pins, (4) 57M10219_Seals, (15) 57M10331_Pins, (99) 57M10330_Pins)
44	57M10401	1	Elec. Connector Accessory	-
45	57M9175	1	Elec. Connector Housing	PAPTOS Power Connector (USE WITH (3) 57M8565_Pins)
46	57M10305	1	Elec. Connector Housing	Paptos Power Dust Cap
47	57M9796	1	Elec. Connector Housing	GYRO and Secondary Brake Leads (USE WITH (28) 57M9813_Pins)
48	57M9792	1	Elec. Connector Housing	GYRO and Secondary Brake Leads
49	57M7264	1	Elec. Connector Housing	Left Fender Harness Connector (USE WITH (10) 57M7252_Pins, (9) 57M7258_Seals, (9) 57M9215_Seals)
49	57M7283	1	Elec.Connect Locking Device	-
50	57M9804	1	Elec. Connector Housing	Left External Switchs (USE WITH (28) 57M9813_Pins)
51	R78054	1	Electrical Connector Assy	Convenience Outlet (USE WITH (6) R78061_Pins, (6) 57M9218_Seals)
52	57M7784	1	Electrical Connector Assy	Left Extremity Light (USE WITH (4) 57M7500_Pins)
53	-	1	Part 40	Left Side Light Power
54	-	1	Part 41	Left Side Lighter Ground (USE WITH U46662_Pins)

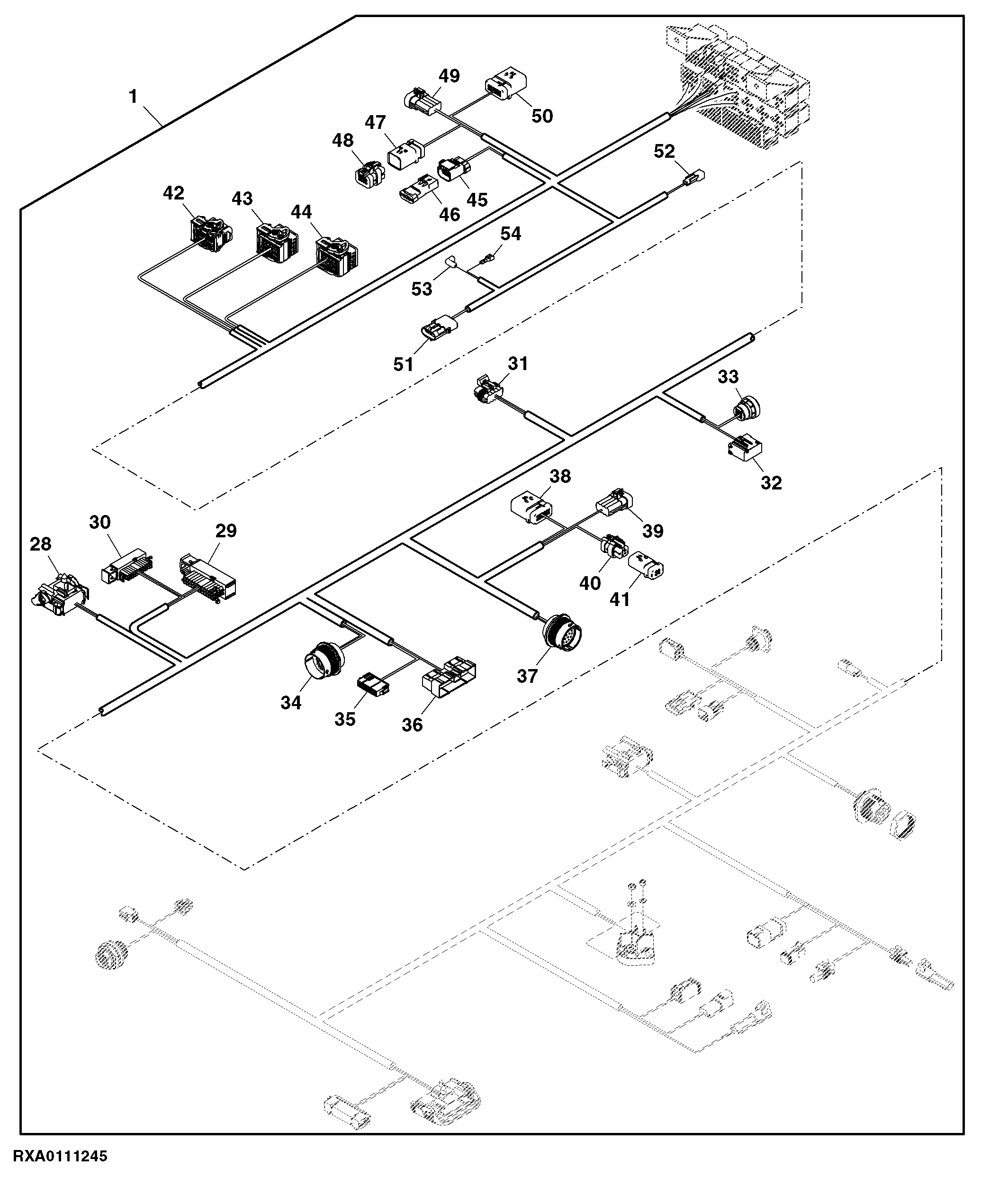

Cab Wiring Harness Connectors, PowrQuad™, CommandQuad™ (2/2)
