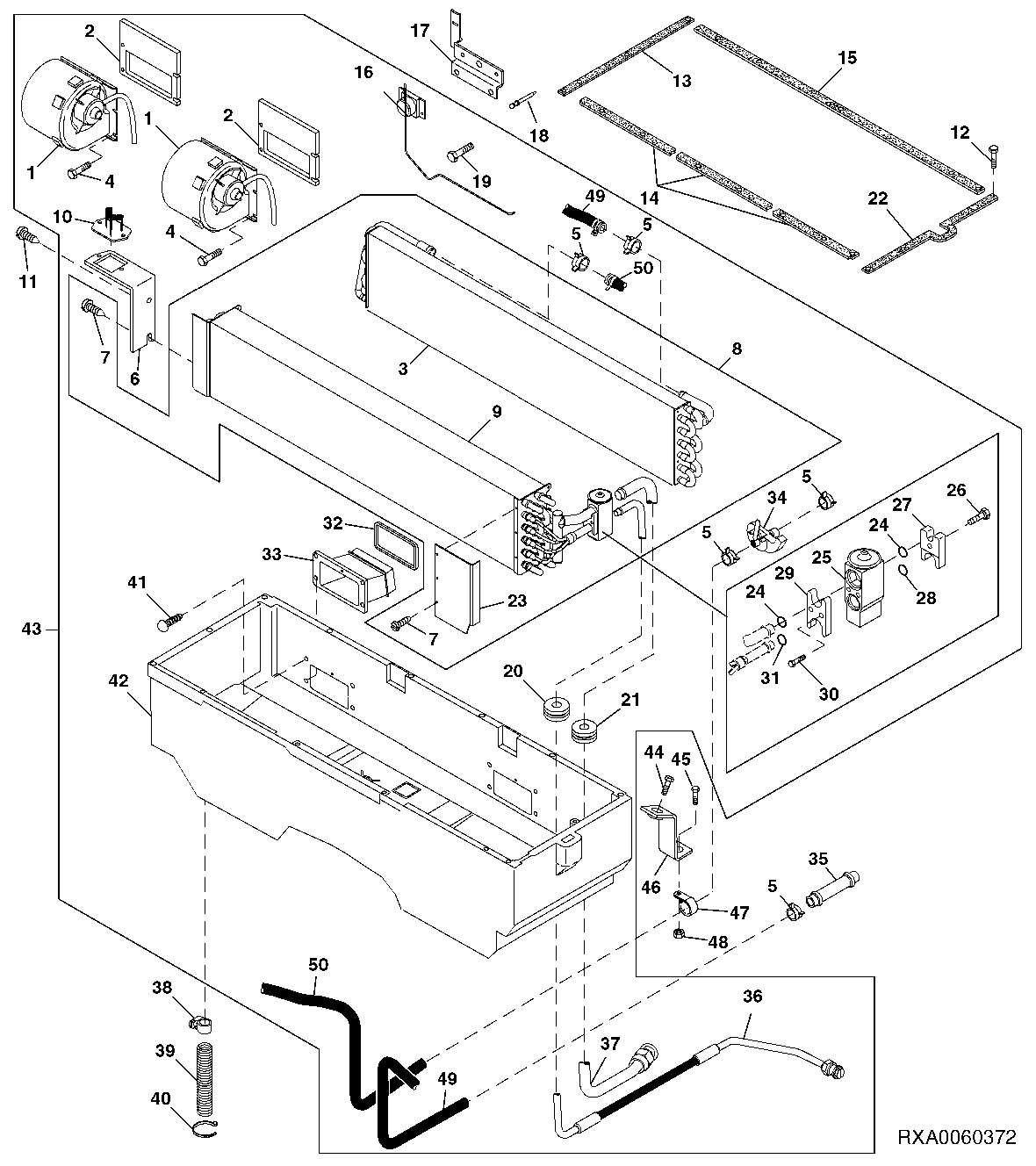

HEATER / A/C-UNIT SPLIT CORE (RE175948)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL110881	2	Blower	(SUB FOR AL80700)
2	R115928	2	Insulator	-
3	AL154342	1	Core	-
4	19M7863	8	Screw	M6 X 25
5	R117721	5	Clamp	-
6	R171328	1	Bracket	-
7	37M7073	1	Screw	-
8	RE241384	1	Core	(SUB FOR RE180243)
9	RE176560	1	Evaporator	(SUB RE241383)
10	RE217662	1	Resistor Network	(SUB FOR RE171329)
10	16M7101	2	Rivet	5 mm
11	19M7863	2	Screw	M6 X 25
12	37H164	14	Screw	-
13	R106181	1	Gasket	-
14	R106288	1	Gasket	-
15	R106287	1	Gasket	-
16	RE198074	1	Temperature Switch	(AIR CONDITIONING DEICING SWITCH) (SUB FOR AH144020)
17	L77843	1	Bracket	-
18	M67899	2	Rivet	-
19	19M7372	2	Cap Screw	M5 X 16
20	L76256	1	Grommet	-
21	R132031	1	Grommet	-
22	R114676	1	Gasket	-
23	R180007	2	Bracket	-
24	R33259	1	O-Ring	-
25	RE283957	1	Valve	(SUB FOR RE57575 OR RE174764)
26	19M8666	1	Screw	M6 X 16
27	R125223	1	Plate	FRONT
28	R10093	2	O-Ring	-
29	L77943	1	Plate	REAR
30	PT11778	2	Bolt	-
31	R113050	1	O-Ring	-
32	R110949	2	Gasket	-
33	R107923	2	Air Duct	-
34	AT193500	1	Hand Operated Valve	-
35	R118305	1	Coupling	-
36	RE174646	1	Line	-
37	RE65804	1	Line	-
38	AR48236	2	Clamp	-
39	R106180	2	Conduit	-
40	R44302	2	Tie Band	-
41	R117722	11	Clamp	-
42	RE58059	1	Housing	-
43	RE217823	1	Module	(SUB FOR RE175948) (SUB RE241387) (SUB COMPONENT)
44	19M7286	1	Cap Screw	M6 X 25
45	19M7867	1	Screw	M8 X 25
46	RE58061	1	Support	-
47	T38377	1	Clamp	-
48	14M7298	1	Flange Nut	M8
49	-	1	Part 50	(INLET) 27.5" (700 MM), (MAKE FROM TY22328)
50	-	1	Part 51	(OUTLET) 27.5" (700 MM), (MAKE FROM TY22328)

HEATER / A/C-UNIT SPLIT CORE (RE175948)
