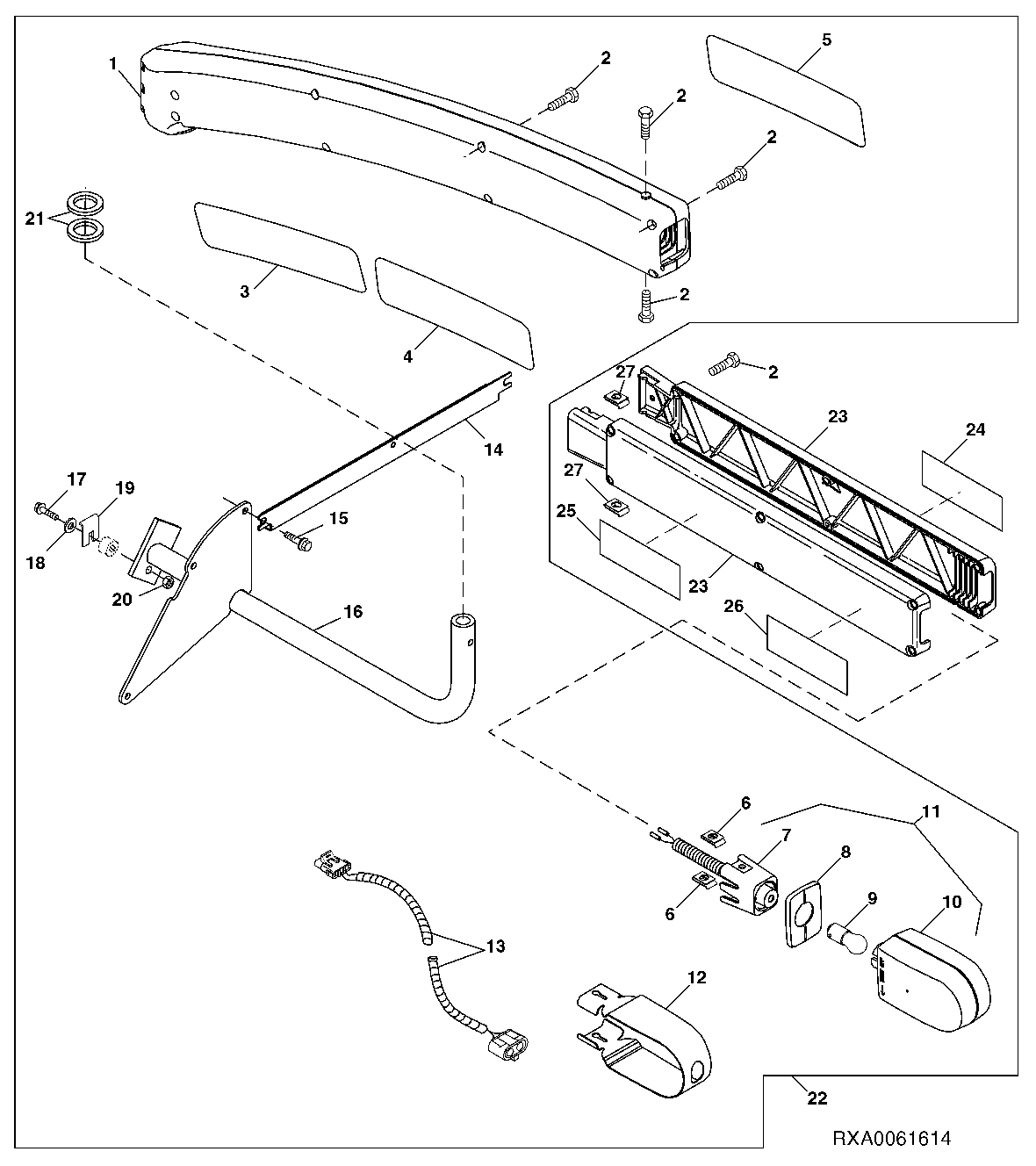

EXTREMITY WARNING LAMP KIT (LATE DESIGN)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE219769	2	Arm	(SUB FOR RE172005, RE200287 OR RE182890)
2	21M7303	1	Screw	M5 X 20
2	37M7372	1	Screw	(USE WITH RE219769)
3	R244856	2	Label	(ORANGE) (SUB FOR R171990 OR R213355)
4	R213356	2	Label	(RED) (SUB FOR R171991)
5	R213358	2	Label	(YELLOW) (SUB FOR R171992)
6	R117892	4	Nut	SUB FOR R106529
7	RE199919	2	Base	(SUB FOR RE250562)
8	R176175	2	Gasket	-
9	57M8180	2	Bulb	-
10	R175748	2	Lens	(USE WITH RE199920)
10	R285618	2	Lens	(USE WITH RE250562)
11	RE250562	2	Lamp	(SUB FOR RE172010 OR RE199920)
12	R179273	2	Shield	-
13	RE58689	2	Wiring Harness	-
14	R163803	2	Shield	-
15	19M7874	8	Cap Screw	M6 X 30
16	RE163781	1	Support	(NARROW) RH
16	RE163783	1	Support	(WIDE) LH
16	RE163782	1	Support	(WIDE) RH
16	RE163780	1	Support	(NARROW) LH
17	19M7805	2	Screw	(W/O BUSHING) M10 X 45
17	19M7783	2	Screw	(W/BUSHING) M10 X 16
18	24M7101	2	Washer	11 X 34 X 3 mm
19	R126365	2	Retainer	-
20	14M7400	2	Lock Nut	M10
21	R180671	4	Washer	-
22	RE223696	1	Field Installation Kit	(NARROW) (SUB FOR RE184187)
22	RE223697	1	Field Installation Kit	(WIDE) (SUB FOR RE184188)
23	R172002	4	Arm	(EXTENSION) RH AND LH
24	JD5921	2	Reflector	(EXTENSION) RH AND LH
25	JD5922	2	Reflector	(EXTENSION) RH AND LH
26	JD5920	2	Reflector	(EXTENSION) RH AND LH
27	R117892	4	Nut	(EXTENSION) SUB FOR R106529

EXTREMITY WARNING LAMP KIT (LATE DESIGN)
