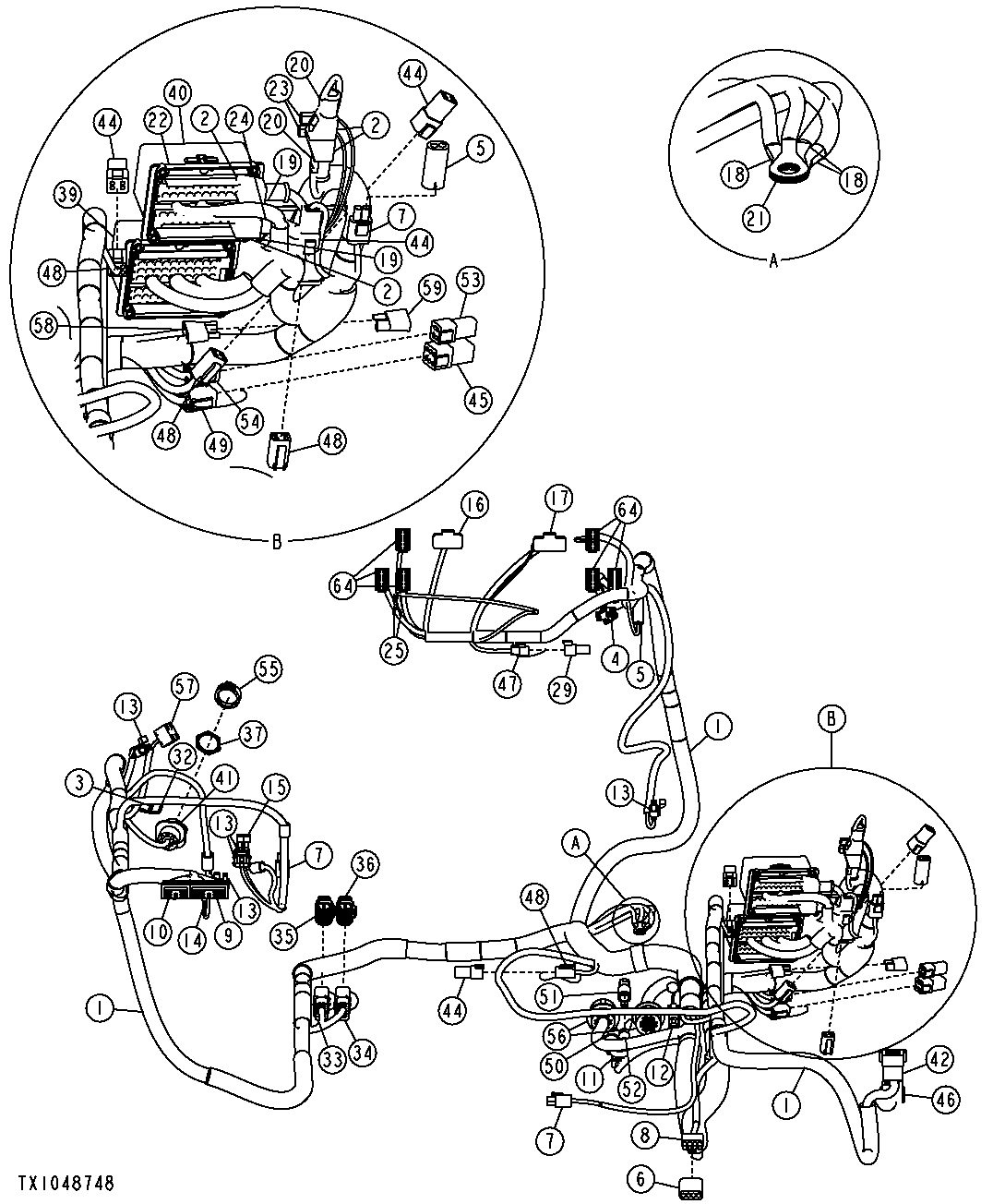

Operator's Station Wiring Harness and Connectors (150490 - 210218)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT456602	1	Wiring Harness	INCLUDES (12) 57M7688, (12) 57M7689, 57M7690, 57M9389, 57M9390 AND (5) AT434624
1	AT344107	1	Wiring Harness	NLA, ORDER AT456602, INCLUDES (12) 57M7688, (12) 57M7689, 57M7690, 57M9389, 57M9390 AND (5) AT305389
2	M135512	4	Boot	-
3	57M9451	1	Elec. Connector Terminal	Power Outlet Ground
4	L38138	1	Elec. Connector Housing	Key Switch
5	AT263424	2	Electrical Connector Assy	Monitor Alarm
6	R78055	1	Electrical Connector Assy	-
7	F120501	3	Electrical Connector Assy	Neutral SwitchAir Ride SeatSpare
8	RE12365	1	Electrical Connector Assy	Under Seat Heater
9	57M7275	1	Elec. Connector Housing	Transmission Controller
10	57M7279	1	Elec. Connector Housing	Transmission Controller
11	57M7260	1	Elec. Connector Housing	Heater Valve Motor
12	57M7293	1	Elec. Connector Housing	JDLink™
13	57M7255	5	Elec. Connector Housing	Decelerator SensorFNR SensorLeft & Right Steer SensorSpeed Control
14	57M7257	1	Elec. Connector Housing	Park Lock Lever Switch
15	57M7256	1	Elec. Connector Housing	Horn Switch
16	57M9835	1	Elec. Connector Housing	-
17	57M8484	1	Elec. Connector Housing	Monitor, ORDER 57M9942
18	-	3	Part 19	ROPS Ground Boss, ORDER 57M9944
19	-	2	Part 20	Battery PowerACC Power, ORDER 57M9945
20	-	2	Part 21	BatteryACC Power, ORDER 57M9946
21	-	1	Part 22	ROPS Ground Boss
22	AT332489	1	Fuse Box	-
23	57M9452	2	Elec. Connector Housing	ACC RELAY
24	57M9828	1	Elec. Connector Housing	Battery Power
25	57M9453	2	Elec. Connector Terminal	Winch PSR Light
29	57M8131	1	Electronic Terminator	-
32	57M9711	1	Elec. Connector Terminal	ORDER ALHN-19
33	57M9768	1	Elec. Connector Housing	GTT Box
34	57M9769	1	Elec. Connector Housing	MIG Box
35	57M9664	1	Elec. Connector Terminal	-
36	57M9801	1	Elec. Connector Housing	-
37	57M10402	1	Elec. Connector Accessory	-
39	AT346012	1	Fuse Box	Sealed Fuse Box
40	AT346013	1	Fuse Box	Sealed Fuse Block
40	12H302	2	Lock Washer	1/4"
40	14M7272	2	Nut	M6
40	24M7054	2	Washer	6.400 X 12 X 1.600 mm
41	57M9183	1	Elec. Connector Housing	Service Advisor
42	57M7633	1	Electrical Connector Assy	-
44	57M8017	4	Elec. Connector Housing	Integrated Grade Control Connector
45	57M8014	1	Elec. Connector Housing	-
46	57M8008	1	Electrical Connector Assy	Roof Connector
47	57M8018	1	Electrical Connector Assy	-
48	57M8015	4	Electrical Connector Assy	Rear Wiper MotorCanopy LightsHydraulic Lock Jumper
49	57M8012	1	Electrical Connector Assy	GTT RS232, ORDER VC1-01-XCA1
50	57M7758	1	Elec. Connector Terminal	Power Bulkhead Cab Side
51	57M7761	1	Elec. Connector Housing	-
52	57M7760	1	Electrical Connector Assy	Integrated Grade Control Power
53	-	1	Part 50	-
54	57M9076	1	Elec. Connector Housing	Ethernet
55	57M9358	1	Elec. Connector Accessory	-
56	57M7666	2	Elec. Connector Housing	Engine BulkheadTransmission Bulkhead Cab Side
57	57M9458	1	Elec. Connector Housing	Warm Up Indicator
58	-	1	Part 55	Alternator Diode
59	AT103399	1	Diode	Alternator Diode
64	-	6	Part 57	Under Seat HeaterLightAuxiliary LightStart AidDecoupled DeceleratorBeacon, ORDER VC1-01-XCA1

Operator's Station Wiring Harness and Connectors (150490 - 210218)
