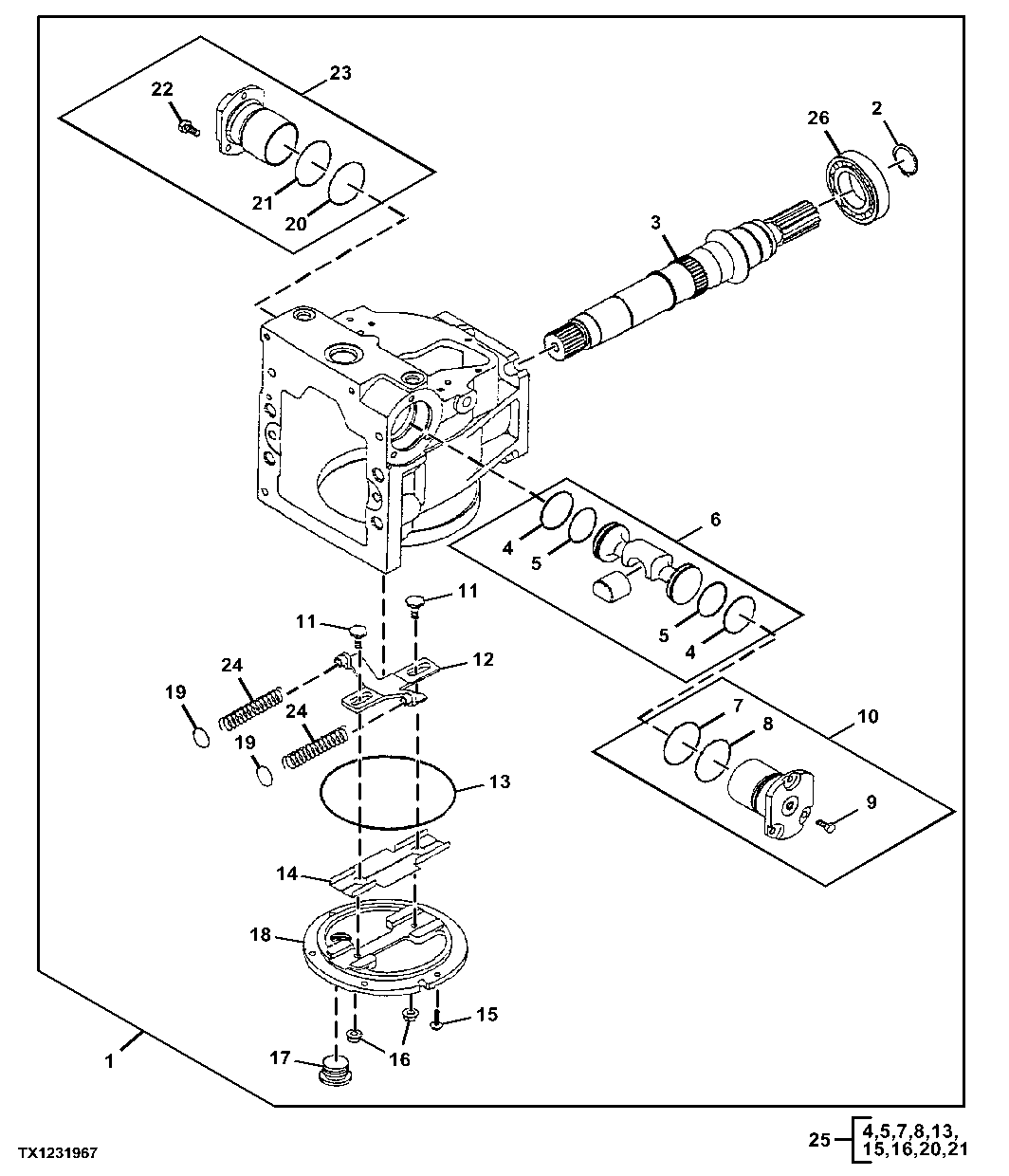

Hydrostatic Pump Components, Limitation Control

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT330361	1	Pump	Rear PumpAdditional Components Listed On Following Pages
1	AT330449	1	Hydraulic Pump Reman	REMAN FOR AT330362, MARKED 9522767
1	AT330450	1	Hydraulic Pump Reman	REMAN FOR AT330361, MARKED 9522768
1	AT330362	1	Pump	Front PumpAdditional Components Listed On Following Pages
2	T15509	1	Snap Ring	-
3	N206810	1	Shaft	Rear
3	T178726	1	Shaft	Front
4	R151103	2	Piston Ring	-
5	T176262	2	O-Ring	-
6	RE151101	1	Piston Replacement Kit	Servo Piston
7	R151097	1	O-Ring	-
8	T35580	1	O-Ring	-
9	19M7932	3	Cap Screw	M8 X 16
10	RE151096	1	Cylinder	Servo Cylinder Kit
11	T177595	2	Post	Guide
12	AT362739	1	Lever Kit	(SUB FOR AT220771 AND AT350790 )
13	E80224	1	O-Ring	-
14	RE151074	1	Insert	Side Cover
15	T155641	6	Screw	-
16	T155640	2	Nut	-
17	T64769	1	Drain Plug	-
18	T222125	1	Cover	-
19	R151069	2	Shim	-
20	R151097	1	O-Ring	-
21	T35580	1	O-Ring	-
22	19M7932	3	Cap Screw	M8 X 16
23	RE151096	1	Cylinder	Servo Cylinder Kit
24	R151072	2	Spring	Compression
25	AN220311	1	Seal Kit	OverhaulComponents On Separate Pages
26	T177597	1	Bearing	-

Hydrostatic Pump Components, Limitation Control
