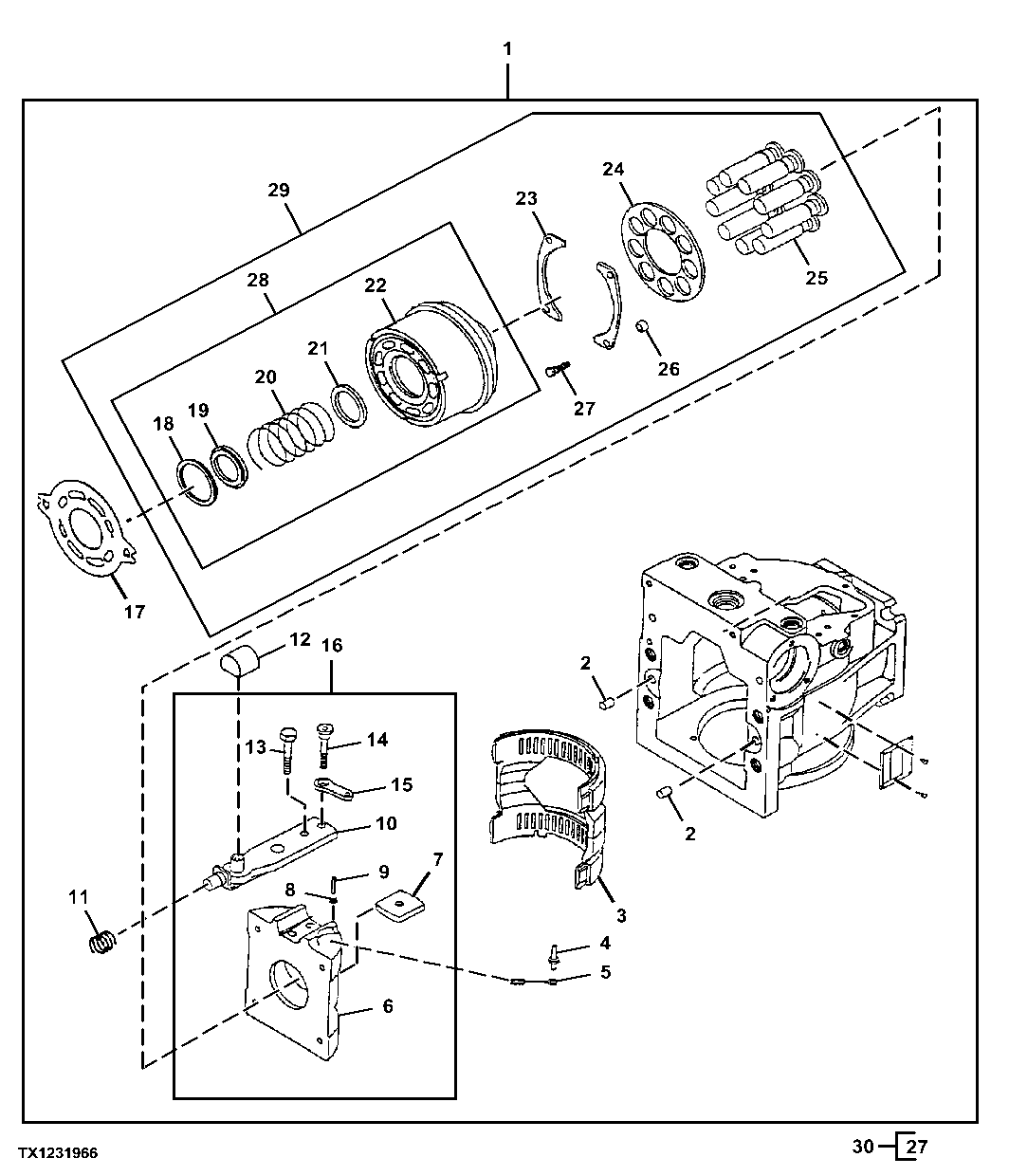

Hydrostatic Pump Components, Housing, Swash Plate, Piston and Cylinder Block Assembly

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT330361	1	Pump	Rear PumpAdditional Components Listed On Following Pages
1	AT330362	1	Pump	Front PumpAdditional Components Listed On Following Pages
1	AT330450	1	Hydraulic Pump Reman	REMAN FOR AT330361, MARKED 9522768
1	AT330449	1	Hydraulic Pump Reman	REMAN FOR AT330362, MARKED 9522767
2	R726R	2	Dowel Pin	-
3	R151062	1	Bearing	-
4	RE159656	1	Pin	Rear Pump Only
5	R151065	1	Link	Cage Locator
6	T223607	1	Swash Plate	-
7	AT214873	1	Guide	Swash Plate
8	T24199	1	Washer	-
9	AT214874	1	Pin Fastener	Spiral
10	AT220770	1	Actuator	Servo Arm
11	R151066	1	Spring	-
12	R151075	1	Clamp	Slider Block
13	T176243	1	Screw	-
14	T176244	1	Screw	-
15	T176245	1	Link	Feedback
16	AT330299	1	Swash Plate	Swash Plate Assembly
17	R151063	1	Plate	-
18	T176259	1	Ring	Retaining
19	T176258	1	Plate	Spring Retainer
20	T176256	1	Spring	-
21	T176257	1	Spring Washer	-
22	T176260	1	Ring	Speed
23	R151099	2	Bearing	Guide
24	N220940	1	Guide	Slipper
25	AN220419	9	Piston	Welded Piston Assembly
26	T177594	4	Spacer	-
27	T176261	4	Screw	-
28	AT221619	1	Cylinder	Cylinder Block Assembly With Speed Ring
29	AT224344	1	Cylinder Block	Kit
30	AN220311	1	Seal Kit	Components On Another PageOverhaul

Hydrostatic Pump Components, Housing, Swash Plate, Piston and Cylinder Block Assembly
