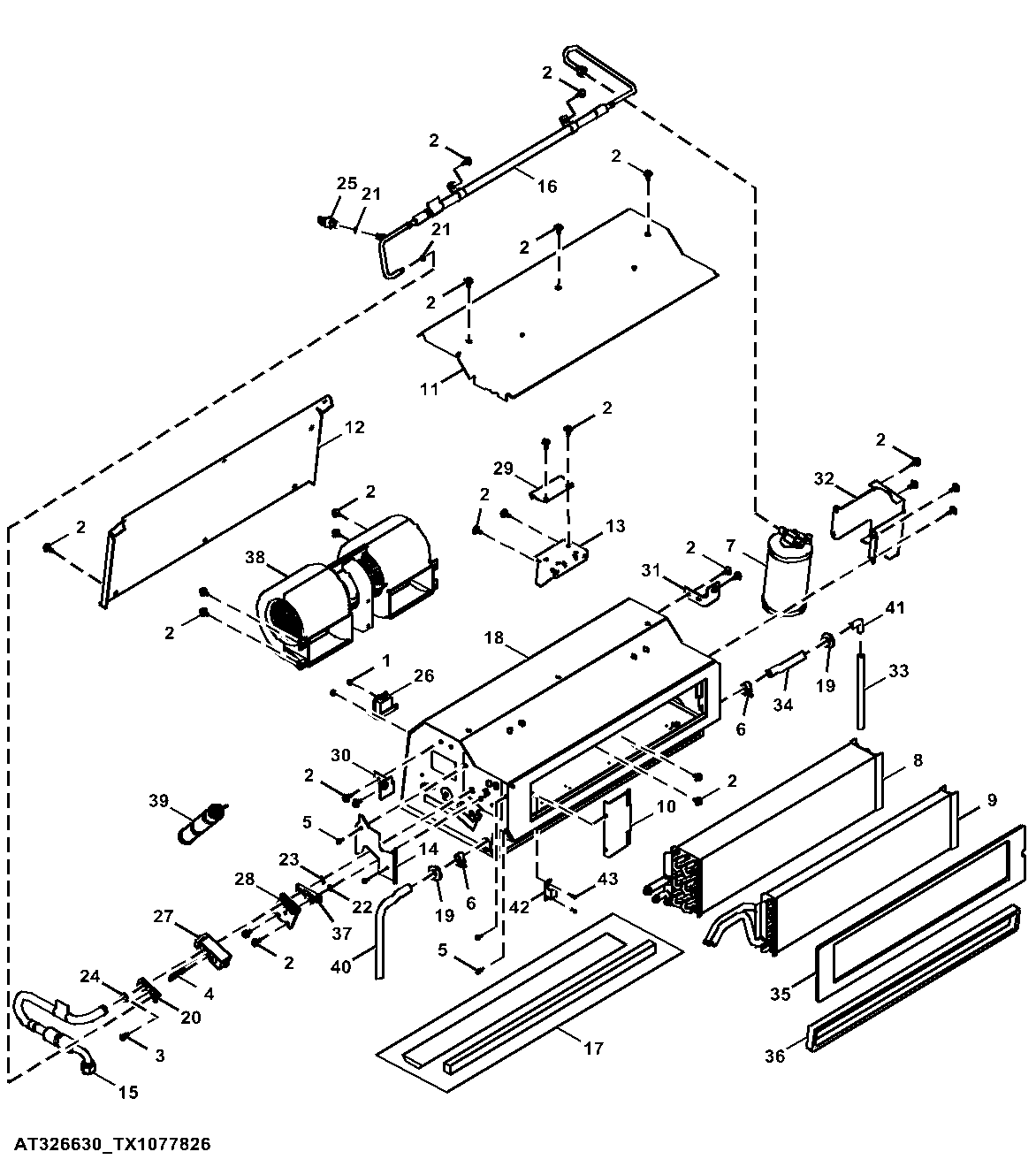

Heater and Air Conditioning (A/C) Module

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7375	2	Flange Nut	M5
2	19M7775	33	Screw	M6 X 16
3	19M8553	1	Screw	M6 X 16
4	19M8669	2	Screw	M5 X 35
5	19M9902	4	Screw	M5 X 12
6	AH78237	2	Clamp	-
7	AT162848	1	Receiver-Dryer	-
8	AT207848	1	Core	Evaporator
9	AT207849	1	Core	Heater
10	AT221266	1	Cover	-
11	AT442335	1	Cover	SUB FOR AT221267
12	AT221268	1	Cover	-
13	AT221279	1	Bracket	-
14	AT221317	1	Plate	-
15	AT221319	1	Refrigerant Hose	Heating and A/C Bulkhead
16	AT221321	1	Refrigerant Hose	-
17	AT224721	1	Gasket Kit	-
18	-	1	Part 18	NSEP
19	P41858	2	Grommet	-
20	R125223	1	Plate	-
21	R183409	2	O-Ring	-
22	R183410	1	O-Ring	-
23	R183411	1	O-Ring	-
24	R183412	1	O-Ring	-
25	RE155938	1	Pressure Switch	Low Pressure
26	RE198074	1	Temperature Switch	Heater and A/C Temperature
27	RE283957	1	Valve	Thermal Expansion
28	T158127	1	Plate	-
29	T177168	1	Plate	-
30	T177171	1	Bracket	Right
31	T177172	1	Bracket	Left
32	T177228	1	Bracket	-
33	-	1	Part 33	MAKE FROM T411121, CTL 1150 mm (45 in)
34	-	1	Part 34	MAKE FROM T305780, CTL 2743.2 mm (108 in)
35	T247345	1	Isolator	Fresh Air
36	T258162	1	Isolator	Recirculation
37	T263172	1	Plate	-
38	AT221322	1	Blower Fan	-
39	AT221337	1	Resistor	-
40	-	1	Part 40	MAKE FROM T305780, CTL 1559.56 mm (61.4 in)
41	T305779	1	Elbow Fitting	-
42	AT222736	1	Resistor	Water Valve
43	37M7095	2	Screw	-
44	AT223253	1	Wiring Harness	Heater and A/C ModuleNot Illustrated

Heater and Air Conditioning (A/C) Module
