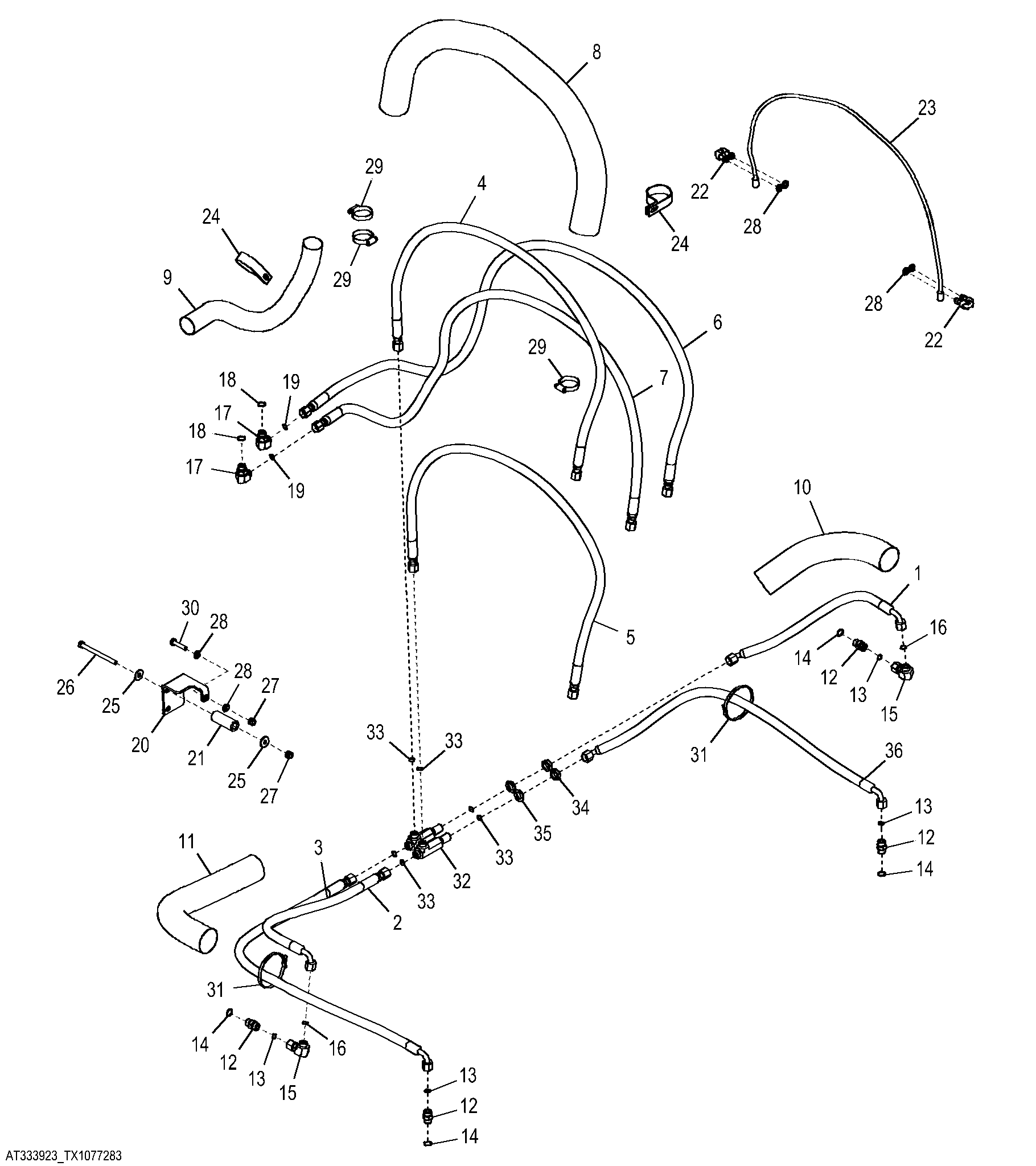

Blade Tilt and Angle Cylinder Plumbing (182078 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT378445	1	Hydraulic Hose	Angle CylinderRod End
2	AT220716	1	Hydraulic Hose	Angle CylinderRod End
3	AT220717	1	Hydraulic Hose	Angle CylinderBarrel End
4	AT221276	1	Hydraulic Hose	Fabricate
5	AT221276	1	Hydraulic Hose	Fabricate
6	AT221622	1	Hydraulic Hose	Tilt CylinderBarrel EndFabricate
7	AT222554	1	Hydraulic Hose	Tilt CylinderRod EndFabricate
8	-	1	Part 8	Fabricate, (MAKE FROM XPS-B-47) (CTL 1537 mm)
9	-	1	Part 9	Fabricate, (MAKE FROM XPS-B-33) (CTL 966 mm)
10	-	1	Part 10	Fabricate, (MAKE FROM XPS-B-33) (CTL 533 mm)
11	-	1	Part 11	Fabricate, (MAKE FROM XPS-B-33) (CTL 838 mm)
12	38H1161	4	Adapter Fitting	-
13	T77857	4	O-Ring	-
14	R26375	4	O-Ring	-
15	38H1095	2	Elbow Fitting	-
16	T77857	2	O-Ring	-
17	38H1005	2	Elbow Fitting	-
18	R26375	2	O-Ring	-
19	T77857	2	O-Ring	-
20	T226275	1	Guard	-
21	T151427	1	Bushing	-
22	AT62123	2	Clamp	-
23	AT221229	1	Cable	-
24	T118385	2	Clamp	-
25	24M7296	2	Washer	10.500 X 30 X 2.500 mm
26	19M7638	1	Cap Screw	M10 X 130
27	14M7517	2	Lock Nut	M10
28	24M7239	6	Washer	10.700 X 21 X 2.500 mm
29	TY22472	3	Clamp	-
30	19M7572	1	Cap Screw	M10 X 45
31	R76477	2	Tie Band	-
32	T266487	2	Tee Fitting	-
33	T77857	6	O-Ring	-
34	T78716	2	Nut	-
35	24M7396	2	Washer	21 X 34 X 3 mm
36	AT378444	1	Hydraulic Hose	Angle CylinderBarrel End

Blade Tilt and Angle Cylinder Plumbing (182078 - )
