PARKING LOCK, RANGE TRANSMISSION (WITH MECH.REVERSER CONTROL AT STEERING COLUMN)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL79072	1	Support	-
2	19M8397	2	Cap Screw	M8 X 50, (10.9)
3	11M7079	2	Cotter Pin	2.500 X 12 mm
4	24M7055	2	Washer	8.400 X 16 X 1.600 mm
5	L80107	2	Bushing	-
6	24M7386	1	Washer	13 X 19 X 1.500 mm
7	40M7253	1	Snap Ring	-
8	AL114390	1	Lever	LGTH= 82.5MM (3- 1/4"), PowrQuad™, ORDER AL202946
8	AL114391	1	Lever	LGTH= 97MM (3-13/16"), PowrReverser™, ORDER AL202945
9	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
10	AL114501	2	Torsion Spring	-
11	L100761	1	Rod	LGTH= 184.5MM (7-1/4"), (ORD L167801)
12	34M7259	1	Spring Pin	8 X 32 mm
13	AL164323	1	Arm	-
14	19M7162	1	Cap Screw	M8 X 16
15	L80167	1	Torsion Spring	-
16	L79037	1	Seal	-
17	24M7375	1	Washer	25 X 36 X 2 mm, TK= 2.0MM (0.079")
17	24M7374	1	Washer	25 X 36 X 1.900 mm, TK= 1.9MM (0.075")
17	24M7373	1	Washer	25 X 36 X 1.800 mm, TK= 1.8MM (0.071")
17	24M7369	1	Washer	25 X 36 X 1.400 mm, TK= 1.4MM (0.055")
17	24M7372	1	Washer	25 X 36 X 1.700 mm, TK= 1.7MM (0.067")
17	24M7370	1	Washer	25 X 36 X 1.500 mm, TK= 1.5MM (0.059")
17	24M7399	1	Washer	25 X 36 X 1.300 mm, TK= 1.3MM (0.051")
17	24M7398	1	Washer	25 X 36 X 1.200 mm, TK= 1.2MM (0.047")
17	24M7452	1	Washer	25 X 36 X 1.100 mm, TK= 1.1MM (0.043")
17	24M7371	1	Washer	25 X 36 X 1.600 mm, TK= 1.6MM (0.063")
18	L154520	2	Thrust Washer	-
19	JD8856	1	Needle Bearing	-
20	L209240	1	Cam	SUB FOR L102316; L165947
21	L78415	1	Bushing	-
22	L202557	1	Pawl	SUB FOR L153968
23	34M5719	1	Spring Pin	4 X 22 mm
24	L150696	1	Pin Fastener	-
25	34M7215	1	Spring Pin	5 X 35 mm
26	L150693	1	Pin Fastener	-
27	L155639	1	Extension Spring	-
28	L167801	1	Rod	-
29	AL202946	1	Lever	-
29	AL202945	1	Lever	-

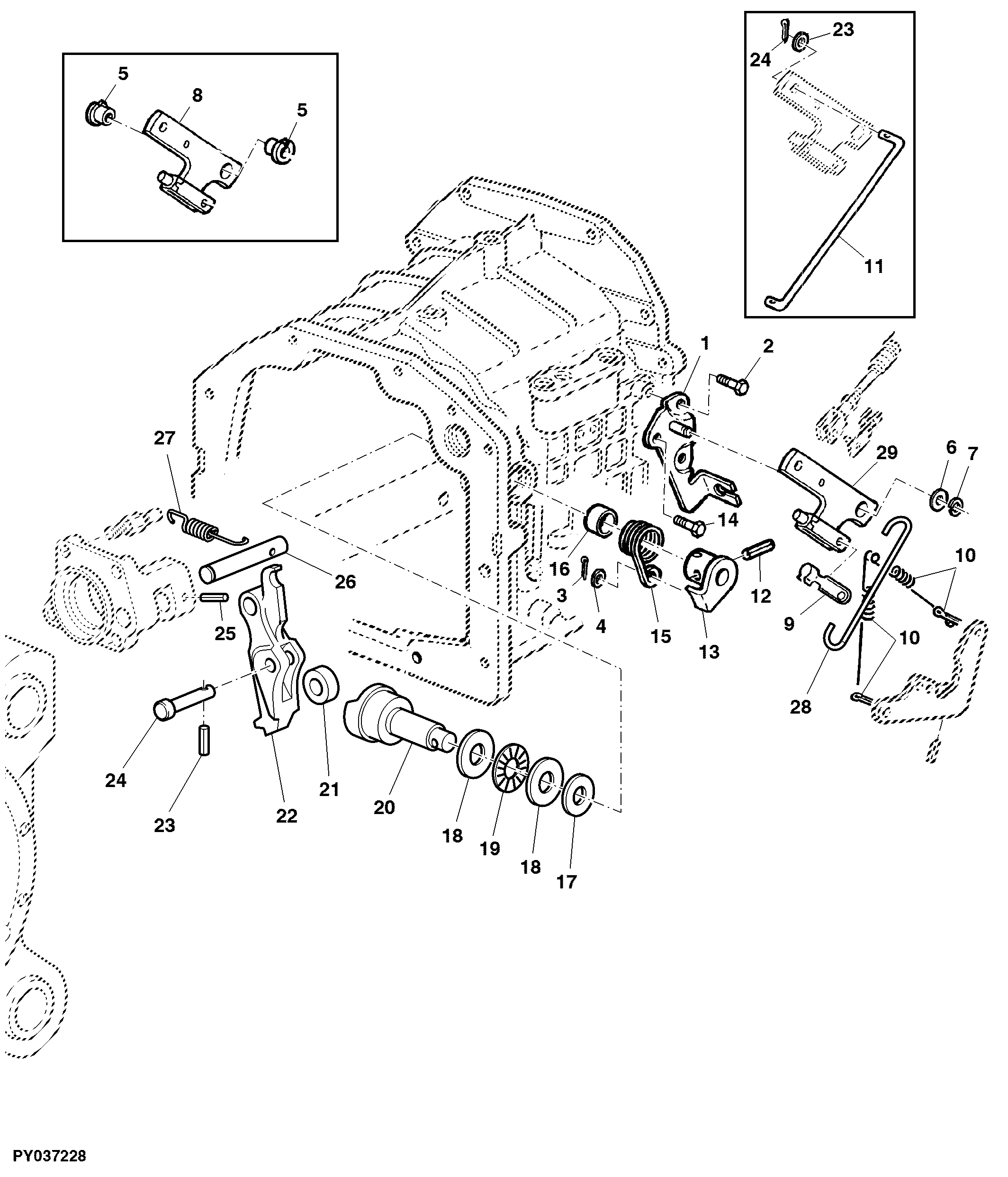

PARKING LOCK, RANGE TRANSMISSION (WITH MECH.REVERSER CONTROL AT STEERING COLUMN)
