Открытый узел

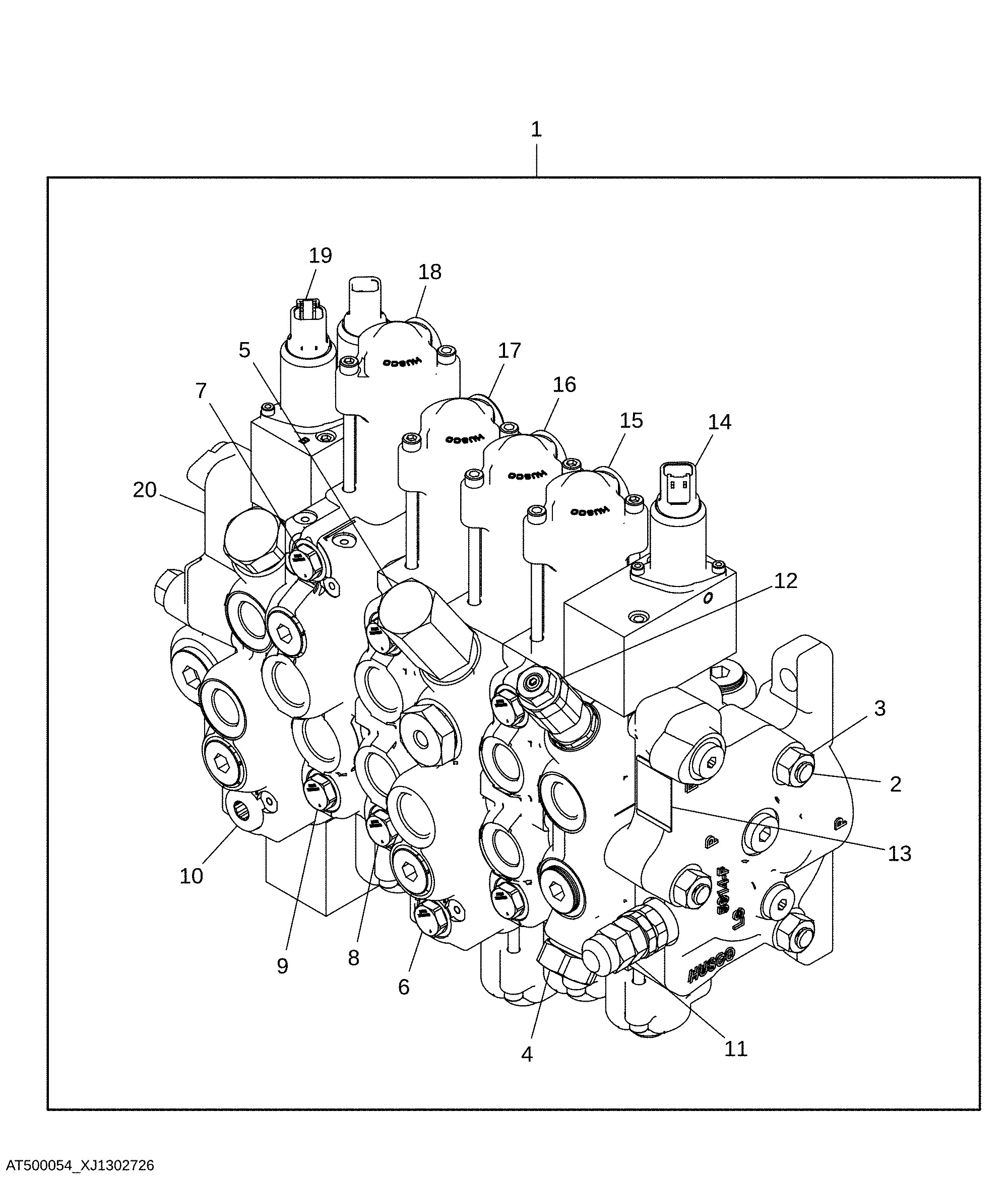

Hydraulic Actuated Control Valve, Six Function Pilot with Extendable Dipperstick and Select Flow

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT500054	1	Hyd Actuated Control Valve	-
2	T352186	3	Rod	12.00 mm X 414.00 mm, 6-Function
3	T170269	6	Nut	12.00 mm X 1.25 mm
4	AT83174	3	Fitting Plug	1.0625 in, Extension Select Flow
4	T183757	1	Seal	-
5	T107887	1	O-Ring	-
5	R63548	1	O-Ring	-
5	AT314539	1	Seal Kit	-
5	T118681	2	O-Ring	-
5	T118866	1	Housing	-
5	T118867	1	Spring	-
5	AT114682	1	Valve Kit	-
5	AT485803	1	Pressure Relief Valve	189.60 bar (2750 psi)
6	AT444010	1	Pressure Relief Valve	386.11 bar (5600 psi), Boom Section
6	51M7044	1	O-Ring	17.300 X 2.200 mm
7	AT444009	1	Pressure Relief Valve	334.40 bar (4850 psi), Crowd Section
7	51M7044	1	O-Ring	17.300 X 2.200 mm
8	AT444008	2	Pressure Relief Valve	324.05 bar (4700 psi), Bucket Section
8	51M7044	1	O-Ring	17.300 X 2.200 mm
9	AT444007	3	Pressure Relief Valve	296.47 bar (4300 psi), Swing Crowd Section
9	51M7044	1	O-Ring	17.300 X 2.200 mm
10	AT424429	1	Fitting Plug	20.00 mm X 1.50 mm, Extendable Section
10	51M7044	1	O-Ring	17.300 X 2.200 mm
10	T77857	1	O-Ring	-
10	T352420	1	O-Ring	-
11	AT328991	1	Pressure Relief Valve	218.91 bar (3175 psi), Load Sense Relief Valve
11	AT314538	1	Seal Kit	-
11	T107887	1	O-Ring	-
11	R79060	1	O-Ring	-
11	R111235	2	Back-Up Ring	-
12	R79060	1	O-Ring	-
12	R111235	2	Back-Up Ring	-
12	T107887	1	O-Ring	-
12	AT314538	1	Seal Kit	-
12	AT221396	1	Flow Control Hyd. Valve	206.84 bar (3000 psi)
13	AT444016	1	Hyd Actuated Control Valve	Inlet Section Components on Separate Page
14	AT519209	1	Hyd Actuated Control Valve	Selective Flow Section Components on Separate Page
15	AT444081	1	Hyd Actuated Control Valve	Swing Section Components on Separate Page
16	AT444082	1	Hyd Actuated Control Valve	Boom Section Components on Separate Page
17	AT444083	1	Hyd Actuated Control Valve	Bucket Section Components on Separate Page
18	AT444084	1	Hyd Actuated Control Valve	Crowd Section Components on Separate Page
19	AT519214	1	Hyd Actuated Control Valve	Extendable Section Components on Separate Page
20	AT444017	1	Hyd Actuated Control Valve	Outlet Section Components on Separate Page

Hydraulic Actuated Control Valve, Six Function Pilot with Extendable Dipperstick and Select Flow

Нет текстового описания
