Открытый узел

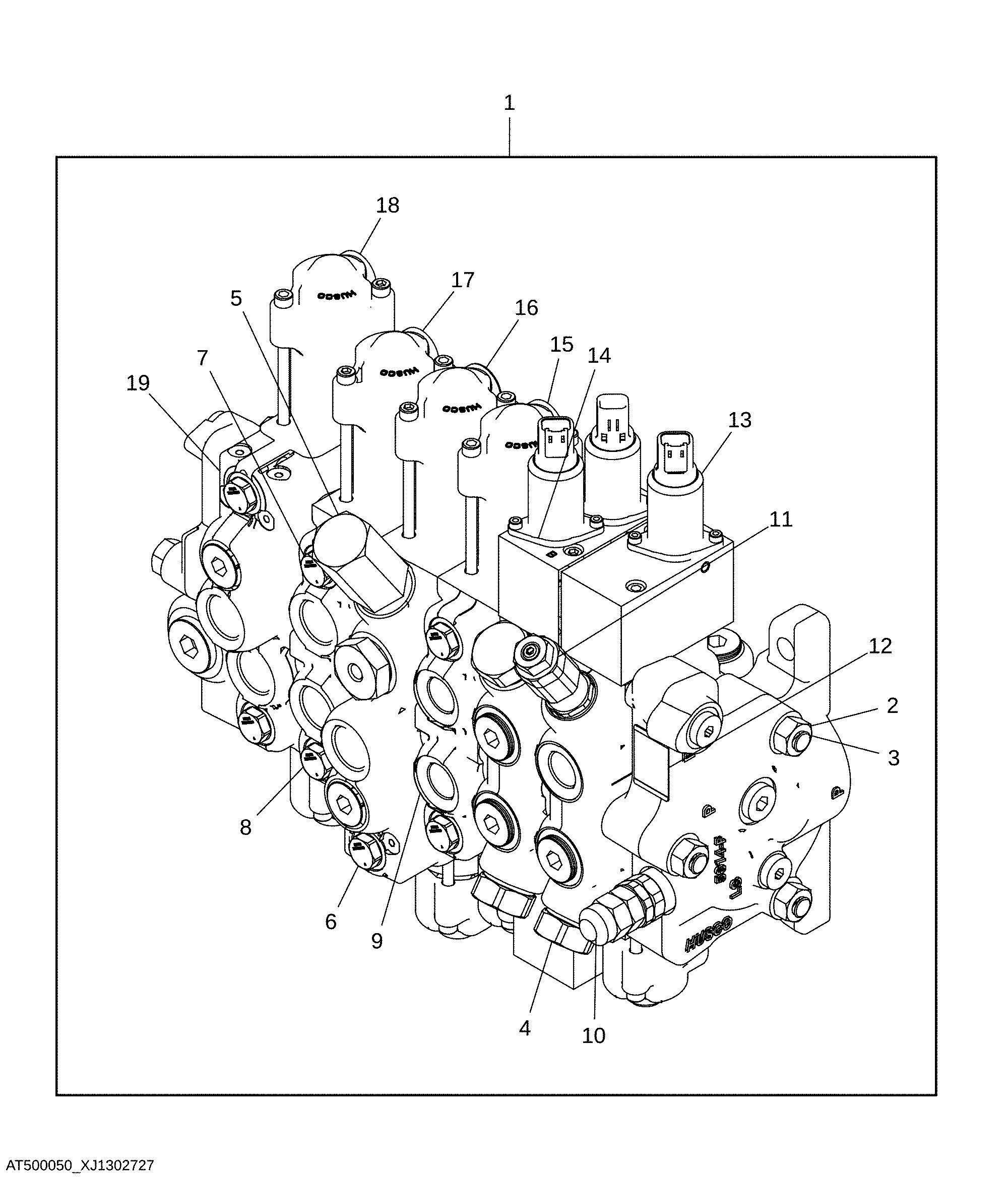

Hydraulic Actuated Control Valve, Six Function Pilot Control

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT500050	1	Hyd Actuated Control Valve	-
2	T352186	3	Rod	12.00 mm X 414.00 mm, 6-Function
3	T170269	6	Nut	12.00 mm X 1.25 mm
4	AT83174	3	Fitting Plug	1.0625 in, Extension Select Flow
4	T183757	1	Seal	-
5	T107887	1	O-Ring	-
5	R63548	1	O-Ring	-
5	AT314539	1	Seal Kit	-
5	T118681	2	O-Ring	-
5	T118866	1	Housing	-
5	T118867	1	Spring	-
5	AT114682	1	Valve Kit	-
5	AT485803	1	Pressure Relief Valve	189.60 bar (2750 psi)
6	AT444010	1	Pressure Relief Valve	386.11 bar (5600 psi), Boom Section
6	51M7044	1	O-Ring	17.300 X 2.200 mm
7	AT444009	1	Pressure Relief Valve	334.40 bar (4850 psi), Crowd Section
7	51M7044	1	O-Ring	17.300 X 2.200 mm
8	AT444008	2	Pressure Relief Valve	324.05 bar (4700 psi), Bucket Section
8	51M7044	1	O-Ring	17.300 X 2.200 mm
9	AT444007	3	Pressure Relief Valve	296.47 bar (4300 psi), Swing Crowd Section
9	51M7044	1	O-Ring	17.300 X 2.200 mm
10	AT328991	1	Pressure Relief Valve	218.91 bar (3175 psi), Load Sense Relief Valve
10	AT314538	1	Seal Kit	-
10	T107887	1	O-Ring	-
10	R79060	1	O-Ring	-
10	R111235	2	Back-Up Ring	-
11	R79060	1	O-Ring	-
11	R111235	2	Back-Up Ring	-
11	T107887	1	O-Ring	-
11	AT314538	1	Seal Kit	-
11	AT221396	1	Flow Control Hyd. Valve	206.84 bar (3000 psi)
12	AT444016	1	Hyd Actuated Control Valve	Inlet Section Components on Separate Page
13	AT519209	1	Hyd Actuated Control Valve	Selective Flow Section Components on Separate Page
14	AT519208	1	Hyd Actuated Control Valve	Auxiliary Section Components on Separate Page
15	AT444081	1	Hyd Actuated Control Valve	Swing Section Components on Separate Page
16	AT444082	1	Hyd Actuated Control Valve	Boom Section Components on Separate Page
17	AT444083	1	Hyd Actuated Control Valve	Bucket Section Components on Separate Page
18	AT444084	1	Hyd Actuated Control Valve	Crowd Section Components on Separate Page
19	AT444017	1	Hyd Actuated Control Valve	Outlet Section Components on Separate Page

Hydraulic Actuated Control Valve, Six Function Pilot Control

Нет текстового описания
