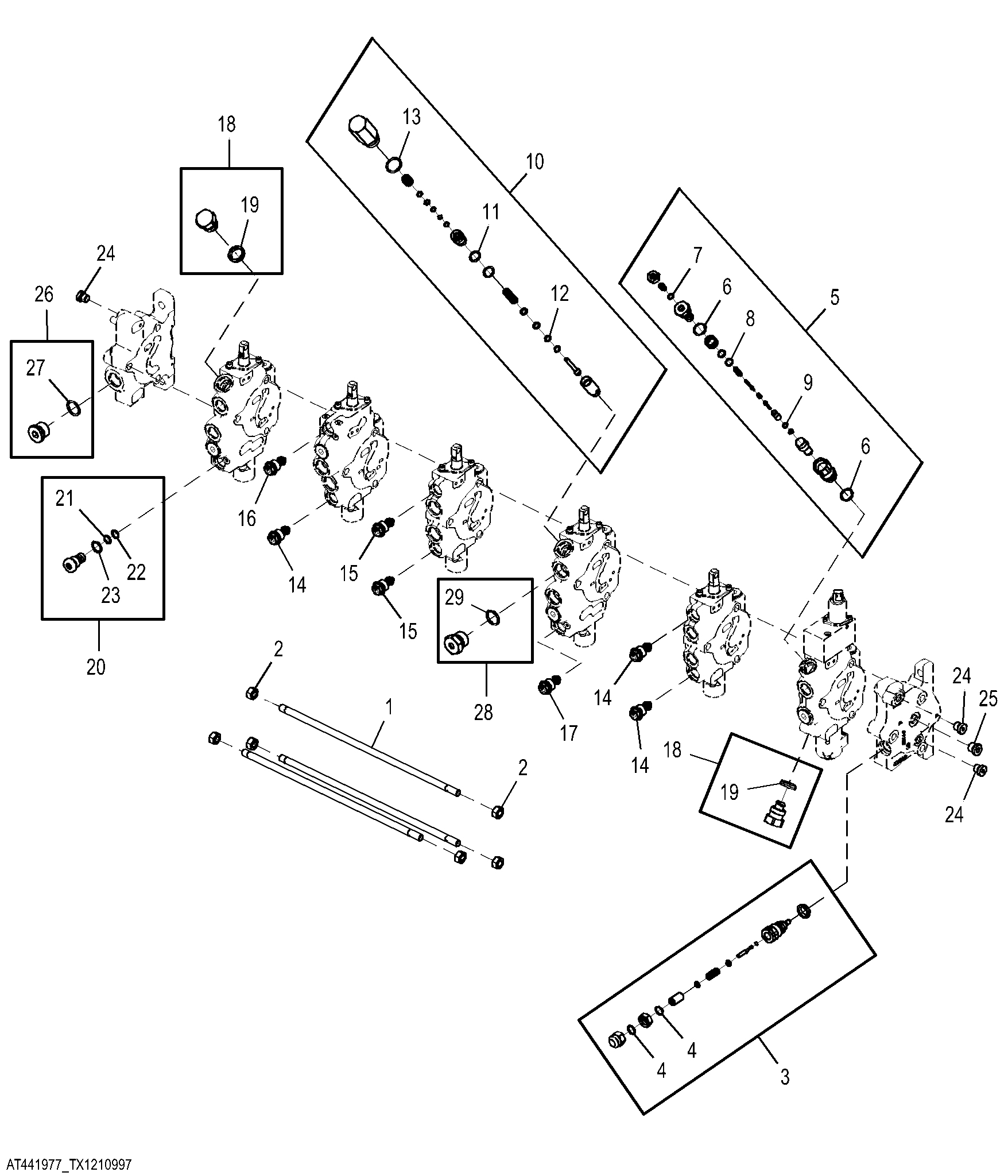

Backhoe Relief Valves, Six Function Manual Control

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T352186	3	Rod	12.00 mm X 414.00 mm, 6-Function
2	T170269	6	Nut	12.00 mm X 1.25 mm
3	AT328991	1	Pressure Relief Valve	218.91 bar (3175 psi), Inlet Section
4	-	2	Part 4	NLA, ORDER AT314538
5	AT221396	1	Flow Control Hyd. Valve	206.84 bar (3000 psi), Select Flow
6	-	2	Part 6	NLA, ORDER AT314538
7	-	1	Part 7	NLA, ORDER AT314538
8	-	1	Part 8	NLA, ORDER AT314538
9	-	1	Part 9	NLA, ORDER AT314538
10	AT171403	1	Pressure Relief Valve	148.24 bar (2150 psi), Boom Section
10	51M7044	1	O-Ring	17.300 X 2.200 mm
10	AT178363	1	Pressure Relief Valve	Relief Valve Insert Not Illustrated
10	AT444007	3	Pressure Relief Valve	296.47 bar (4300 psi), Swing Crowd Section
10	AT485803	1	Pressure Relief Valve	189.60 bar (2750 psi), Boom Section
11	-	1	Part 15	NLA, ORDER AT314539
12	-	1	Part 16	NLA, ORDER AT314539
13	T118681	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	51M7044	1	O-Ring	17.300 X 2.200 mm
14	AT178363	1	Pressure Relief Valve	Relief Valve Insert Not Illustrated
14	AT485803	1	Pressure Relief Valve	189.60 bar (2750 psi), Boom Section
14	AT171403	1	Pressure Relief Valve	148.24 bar (2150 psi), Boom Section
14	AT444007	3	Pressure Relief Valve	296.47 bar (4300 psi), Swing Crowd Section
15	AT444008	2	Pressure Relief Valve	324.05 bar (4700 psi), Bucket Section
15	AT444008	2	Pressure Relief Valve	324.05 bar (4700 psi), Bucket Section
15	51M7044	1	O-Ring	17.300 X 2.200 mm
16	AT444009	1	Pressure Relief Valve	334.40 bar (4850 psi), Crowd Section
16	51M7044	1	O-Ring	17.300 X 2.200 mm
17	AT444010	1	Pressure Relief Valve	386.11 bar (5600 psi), Boom Section
17	51M7044	1	O-Ring	17.300 X 2.200 mm
18	AT83174	2	Fitting Plug	1.0625 in, Extension Select Flow
19	T183757	1	Seal	-
20	AT424429	1	Fitting Plug	-
21	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
22	T352420	1	O-Ring	13.158 X 15.852 X 1.232 mm (0.518" X 0.624" X 0.049")
23	51M7044	1	O-Ring	17.300 X 2.200 mm
24	-	3	Part 36	NLA
25	RE225377	1	Fitting Plug	-
26	-	1	Part 38	NLA
27	-	1	Part 39	NLA
28	AT424429	1	Fitting Plug	20.00 mm X 1.50 mm, Extendable Section
29	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
30	AT314538	1	Seal Kit	Not Illustrated
31	AT314539	1	Seal Kit	Not Illustrated

Backhoe Relief Valves, Six Function Manual Control
