Открытый узел

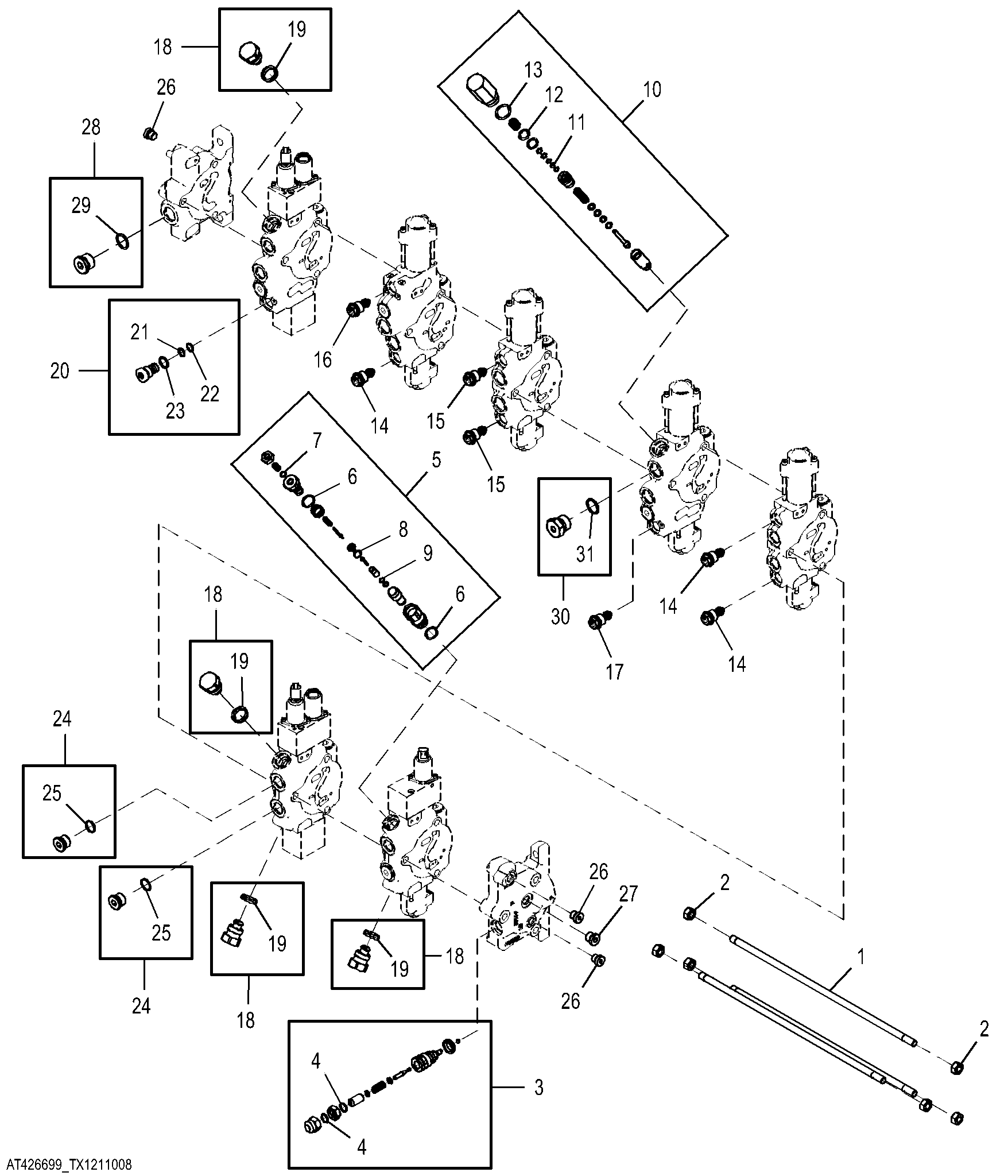

Backhoe Relief Valves, Five, Six, and Seven Function Pilot Control

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T352186	3	Rod	12.00 mm X 414.00 mm, 6-Function
1	T352185	3	Rod	12.00 mm X 366.00 mm, 5-Function
1	T352187	3	Rod	12.00 mm X 462.00 mm, 7-Function
2	T170269	6	Nut	12.00 mm X 1.25 mm
3	AT328991	1	Pressure Relief Valve	230.97 bar (3350 psi), Inlet Section
3	AT314538	1	Seal Kit	-
4	-	2	Part 7	NLA, ORDER AT314538
5	AT221396	1	Flow Control Hyd. Valve	199.95 bar (2900 psi), Select Flow
5	AT314538	1	Seal Kit	-
6	-	2	Part 10	NLA, ORDER AT314538
7	-	1	Part 11	NLA, ORDER AT314538
8	-	1	Part 12	NLA, ORDER AT314538
9	-	1	Part 13	NLA, ORDER AT314538
10	AT171403	1	Pressure Relief Valve	148.24 bar (2150 psi), Anti-Cavitation Boom Section
10	AT485803	1	Pressure Relief Valve	189.60 bar (2750 psi), Boom Section
10	AT314539	1	Seal Kit	-
11	-	1	Part 17	NLA, ORDER AT314539
12	-	1	Part 18	NLA, ORDER AT314539
13	T118681	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	51M7044	3	O-Ring	17.300 X 2.200 mm
14	AT444007	3	Pressure Relief Valve	289.58 bar (4200 psi), Anti-Cavitation Swing Crowd Section
15	AT444008	2	Pressure Relief Valve	317.16 bar (4600 psi), Anti-Cavitation Bucket Section
15	51M7044	1	O-Ring	17.300 X 2.200 mm
16	AT444009	1	Pressure Relief Valve	327.50 bar (4750 psi), Anti-Cavitation Crowd Section
16	51M7044	1	O-Ring	17.300 X 2.200 mm
17	AT444010	1	Pressure Relief Valve	379.21 bar (5500 psi), Anti-Cavitation Boom Section
17	51M7044	1	O-Ring	17.300 X 2.200 mm
18	AT83174	4	Fitting Plug	-
19	T183757	1	Seal	-
20	AT424429	1	Fitting Plug	20.00 mm X 1.50 mm, Extendable Section
21	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
22	T352420	1	O-Ring	13.158 X 15.852 X 1.232 mm (0.518" X 0.624" X 0.049")
23	51M7044	1	O-Ring	17.300 X 2.200 mm
24	-	2	Part 34	NLA
25	-	1	Part 35	NLA
26	-	3	Part 36	NLA
27	-	1	Part 37	NLA
28	-	1	Part 38	NLA
29	-	1	Part 39	NLA
30	-	1	Part 40	NLA
31	-	1	Part 41	NLA

Backhoe Relief Valves, Five, Six, and Seven Function Pilot Control

Нет текстового описания
