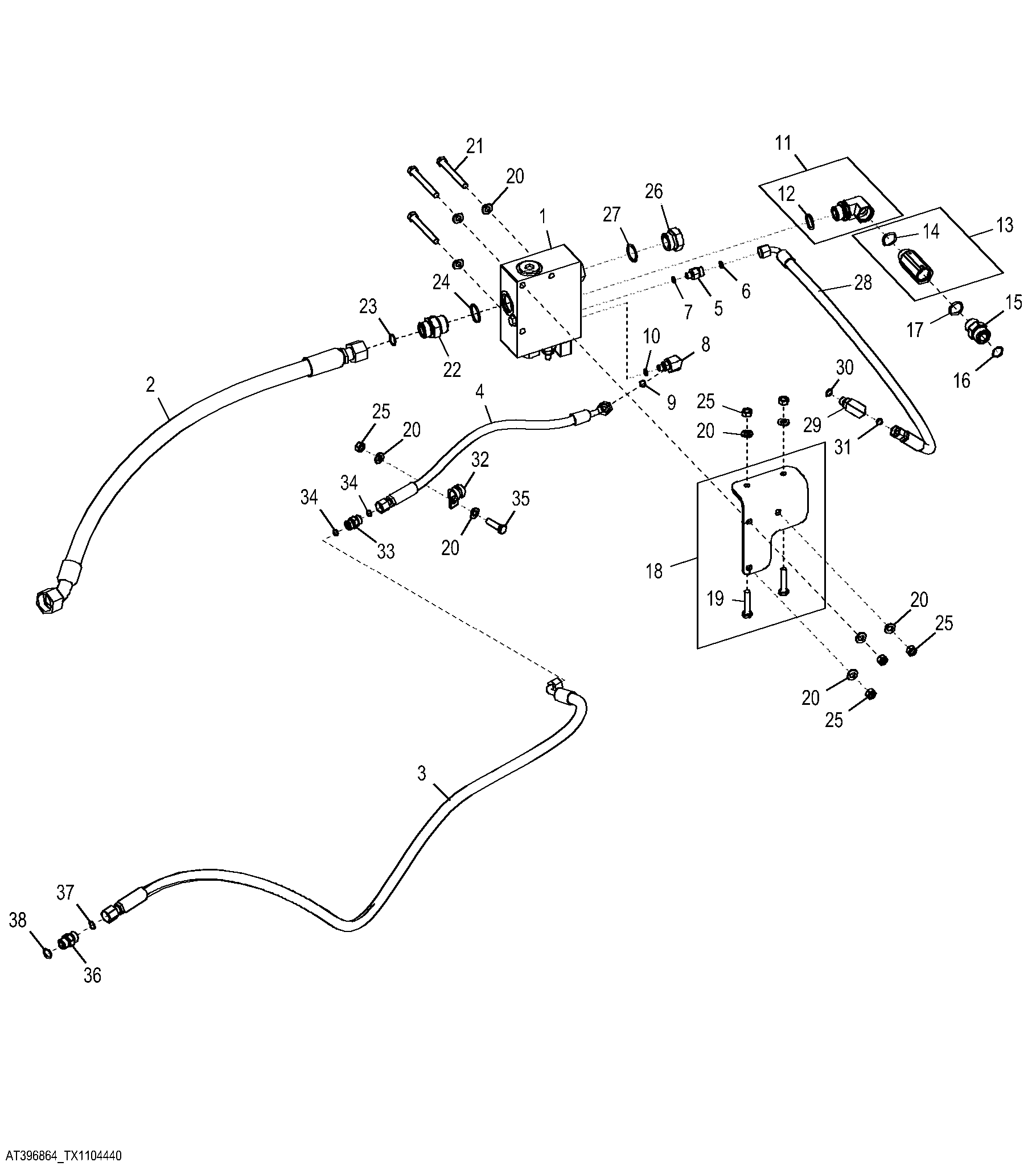

Selective Flow Control Valve Hydraulics, Manual

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT323347	1	Selective Control Valve	Components On Separate Pages
2	AT325816	1	Hydraulic Hose	Fabricate
3	AT325817	1	Hydraulic Hose	Fabricate
4	AT325818	1	Hydraulic Hose	Fabricate
5	38H1309	1	Adapter Fitting	-
6	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
8	38H1435	1	Elbow Fitting	-
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
11	AT189078	1	Elbow Fitting	-
12	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
13	AT117631	1	Check Valve	-
14	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
15	38H1163	1	Adapter Fitting	-
16	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	AT280804	1	Bracket	-
19	19M8600	2	Cap Screw	M10 X 50
20	24M7239	10	Washer	10.700 X 21 X 2.500 mm
21	19M8183	3	Cap Screw	M10 X 90
22	38H1194	1	Adapter Fitting	-
23	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
24	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
25	14M7274	6	Nut	M10
26	R36636	1	Drain Plug	-
27	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
28	AT195613	1	Hydraulic Hose	Fabricate
29	38H1004	1	Elbow Fitting	-
30	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
31	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
32	T74416	1	Clamp	-
33	38H1278	1	Union Fitting	-
34	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
35	19M7550	1	Cap Screw	M10 X 35
36	38H1161	1	Adapter Fitting	-
37	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
38	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")

Selective Flow Control Valve Hydraulics, Manual

Нет текстового описания
