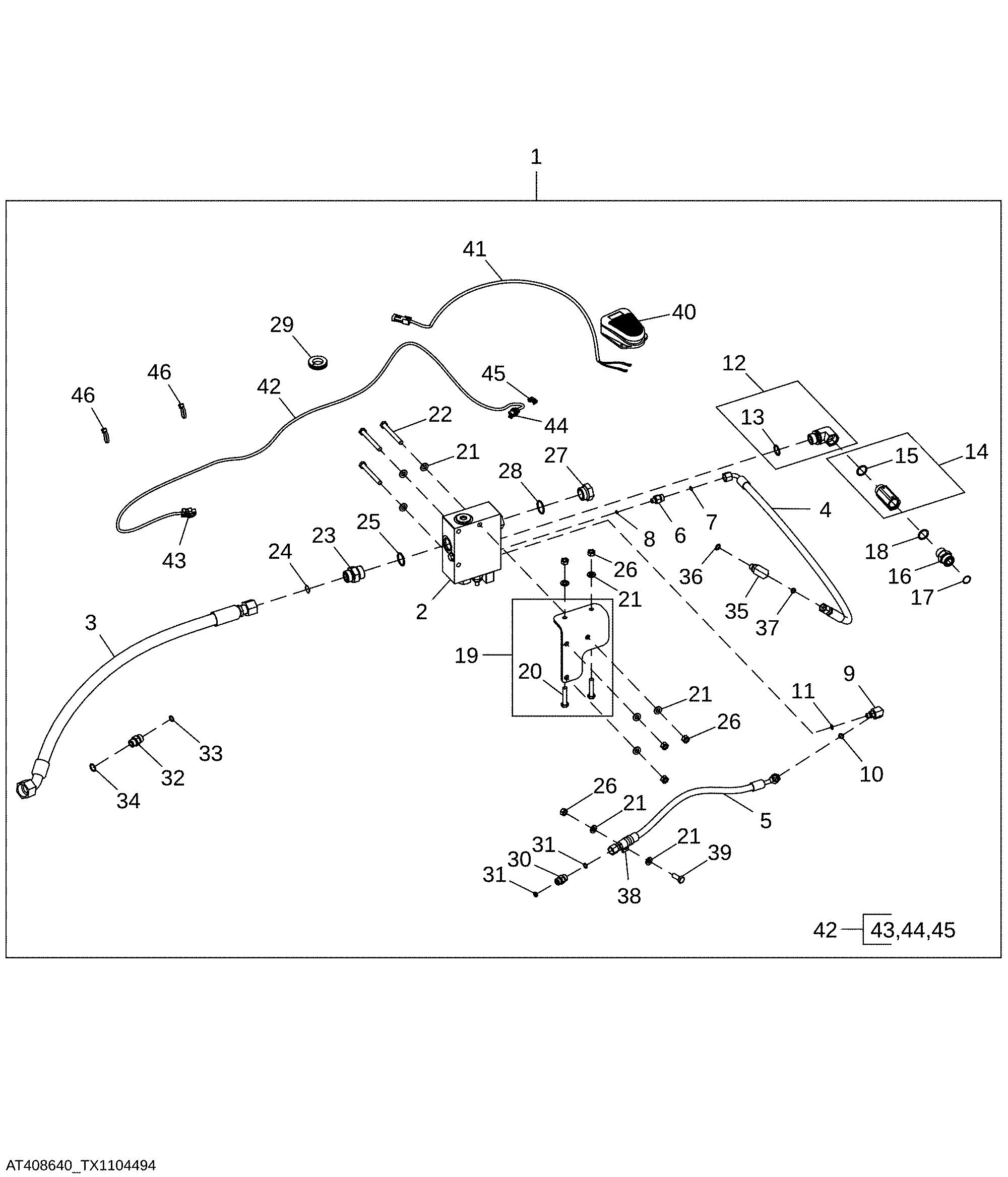

Selective Flow Control Valve Hydraulics Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T149199	1	Label	Auxiliary Hydraulic
1	AT408640	1	Valve Kit	WHOLE GOODS, INCLUDES T149199
2	AT323347	1	Selective Control Valve	Components on Separate Page
3	AT325816	1	Hydraulic Hose	Supply
4	AT195613	1	Hydraulic Hose	To Selective Control Valve
5	AT325818	1	Hydraulic Hose	Drain
6	38H1309	1	Adapter Fitting	-
7	T77613	1	O-Ring	-
8	R28782	1	O-Ring	-
9	38H1435	1	Elbow Fitting	-
10	T77613	1	O-Ring	-
11	R28782	1	O-Ring	-
12	AT189078	1	Elbow Fitting	-
13	U12547	1	O-Ring	-
14	AT117631	1	Check Valve	-
15	U12547	2	O-Ring	-
16	38H1163	1	Adapter Fitting	-
17	T77858	1	O-Ring	-
18	U12547	1	O-Ring	-
19	AT280804	1	Bracket	Valve Mounting Bracket
20	19M8600	2	Cap Screw	M10 X 50
21	24M7239	10	Washer	10.700 X 21 X 2.500 mm
22	19M8183	3	Cap Screw	M10 X 90
23	38H1194	1	Adapter Fitting	-
24	T77858	1	O-Ring	-
25	R29936	1	O-Ring	-
26	14M7274	6	Nut	M10
27	R36636	1	Drain Plug	-
28	R29936	1	O-Ring	-
29	R50636	1	Grommet	-
30	38H1278	1	Union Fitting	-
31	T77613	2	O-Ring	-
32	38H1161	1	Adapter Fitting	-
33	T77857	1	O-Ring	-
34	R26375	1	O-Ring	-
35	38H1004	1	Elbow Fitting	-
36	R26448	1	O-Ring	-
37	T77613	1	O-Ring	-
38	T74416	1	Clamp	-
39	19M7402	1	Cap Screw	M10 X 25
40	AT82210	1	Switch	Differential Lock Switch
41	AT156431	1	Wiring Harness	Foot Switch Harness
42	AT375600	1	Wiring Harness	Selective Flow Harness
43	57M9726	1	Elec. Connector Housing	To Operator Station, X66
43	R78065	2	Elec. Connector Terminal	-
44	57M7254	1	Elec. Connector Housing	A Connector
44	57M10770	2	Elec. Connector Terminal	-
44	57M9883	2	Elec. Connector Cable Seal	-
45	57M7289	1	Elec.Connect Locking Device	-
46	R44302	2	Tie Band	-

Selective Flow Control Valve Hydraulics Kit
