Открытый узел

Ride Control (244920 - )

Ride Control (244920 - )

Ride Control (244920 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

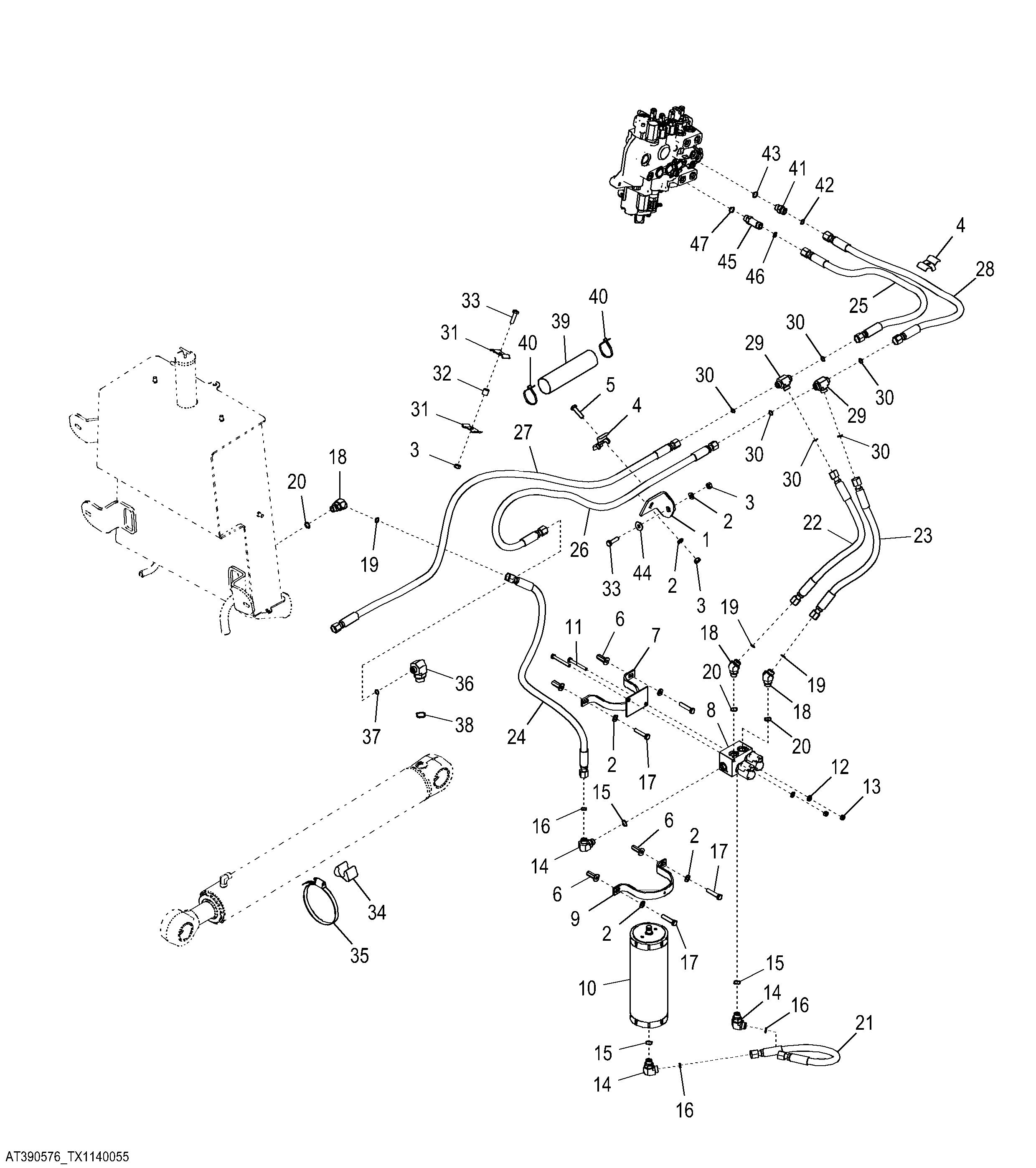

Ride Control (244920 - )

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T165864	1	Angle	-
2	24M7239	6	Washer	10.700 X 21 X 2.500 mm
3	14M7274	3	Nut	M10
4	KV22609	2	Clamp	-
5	19M8637	1	Cap Screw	M10 X 40
6	T148410	4	Nut	-
7	AT189210	1	Clamp	-
8	AT443892	1	Solenoid Hydraulic Valve	Metric Fitting Ports, ALSO ORDER 38H5003, 38H5017, (2) 38H5071, (4) T77857, AND (4) 51M7043 SUB FOR AT310818
8	AT280440	2	Solenoid Hydraulic Valve	-
8	AT280441	2	Solenoid Valve Coil	-
8	14M7477	2	Nut	M18
8	E71998	1	Back-Up Ring	13.200 X 15.900 X 0.810 mm (0.520" X 0.626" X 0.032")
8	R28776	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
8	R47151	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
9	T166761	1	Clamp	-
10	T164128	1	Label	French Accumulator Warning
10	AT196760	1	Valve Kit	-
10	T164129	1	Label	Spanish Accumulator Warning
10	T164124	1	Label	English Accumulator Warning
10	AT196351	1	Hydraulic Accumulator	Requires Label, T164124, T164128 OR T164129
11	19M7663	2	Cap Screw	M8 X 70
12	24M7238	2	Washer	8.700 X 17 X 2 mm
13	14M7273	2	Nut	M8
14	38H1005	3	Elbow Fitting	-
15	R26375	3	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
16	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
17	19M8600	4	Cap Screw	M10 X 50
18	38H1046	3	Elbow Fitting	-
19	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
20	R26375	3	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
21	AT199640	1	Hydraulic Hose	Fabricate
22	AT199640	1	Hydraulic Hose	Fabricate
23	AT199640	1	Hydraulic Hose	Fabricate
24	AT390582	1	Hydraulic Hose	Fabricate
25	AT391089	1	Hydraulic Hose	Fabricate
26	AT391090	1	Hydraulic Hose	Fabricate
27	AT391091	1	Hydraulic Hose	Fabricate
28	AT404322	1	Hydraulic Hose	Fabricate
29	38H5031	2	Tee Fitting	-
30	T77857	6	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	R46919	2	Half Clamp	-
32	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
33	19M7550	2	Cap Screw	M10 X 35
34	T105773	1	Guide	-
35	AC15595	1	Clamp	-
36	38H1013	1	Elbow Fitting	-
37	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
38	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
39	-	1	Part 49	MF T78606, CTL 25.40 cm (10.00 in)
40	R44302	2	Tie Band	-
41	38H1161	1	Adapter Fitting	-
42	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
43	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
44	24M7296	1	Washer	10.500 X 30 X 2.500 mm
45	38H1213	1	Adapter Fitting	-
46	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
47	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
48	38H5003	1	Adapter Fitting	Not Illustrated
49	38H5017	1	Elbow Fitting	Not Illustrated
50	38H5071	2	Elbow Fitting	Not Illustrated
51	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
52	51M7043	4	O-Ring	15.300 X 2.200 mm, Not Illustrated
