Mechanical Suspension Seat, Vinyl

Нет текстового описания

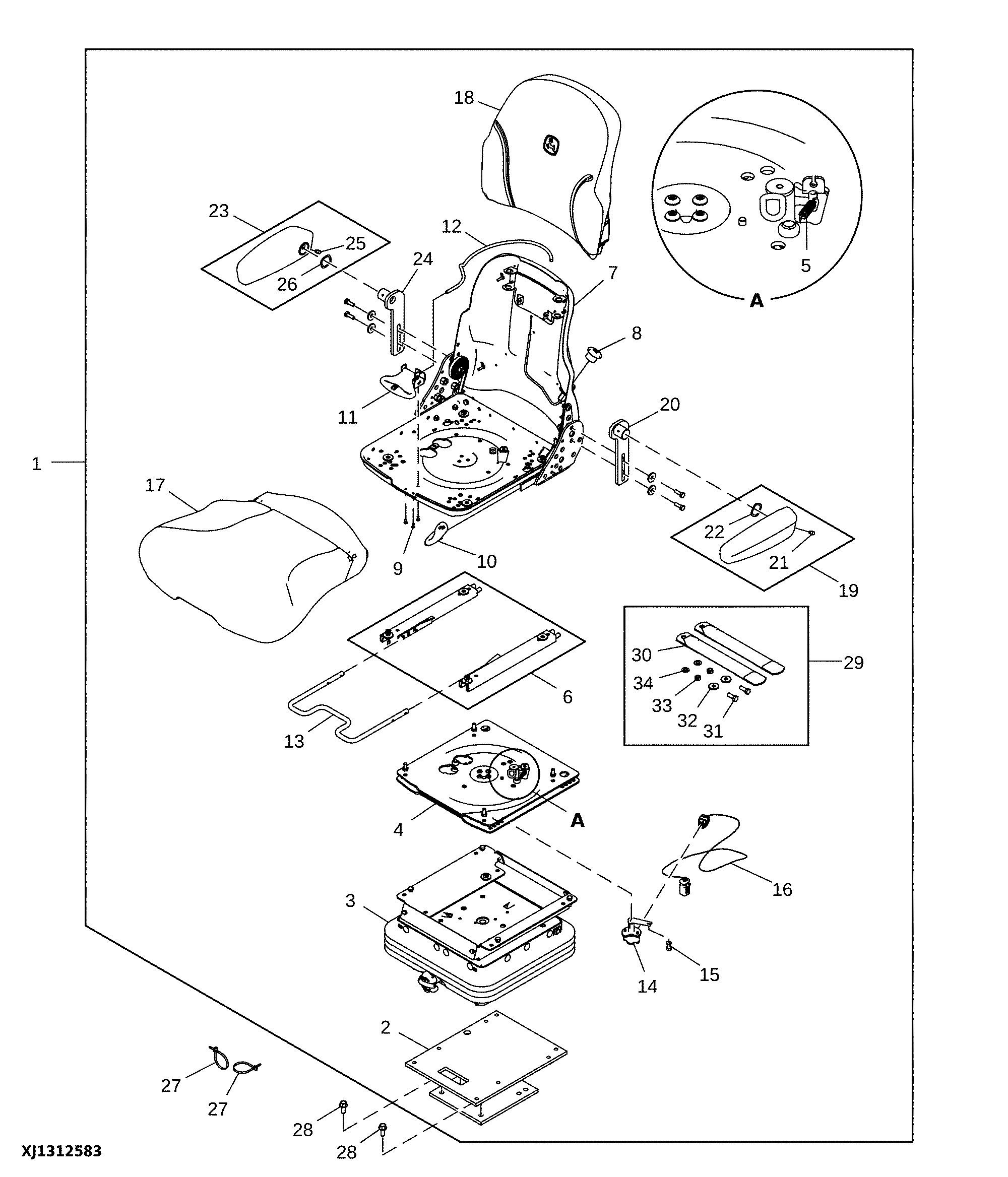

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT471523	1	Seat	-
1	AT387963	1	Seat	Mechanical Suspension Vinyl, ORDER AT471523
2	AT388674	1	Pedestal	-
3	AT388675	1	Seat Suspension	-
4	AT388678	1	Swivel	NLA, ORDER AT471526
4	AT471526	1	Swivel	Includes Components On Separate Page, AT475535 AND AT475534 SUB FOR AT388678
5	T355167	1	Spring	-
6	AT393463	1	Seat Slide Track Kit	Includes Hardware
7	AT388665	1	Pan	Seat Top
8	AT388666	1	Seat Knob Kit	Lumbar Knob
9	-	3	Part 11	NLA
10	AT388668	1	Seat Knob Kit	Recliner Knob Kit
11	AT388677	1	Handle	USE WITH AT388678
11	AT475535	1	Handle Kit	NLA, ORDER AT471526
12	AT393465	1	Seat Adjustment Cable Kit	NLA, ORDER AT475534
12	AT475534	1	Seat Adjustment Cable Kit	-
13	AT388679	1	Lever Kit	Slide Control
14	AT388680	1	Switch Kit	Swivel Sensor
15	T355169	1	Nut	-
16	AT393460	1	Wiring Harness	Swivel Sensor
17	AT522506	1	Cushion Kit	Seat Cushion Charcoal Gray Vinyl, SUB FOR AT388669; USE WITH AT522505
17	AT388669	1	Cushion	Seat Cushion Light Gray Vinyl, USE WITH AT388670
18	AT522505	1	Cushion Kit	Backrest Charcoal Gray Vinyl, SUB FOR AT388670; USE WITH AT522506
18	AT388670	1	Cushion Kit	Backrest Light Gray Vinyl, USE WITH AT388669
19	AT312728	1	Armrest Kit	LH
20	AT394649	1	Bracket	LH
21	T120544	1	Screw	-
22	T120545	1	Washer	-
23	AT312730	1	Armrest Kit	RH
24	AT394650	1	Bracket	RH
25	T120544	1	Screw	-
26	T120545	1	Washer	-
27	R44302	2	Tie Band	-
28	19M7785	4	Screw	M10 X 25
29	AT179693	1	Strap Kit	-
30	-	2	Part 36	NLA, ORDER AT179693
31	19H1731	2	Cap Screw	3/8" X 1"
32	24H1305	2	Washer	13/32" X 13/16" X 0.065"
33	M47031	2	Lock Nut	-
34	24H1309	2	Washer	13/32" X 1-1/16" X 0.120"
35	AT384611	1	Retainer Kit	Boot Retainer Kit Not Illustrated, USE WITH AT388675
36	AT477573	1	Seat Kit	Components On Separate Page Not Illustrated
37	AT388671	1	Pan	Recliner Components On Separate Page Not Illustrated
38	AT388667	1	Seat Kit	Components On Separate Page Not Illustrated
39	19H2676	1	Cap Screw	3/8" X 1", Not Illustrated
