Открытый узел

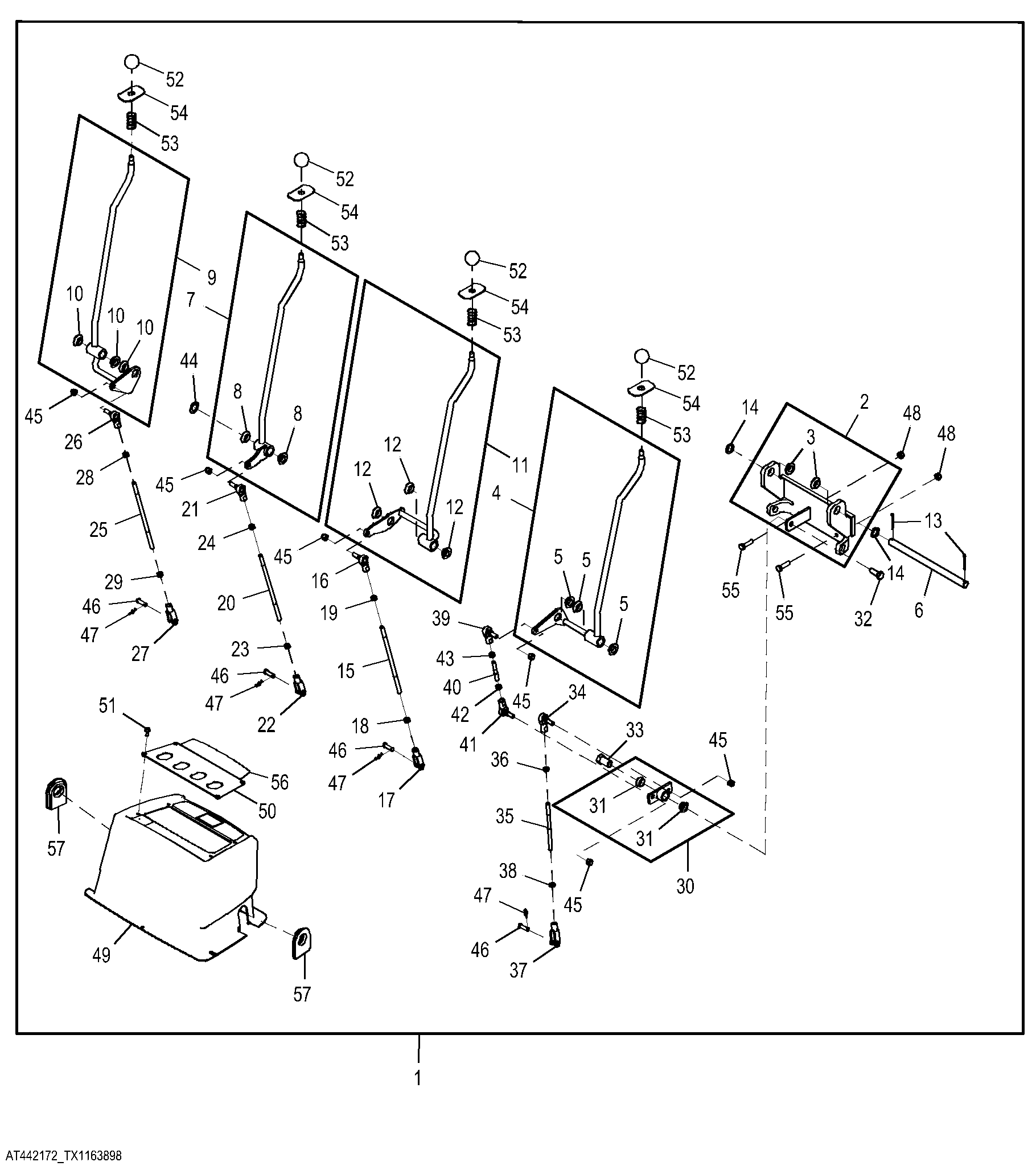

Four Lever Backhoe Control Valve Linkage Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T163995	4	Screw	Spool Spring
1	AT442172	1	Lever Kit	Whole Goods
1	T163955	1	Spring	Backhoe Bucket Valve
1	T366747	3	Spring	Boom, Crowd, and Swing Backhoe Valves
2	AT438218	1	Control Lever	-
3	T166097	2	Bearing	-
4	AT438219	1	Control Lever	Bucket
5	T166097	3	Bearing	-
6	T344791	1	Pin Fastener	-
7	AT438223	1	Control Lever	Boom
8	T166097	2	Bearing	-
9	AT438224	1	Control Lever	Swing
10	T166097	3	Bearing	-
11	AT438221	1	Control Lever	Crowd
12	T166097	3	Bearing	-
13	11M7087	2	Cotter Pin	4 X 40 mm
14	24H1746	2	Washer	25/32" X 1-1/8" X 0.120"
15	T184354	1	Rod	-
16	AT169087	1	Ball Joint	-
17	T140328	1	Yoke	-
18	14H913	1	Nut	3/8"
19	14H774	1	Nut	3/8"
20	T184354	1	Rod	-
21	AT169087	1	Ball Joint	-
22	T140328	1	Yoke	-
23	14H913	1	Nut	3/8"
24	14H774	1	Nut	3/8"
25	T184354	1	Rod	-
26	AT169087	1	Ball Joint	-
27	T140328	1	Yoke	-
28	14H774	1	Nut	3/8"
29	14H913	1	Nut	3/8"
30	AT446348	1	Bellcrank	-
31	T125808	2	Bushing	-
32	19H3030	1	Cap Screw	1/2" X 1-1/4"
33	T141126	1	Spacer	Two Lever Applications Only, ALSO ORDER T161379 AND 14H865 FOR
33	T161379	1	Spacer	Two Lever Applications Only, FOR
33	14H865	1	Nut	1/2", Two Lever Applications Only, FOR
34	AT169087	1	Ball Joint	-
35	T158812	1	Stud	-
36	14H774	1	Nut	3/8"
37	T140328	1	Yoke	-
38	14H913	1	Nut	3/8"
39	AT169087	1	Ball Joint	-
40	T344897	1	Rod	-
41	AT440973	1	Ball Joint	-
42	14H913	1	Nut	3/8"
43	14H774	1	Nut	3/8"
44	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
45	M68954	6	Lock Nut	-
46	R65563	4	Pin Fastener	-
47	T202956	4	Retainer	-
48	14M7274	2	Nut	M10
49	AT189272	1	Cover	-
50	AT438349	1	Cover	-
51	19M7775	4	Screw	M6 X 16
52	39M1709	4	Knob	-
53	T185085	4	Spring	-
54	T209588	4	Cover	-
55	19M7550	2	Cap Screw	M10 X 35
56	T345499	1	Label	Four Lever Backhoe Controls
57	T166224	2	Grommet	-

Four Lever Backhoe Control Valve Linkage Kit

Нет текстового описания
