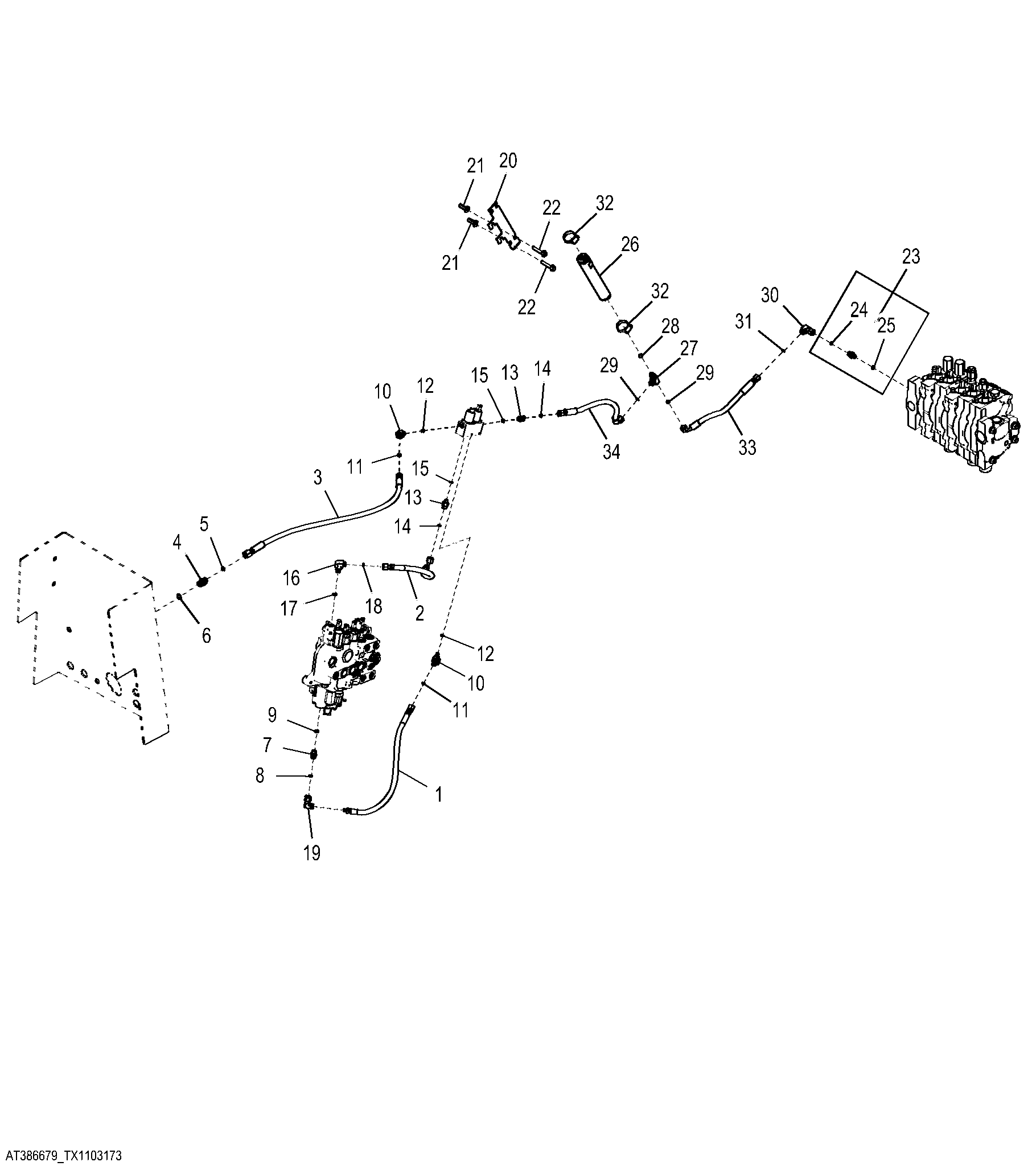

Single Lever Loader Control Plumbing, Manual

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT385527	1	Hydraulic Hose	Fabricate
2	AT385526	1	Hydraulic Hose	Fabricate
3	AT397842	1	Hydraulic Hose	Fabricate
4	38H1161	1	Adapter Fitting	-
5	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
6	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
7	38H1160	1	Adapter Fitting	-
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	38H1564	2	Elbow Fitting	-
11	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	R28782	2	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
13	38H1309	2	Adapter Fitting	-
14	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
15	R28782	2	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
16	38H1004	1	Elbow Fitting	-
17	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
18	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	AT195201	1	Elbow Fitting	-
20	T300004	1	Bracket	-
21	T148410	2	Nut	-
22	19M7785	2	Screw	M10 X 25
23	AT384266	1	Check Valve	-
24	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
25	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
26	T215217	1	Label	Accumulator Spanish
26	T290050	1	Label	Accumulator Russian
26	T215216	1	Label	Accumulator French
26	T180944	1	Label	Accumulator English
26	T26209	1	Ring	10.820 X 1.778 mm (0.426" X 0.070")
26	AT196760	1	Valve Kit	INCLUDES T26209
26	AT376347	1	Accumulator Kit	Uncharged Accumulator, INCLUDES AT196760, T180944, T215216, T215217 AND T290050
27	38H1023	1	Tee Fitting	-
28	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
29	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
30	38H1094	1	Elbow Fitting	-
31	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
32	AR44217	2	Clamp	-
33	AT404466	1	Hydraulic Hose	Fabricate
34	AT404466	1	Hydraulic Hose	Fabricate

Single Lever Loader Control Plumbing, Manual
