№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT374476	1	Wiring Harness	Canopy Wiring Harness
2	57M10823	1	Clamp	-
3	T143596	1	Grommet	-
4	57M9555	2	Clip	-
5	T210282	4	Elec. Connector Housing	-
6	R78053	2	Electrical Connector Assy	-
7	57M7752	1	Elec. Connector Housing	X21, To Transmission Harness
7	57M10781	15	Elec. Connector Terminal	-
7	57M8264	9	Elec. Connector Terminal	-
7	R78069	3	Elec. Connector Cavity Plug	-
8	57M7750	1	Elec. Connector Housing	X20, To Engine Harness
8	R78069	9	Elec. Connector Cavity Plug	-
8	57M10781	4	Elec. Connector Terminal	-
8	57M8264	9	Elec. Connector Terminal	-
9	57M8484	1	Elec. Connector Housing	A03, Monitor
9	57M9884	8	Elec. Connector Cable Seal	-
9	57M9446	8	Elec. Connector Seal	-
9	57M8300	8	Elec. Connector Terminal	-
10	57M8231	1	Electrical Connector Assy	-
11	57M9919	1	Elec. Connector Accessory	-
12	57M7255	1	Elec. Connector Housing	B21, Hand Throttle
12	57M9920	3	Elec. Connector Terminal	-
12	57M9883	3	Elec. Connector Cable Seal	-
13	57M7290	1	Elec. Connector Accessory	-
14	R78065	16	Elec. Connector Terminal	-
14	R78069	3	Elec. Connector Cavity Plug	-
14	57M8634	2	Elec. Connector Housing	X52, Pilot Control Inline
15	57M8013	2	Elec.Connect Locking Device	-
16	57M7328	1	Elec. Connector Housing	S10, Diffrential Lock Switch
16	57M10770	2	Elec. Connector Terminal	-
16	57M9910	1	Elec. Connector Cable Seal	-
16	57M9883	1	Elec. Connector Cable Seal	-
17	57M9712	1	Elec. Connector Accessory	-
18	57M9572	3	Elec. Connector Terminal	-
18	57M7741	3	Elec. Connector Terminal	-
18	57M9207	1	Elec. Connector Housing	B20, Engine Speed Control Pedal
19	57M10208	1	Elec. Connector Housing	K10, Ignition Relay
19	57M10208	1	Elec. Connector Housing	K20, Accessory Relay
19	57M10211	4	Elec. Connector Terminal	-
19	57M10210	4	Elec. Connector Terminal	-
19	57M11184	4	Elec. Connector Seal	-
19	57M10213	4	Elec. Connector Cable Seal	-
20	RE46734	1	Electrical Connector Assy	-
21	LVA15613	1	Electrical Connector Assy	-
22	57M9940	3	Elec. Connector Accessory	-
22	T339027	1	Fuse Box	Cover
23	57M9733	1	Elec. Connector Housing	X68, To Ride Control Harness
23	57M10781	2	Elec. Connector Terminal	-
24	57M9784	1	Elec. Connector Housing	X81, Loader Coupler Inline
24	57M10781	3	Elec. Connector Terminal	-
25	57M9786	1	Elec. Connector Housing	B09, Seat Position Inline
25	57M10321	6	Elec. Connector Terminal	-
26	57M7476	1	Elec. Connector Housing	X26, To Roof Harness
26	57M7541	10	Elec. Connector Terminal	-
27	RE12365	1	Electrical Connector Assy	-
28	R78055	1	Electrical Connector Assy	-
29	AT475421	1	Fuse Box	-
29	AT346012	1	Fuse Box	NLA; ORDER AT475421
30	57M10366	1	Elec. Connector Housing	J3, VCU
30	57M10217	10	Elec. Connector Terminal	-
30	57M10334	4	Elec. Connector Cavity Plug	-
30	57M10333	17	Elec. Connector Cavity Plug	-
30	57M10617	4	Elec. Connector Housing	-
30	57M10219	6	Elec. Connector Seal	-
31	57M10219	2	Elec. Connector Seal	-
31	57M10218	3	Elec. Connector Seal	-
31	57M10333	27	Elec. Connector Cavity Plug	-
31	57M10617	4	Elec. Connector Housing	-
31	57M10217	2	Elec. Connector Terminal	-
31	57M10332	3	Elec. Connector Terminal	-
31	57M10124	1	Elec. Connector Housing	J2, VCU
31	57M10330	13	Elec. Connector Terminal	-
32	57M10401	2	Elec. Connector Accessory	-
33	57M8529	1	Electrical Connector Cap	-
34	57M9821	1	Elec. Connector Housing	X65, To Third Function Auxiliary Harness
34	57M10781	4	Elec. Connector Terminal	-
35	57M9776	1	Elec. Connector Housing	X66, To Selective Flow Harness
35	57M10781	2	Elec. Connector Terminal	-
36	57M8009	1	Elec.Connect Locking Device	-
37	57M9817	1	Elec. Connector Housing	X35, Brake Charge Inline
37	57M10321	4	Elec. Connector Terminal	-
38	57M8018	1	Electrical Connector Assy	-
39	57M8131	1	Electronic Terminator	-
40	57M8019	1	Elec. Connector Terminal	-
41	RE12363	2	Electrical Connector Assy	-
42	57M9746	1	Elec. Connector Housing	X35
43	57M9452	1	Elec. Connector Housing	X38 Minus, Left Power Port Minus
43	57M9452	1	Elec. Connector Housing	X38 Plus, Left Power Port Plus
43	57M9454	2	Elec. Connector Terminal	-

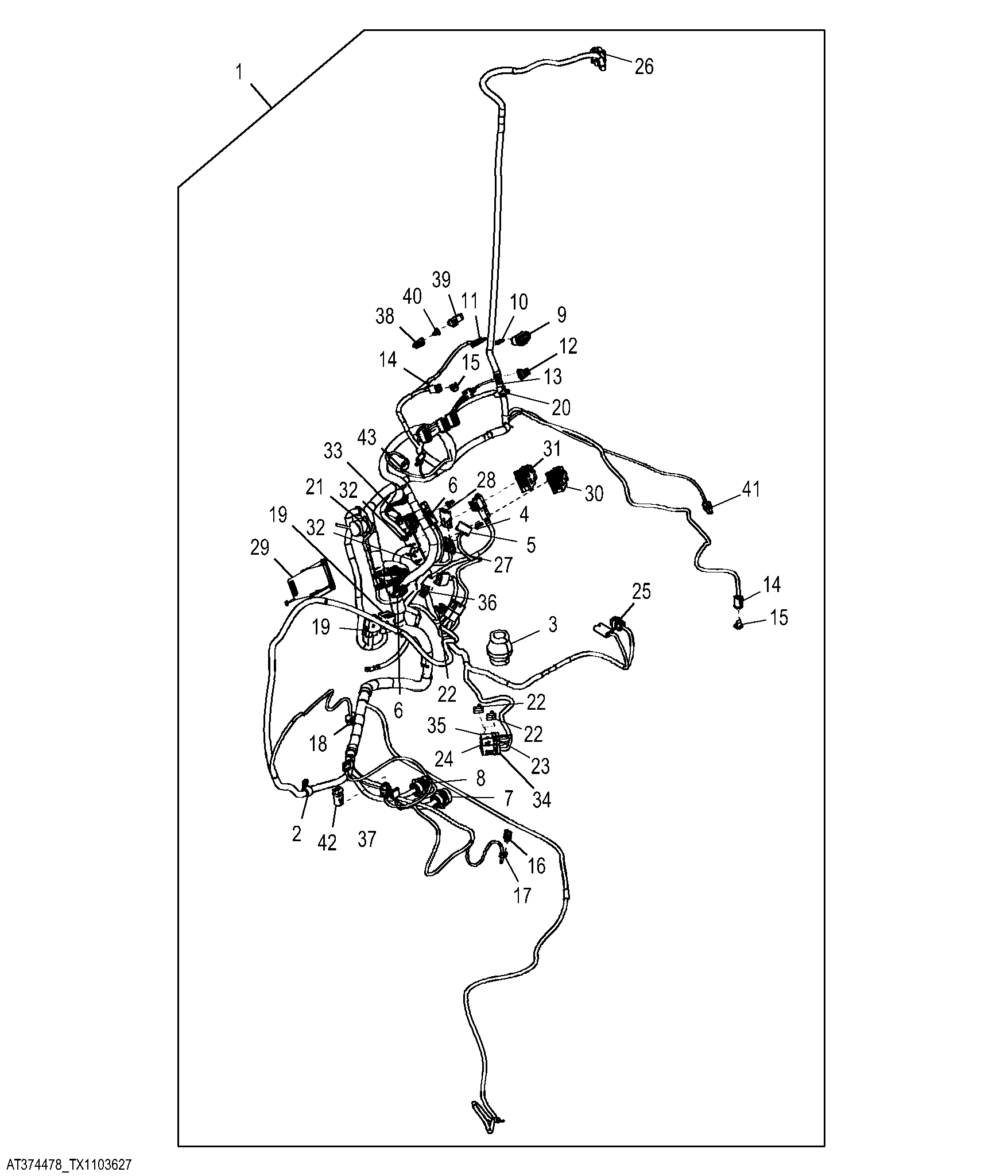

Canopy Wiring Harness
