Открытый узел

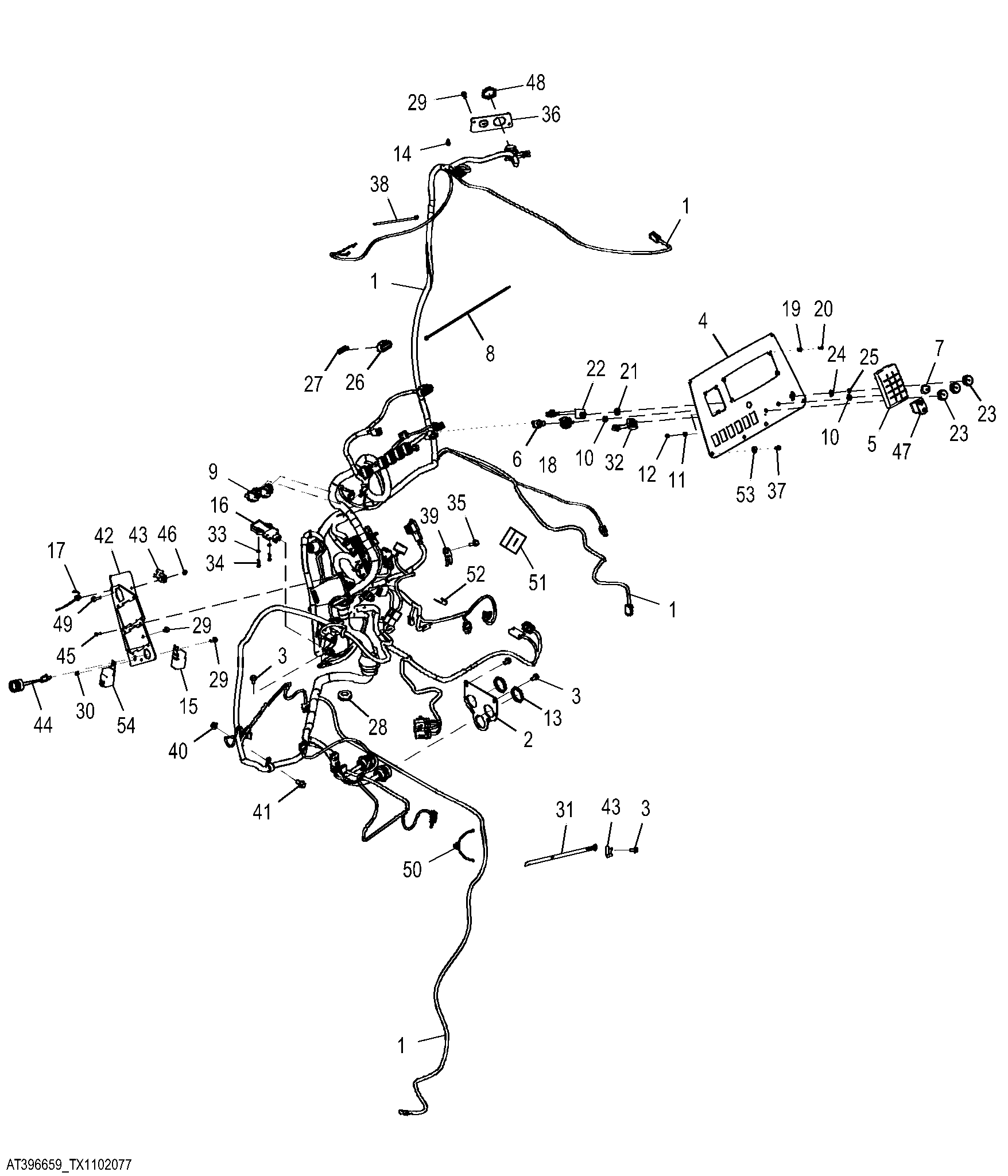

Cab Wiring Harness Hardware (Russia)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT397976	1	Wiring Harness	Components on Separate Page
2	T289565	1	Bracket	Bulkhead Electrical System Bracket
3	19M7865	4	Screw	M8 X 16
4	T318459	1	Instrument Panel	-
5	AT372918	1	Switch	Fifteen Button Module
6	R39554	1	Switch	Horn
7	T55501	1	Cap	-
8	H77698	18	Tie Band	-
9	GY20126	2	Socket Outlet	12V
10	R44165	2	Lock Nut	-
11	24M7054	3	Washer	6.400 X 12 X 1.600 mm
12	14M7360	3	Lock Nut	M5
13	57M8035	2	Nut	-
14	37M7089	1	Screw	M6 X 12
15	57M11184	2	Elec. Connector Seal	-
15	57M10213	2	Elec. Connector Cable Seal	-
15	57M10211	2	Elec. Connector Terminal	-
15	AL156697	1	Relay	70A, , K10, Ignition Relay
15	57M10210	2	Elec. Connector Terminal	-
16	AT374068	1	Diode	Flyback Diode
17	T209627	7	Clamp	-
18	RE43497	1	Switch	Fan Speed
19	T82792	4	Nut	-
20	T82791	4	Screw	-
21	24M7028	1	Washer	10.500 X 20 X 2 mm
22	AT340550	1	Potentiometer	Engine Speed Control Dial
23	AL76568	3	Knob	-
24	T226427	1	Washer	-
25	R78035	1	Push Nut	-
26	57M9835	1	Elec. Connector Housing	-
27	57M10201	1	Elec. Connector Accessory	-
28	N370375	1	Grommet	-
29	19M7775	4	Screw	M6 X 16
30	14M7528	1	Lock Nut	M6
31	H224073	4	Tie Band	-
32	AT219733	1	Temperature Switch	AC Heater Temperature Switch, ORDER AT515826; INCLUDES 57M8843
32	57M8843	1	Elec. Connector Housing	-
32	AT515826	1	Temperature Switch	AC Heater Temperature Switch
33	24M7027	2	Washer	5.300 X 10 X 1 mm
34	19M7373	2	Cap Screw	M5 X 20
35	19M7868	4	Screw	M8 X 30
36	T282186	1	Bracket	Roof Harness
37	21M7292	6	Screw	M6 X 16
38	R44302	14	Tie Band	-
39	T210717	1	Bracket	Harness Mounting Bracket
40	14M7296	1	Flange Nut	M10
41	19M7784	1	Screw	M10 X 20
42	T256546	1	Bracket	Load Center
43	H224072	2	Clamp	-
44	AT178526	1	Audible Warning Alarm	Monitor Warning
45	19M7372	4	Cap Screw	M5 X 16
46	14M7303	1	Flange Nut	M6
47	AT343956	1	Switch	Headlight Dimmer
48	57M8428	1	Electrical Connector Assy	-
49	19M7833	1	Screw	M6 X 35
50	T248286	4	Clamp	-
51	T299592	1	Isolator	-
52	AH89557	1	Clip	-
53	24H1821	6	Washer	9/32" X 47/64" X 1/16"
54	AL156697	1	Relay	70A, , K20, Accessory Relay
54	57M10211	2	Elec. Connector Terminal	-
54	57M10210	2	Elec. Connector Terminal	-
54	57M10213	2	Elec. Connector Cable Seal	-
54	57M11184	2	Elec. Connector Seal	-
