Открытый узел

Selective Flow Control Valve Hydraulics, Pilot

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT323347	1	Selective Control Valve	Components On Separate Page
2	AT325816	1	Hydraulic Hose	Valve Supply Fabricate
3	AT325818	1	Hydraulic Hose	Load Sense Drain Fabricate
4	38H1309	1	Adapter Fitting	-
5	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
6	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
7	38H1435	1	Elbow Fitting	-
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
10	AT189078	1	Elbow Fitting	-
11	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
12	AT117631	1	Check Valve	-
13	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1163	1	Adapter Fitting	-
15	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
16	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
17	AT280804	1	Bracket	-
18	19M8600	2	Cap Screw	M10 X 50
19	24M7239	10	Washer	10.700 X 21 X 2.500 mm
20	19M8183	3	Cap Screw	M10 X 90
21	38H1194	1	Adapter Fitting	-
22	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
23	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
24	14M7274	6	Nut	M10
25	R36636	1	Drain Plug	-
26	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
27	AT195613	1	Hydraulic Hose	Fabricate
28	38H1004	6	Elbow Fitting	ALSO ORDER T77613 AND R26448
29	R26448	6	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
30	T77613	6	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
31	38H1205	1	Tee Fitting	-
32	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
33	AT325817	1	Hydraulic Hose	Spam Return Fabricate
34	AT371355	1	Hydraulic Hose	Fabricate
35	T74416	1	Clamp	-
36	19M7550	1	Cap Screw	M10 X 35
37	38H1161	1	Adapter Fitting	-
38	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
39	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
40	38H1009	2	Elbow Fitting	-
41	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
42	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
43	38H1160	6	Adapter Fitting	-
44	T77613	6	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
45	R26448	6	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
46	62H1021	1	Adapter Fitting	SUB FOR AT195201
46	AT193365	1	Seal Kit	-
47	62H1001	4	Adapter Fitting	SUB FOR AT187666; INCLUDES R26448
47	AT193365	1	Seal Kit	-
48	AT187669	4	Adapter Fitting	-
49	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
50	38H1173	1	Adapter Fitting	-
51	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
52	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
53	AH125760	1	Hyd. Quick-Connect Coupler	-
54	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
55	R77175	1	Cover	-
56	62H1053	1	Adapter Fitting	-
57	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
58	AT369671	1	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
59	AT371352	1	Hydraulic Hose	ALSO ORDER 62H1042 AND T77613
60	AT369717	1	Hydraulic Hose	Fabricate
61	AT369717	1	Hydraulic Hose	Fabricate
62	AT369715	1	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
63	AT369715	1	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613
64	AT384190	1	Hydraulic Hose	Fabricate, ALSO ORDER 62H1042 AND T77613

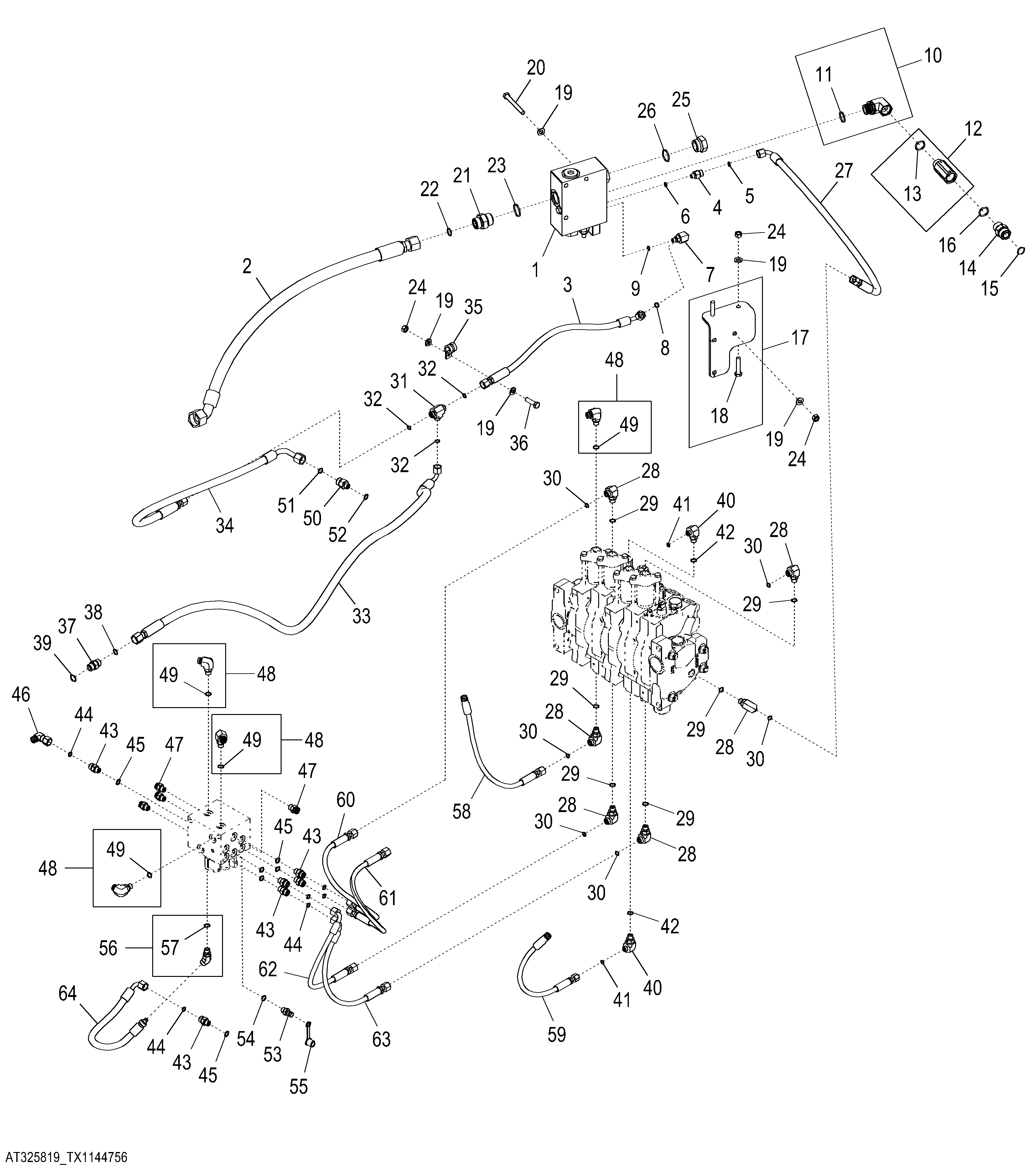

Selective Flow Control Valve Hydraulics, Pilot
