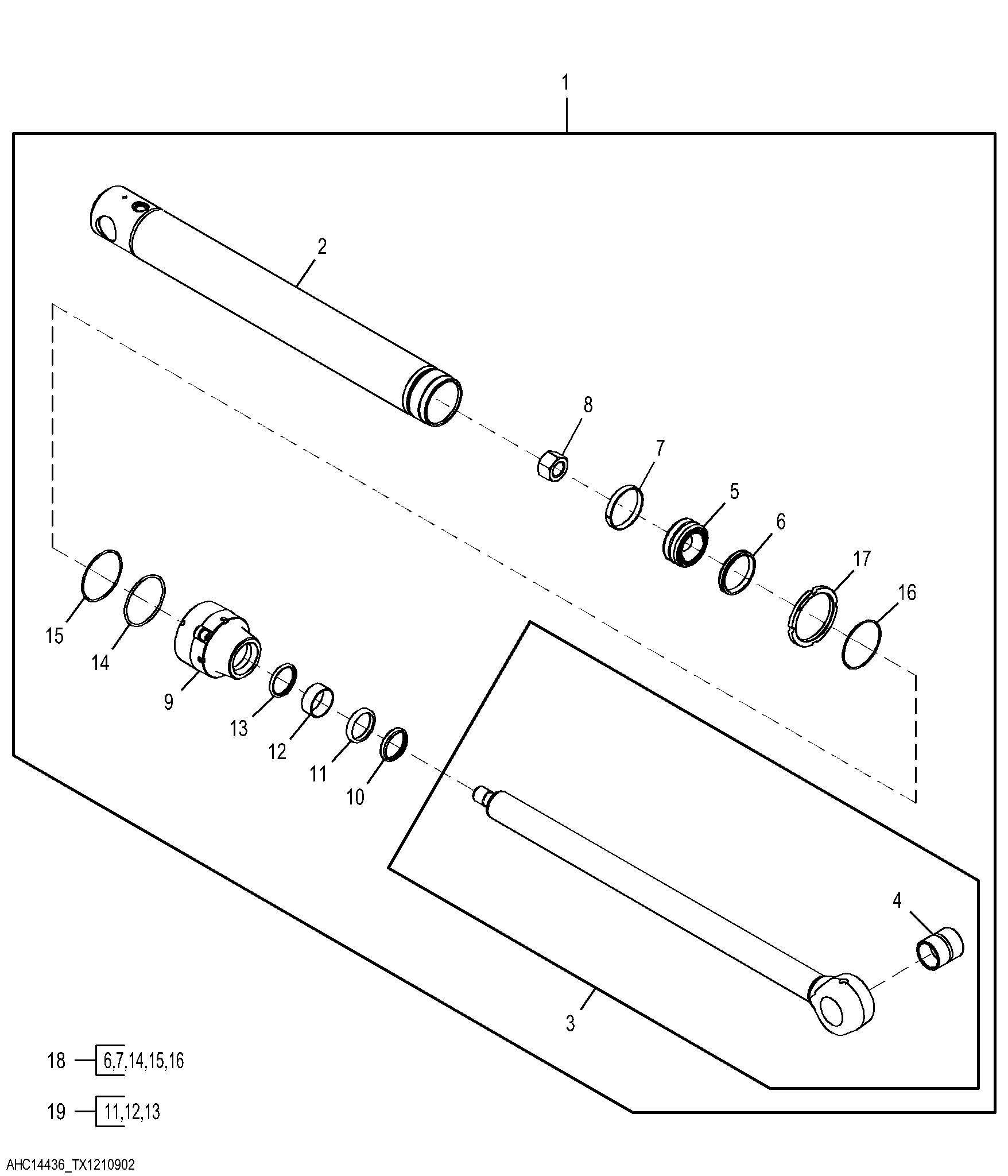

Replacement Bucket Cylinder and Repair Kits

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AHC19388	1	Hydraulic Cylinder	Requires Backhoe Bucket Cylinder, For Rod Side 38H5019, 51M7047, AND T77858, For Head Side 38H5206 (Use with Extendable Dipperstick) OR 38H5020 (Use with Standard Dipperstick), 51M7048 AND T76938
1	AHC14436	1	Hydraulic Cylinder	Requires Backhoe Bucket Cylinder, For Rod Side 38H5019, 51M7047, AND T77858, For Head Side 38H5206, 51M7048 AND T76938; SUB FOR AH220411
2	AHC14528	1	Hydraulic Cylinder Barrel	USE WITH AHC14436
2	AHC19386	1	Hydraulic Cylinder Barrel	USE WITH AHC19388
3	AH160007	1	Hydraulic Cylinder Rod	-
4	H167293	1	Bushing	-
5	HC16825	1	Piston	SUB FOR H160456
6	AH138082	1	Seal	-
7	H155543	1	Scraper Ring	-
8	H155561	1	Nut	-
9	HC14670	1	Hydr. Cylinder Rod Guide	-
10	AHC11455	1	Seal	-
11	H158436	1	Seal	-
12	H158437	1	Wear Ring	-
13	AH150932	1	Seal	-
14	T41356	1	O-Ring	123.190 X 5.334 mm (4.850" X 0.210")
15	H155540	1	Back-Up Ring	-
16	C11884	1	O-Ring	120.244 X 3.531 mm (4-47/64" X 0.139")
17	H180431	1	Nut	-
18	AH212585	1	Hydraulic Cylinder Kit	Bore Seal Kit, NLA; ORDER AHC20489
18	AHC20489	1	Hydraulic Cylinder Kit	-
19	AH156466	1	Hydraulic Cylinder Kit	Rod Seal Kit, NLA; ORDER AHC16724
19	AHC16724	1	Hydraulic Cylinder Kit	-

Replacement Bucket Cylinder and Repair Kits
