Multipurpose Coupler Bucket Kit 2.44 m (96.000 in) 1.00 m³ (1.31 yd³)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

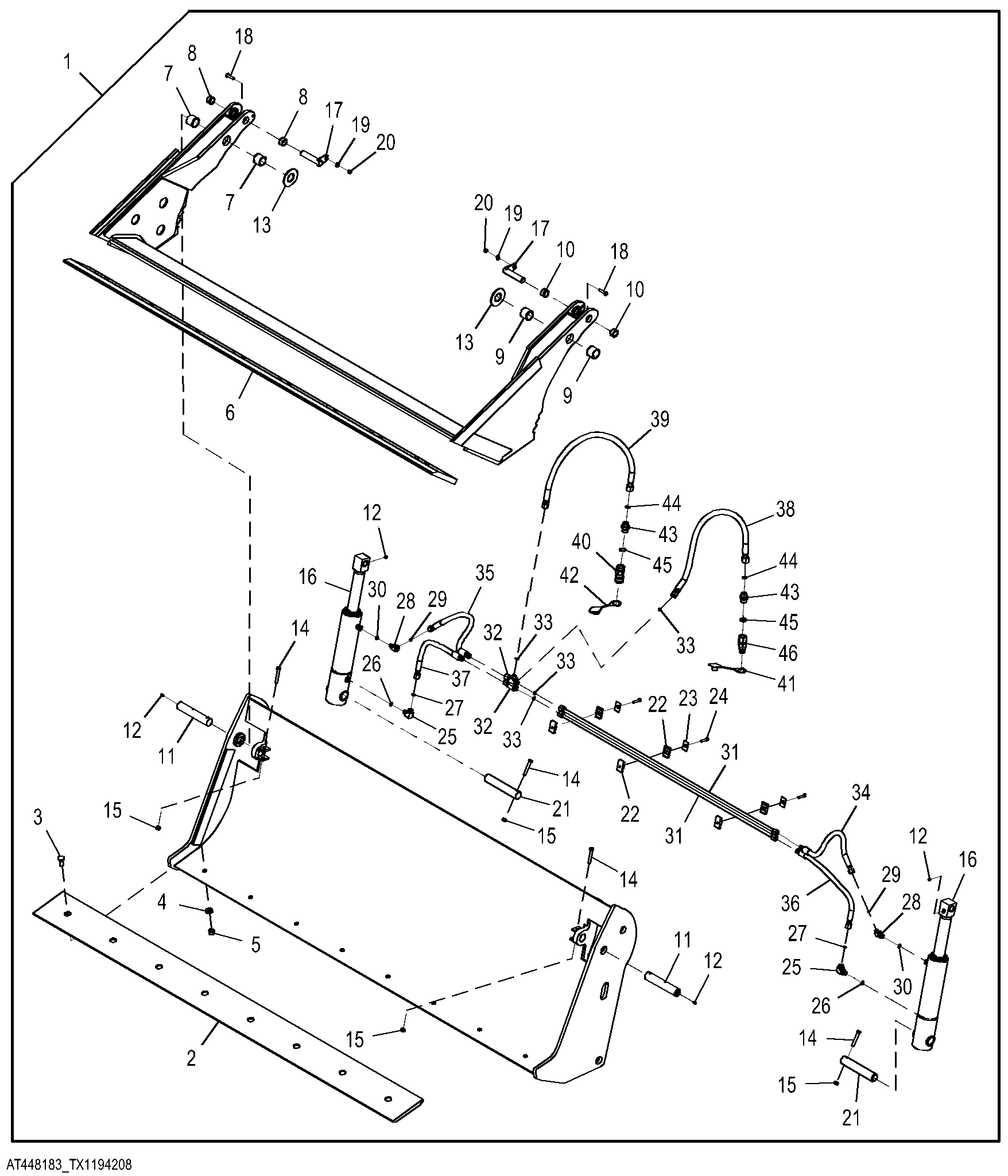

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1474	1	Reducer	Not Illustrated Requires, T77857
1	AT448183	1	Multi-Purpose Bucket	WHOLE GOODS
2	T143804	1	Cutting Edge	Auxiliary Edge
3	09H1776	8	Bolt	5/8" X 1-3/4"
4	24M7241	8	Washer	17 X 34 X 4 mm
5	14H1039	8	Nut	5/8"
6	T128539	1	Dura-Max Cutting Edge	Cutting Edge
7	T128533	2	Bushing	-
8	T166433	2	Bushing	-
9	T128533	2	Bushing	-
10	T166433	2	Bushing	-
11	T328756	2	Pin	-
12	JD7844	4	Lubrication Fitting	-
13	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
14	19H2106	4	Cap Screw	7/16" X 2-3/4"
15	K40006	4	Lock Nut	-
16	AHC15426	2	Hydraulic Cylinder	Components On Separate Page
17	AT425236	2	Pin	-
18	19H1800	2	Cap Screw	3/8" X 1-1/2"
19	24M7239	2	Washer	10.700 X 21 X 2.500 mm
20	T54568	2	Lock Nut	-
21	T352251	2	Pin	-
22	H135156	6	Clamp	-
23	H121168	3	Plate	-
24	19H1906	3	Cap Screw	5/16" X 1-1/2"
25	38H5036	2	Elbow Fitting	-
26	51M7042	2	O-Ring	13.300 X 2.200 mm
27	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
28	38H5154	2	Elbow Fitting	-
29	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
30	51M7042	2	O-Ring	13.300 X 2.200 mm
31	AT448004	2	Tube	-
32	38H5069	2	Tee Fitting	-
33	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
34	AT448005	1	Hydraulic Hose	Fabricate, INCLUDES T77857
34	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
35	AT448005	1	Hydraulic Hose	Fabricate, INCLUDES T77857
35	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
36	AT448009	1	Hydraulic Hose	Fabricate, INCLUDES T77857
36	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
37	AT448009	1	Hydraulic Hose	Fabricate, INCLUDES T77857
37	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
38	AT464761	1	Hydraulic Hose	Fabricate, SUB FOR AT448169
39	AT464761	1	Hydraulic Hose	Fabricate, SUB FOR AT448169
40	KV14216	1	Hyd. Quick-Connect Coupler	0.500 in, Female
41	T188880	1	Cap	Female
42	T188879	1	Cap	Male
43	38H3329	2	Adapter Fitting	-
44	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
45	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
46	AT312470	1	Hyd. Quick-Connect Coupler	0.500 in, Male

Multipurpose Coupler Bucket Kit 2.44 m (96.000 in) 1.00 m³ (1.31 yd³)
