Открытый узел

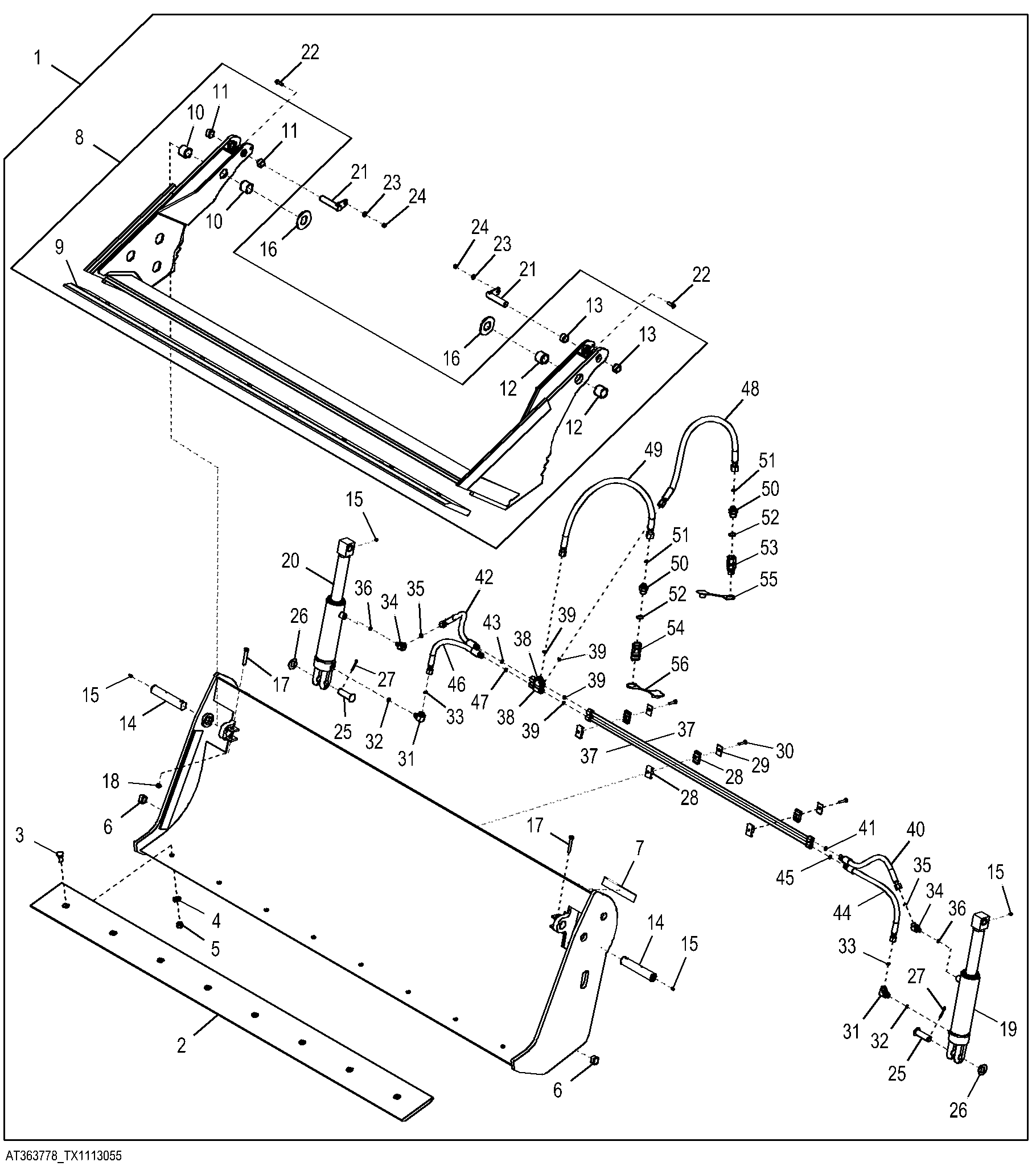

Multipurpose Coupler Bucket Kit 1.06 m³ (1.39 yd³)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT363778	1	Loader Bucket	Components On Separate Page, NLA, ORDER AT448183
2	T143804	1	Cutting Edge	239.40 cm (94.252 in)
3	09H1776	8	Bolt	5/8" X 1-3/4"
4	24M7241	8	Washer	17 X 34 X 4 mm
5	14H1039	8	Nut	5/8"
6	T166433	1	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
7	T213143	1	Label	Worksite Pro
8	AT189533	1	Hinge	Weldment
9	T128539	1	Dura-Max Cutting Edge	245.10 cm (96.496 in)
10	T128533	2	Bushing	38.800 X 47.680 X 38.100 mm (1.528" X 1.877" X 1-1/2")
11	T166433	2	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
12	T128533	2	Bushing	38.800 X 47.680 X 38.100 mm (1.528" X 1.877" X 1-1/2")
13	T166433	2	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
14	T167059	2	Pin	-
15	JD7844	4	Lubrication Fitting	-
16	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
17	19H2106	2	Cap Screw	7/16" X 2-3/4"
18	K40006	2	Lock Nut	-
19	AH210737	1	Hydraulic Cylinder	Components Listed On Separate Page
20	AH210737	2	Hydraulic Cylinder	Components Listed On Separate Page
21	AT190900	2	Pin	-
22	19H1732	2	Cap Screw	3/8" X 1-1/4"
23	24M7239	2	Washer	10.700 X 21 X 2.500 mm
24	T54568	2	Lock Nut	-
25	T191318	2	Pin Fastener	25.370 X 78.250 mm (0.999" X 3.081")
26	24H1138	2	Washer	1-1/16" X 2" X 0.134"
27	11H218	2	Cotter Pin	3/16" X 1-1/2"
28	H135156	6	Clamp	-
29	H121168	3	Plate	-
30	19H3552	3	Cap Screw	5/16" X 1-1/2"
31	38H1314	2	Elbow Fitting	-
32	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
33	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
34	38H1521	2	Elbow Fitting	-
35	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
36	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
37	AT448004	2	Tube	SUB FOR AT311142
38	38H1031	2	Tee Fitting	-
39	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	AT189822	1	Hydraulic Hose	Fabricate
41	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
42	AT189822	1	Hydraulic Hose	Fabricate
43	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
44	AT190701	1	Hydraulic Hose	13/16" X 520 mm (20-1/2") X 13/16", Fabricate
45	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
46	AT190701	1	Hydraulic Hose	13/16" X 520 mm (20-1/2") X 13/16", Fabricate
47	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
48	AT309936	1	Hydraulic Hose	-
49	AT309936	1	Hydraulic Hose	-
50	38H1175	2	Adapter Fitting	-
51	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
52	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
53	AT312470	1	Hyd. Quick-Connect Coupler	Male
54	KV14216	1	Hyd. Quick-Connect Coupler	Female
55	T188880	1	Cap	Female
56	T188879	1	Cap	Male

Multipurpose Coupler Bucket Kit 1.06 m³ (1.39 yd³)

Нет текстового описания
