Multipurpose Bucket with Teeth 1.06 m³ (1.39 yd³)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT188053	1	Loader Bucket	NLA SUB FOR AT192428 AND AT366307
1	AT366307	1	Multi-Purpose Bucket	NLA, ORDER AT188053. ALSO ORDER (32) 24M7242, (16) 19H3167, (16) 14H1058, (8) T25CA, (8) TF1U3252L, (8) T9J2258, AND (8) T3G9609
2	T143804	1	Cutting Edge	239.40 cm (94.252 in)
3	09H1776	8	Bolt	5/8" X 1-3/4"
4	24M7241	8	Washer	17 X 34 X 4 mm
5	14H1039	8	Nut	5/8"
6	T166433	1	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
7	AT189533	1	Hinge	-
8	T128539	1	Dura-Max Cutting Edge	245.10 cm (96.496 in)
9	T128533	2	Bushing	38.800 X 47.680 X 38.100 mm (1.528" X 1.877" X 1-1/2")
10	T166433	2	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
11	T167059	2	Pin	-
12	JD7844	4	Lubrication Fitting	-
13	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
14	19H2106	2	Cap Screw	7/16" X 2-3/4"
15	K40006	2	Lock Nut	-
16	AH210737	2	Hydraulic Cylinder	Components On Seperate Page
17	AT190900	2	Pin	-
18	19H3239	2	Cap Screw	3/8" X 1-1/4"
19	24M7239	2	Washer	10.700 X 21 X 2.500 mm
20	T54568	2	Lock Nut	-
21	T191318	2	Pin Fastener	25.370 X 78.250 mm (0.999" X 3.081")
22	24H1138	2	Washer	1-1/16" X 2" X 0.134"
23	11M7030	2	Cotter Pin	5 X 40 mm
24	T25CA	8	Bucket Tooth Adapter	-
25	24M7242	32	Washer	21.400 X 42 X 5 mm
26	19H3167	16	Cap Screw	3/4" X 3-1/4"
27	14H1058	16	Nut	3/4"
28	T3G9609	8	Washer	13.490 X 28.575 X 8.100 mm (17/32" X 1-1/8" X 0.319")
29	TF1U3252L	8	Tooth	-
30	T9J2258	8	Pin Fastener	-
31	H135156	6	Clamp	-
32	H121168	3	Plate	-
33	19H3552	3	Cap Screw	5/16" X 1-1/2"
34	38H1314	1	Elbow Fitting	-
35	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
36	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
37	38H1521	1	Elbow Fitting	-
38	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
39	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
40	AT448012	2	Tube	SUB FOR AT189694
41	AT189822	1	Hydraulic Hose	Fabricate
42	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
43	AT189822	1	Hydraulic Hose	Fabricate
44	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
45	AT190701	1	Hydraulic Hose	13/16" X 520 mm (20-1/2") X 13/16", Fabricate
46	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
47	AT190701	1	Hydraulic Hose	13/16" X 520 mm (20-1/2") X 13/16", Fabricate
48	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
49	38H1095	1	Elbow Fitting	-
50	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
51	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
52	38H1356	2	Tube Nut	-
53	38H1272	1	Union Fitting	-
54	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
55	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
56	U40398	1	Clamp	-
57	24M7106	1	Washer	10 X 18 X 2.500 mm
58	19H2633	1	Cap Screw	3/8" X 1-1/2"
59	AT142403	1	Hydraulic Hose	-
60	AT142403	1	Hydraulic Hose	-
61	38H1474	1	Reducer	Not Illustrated

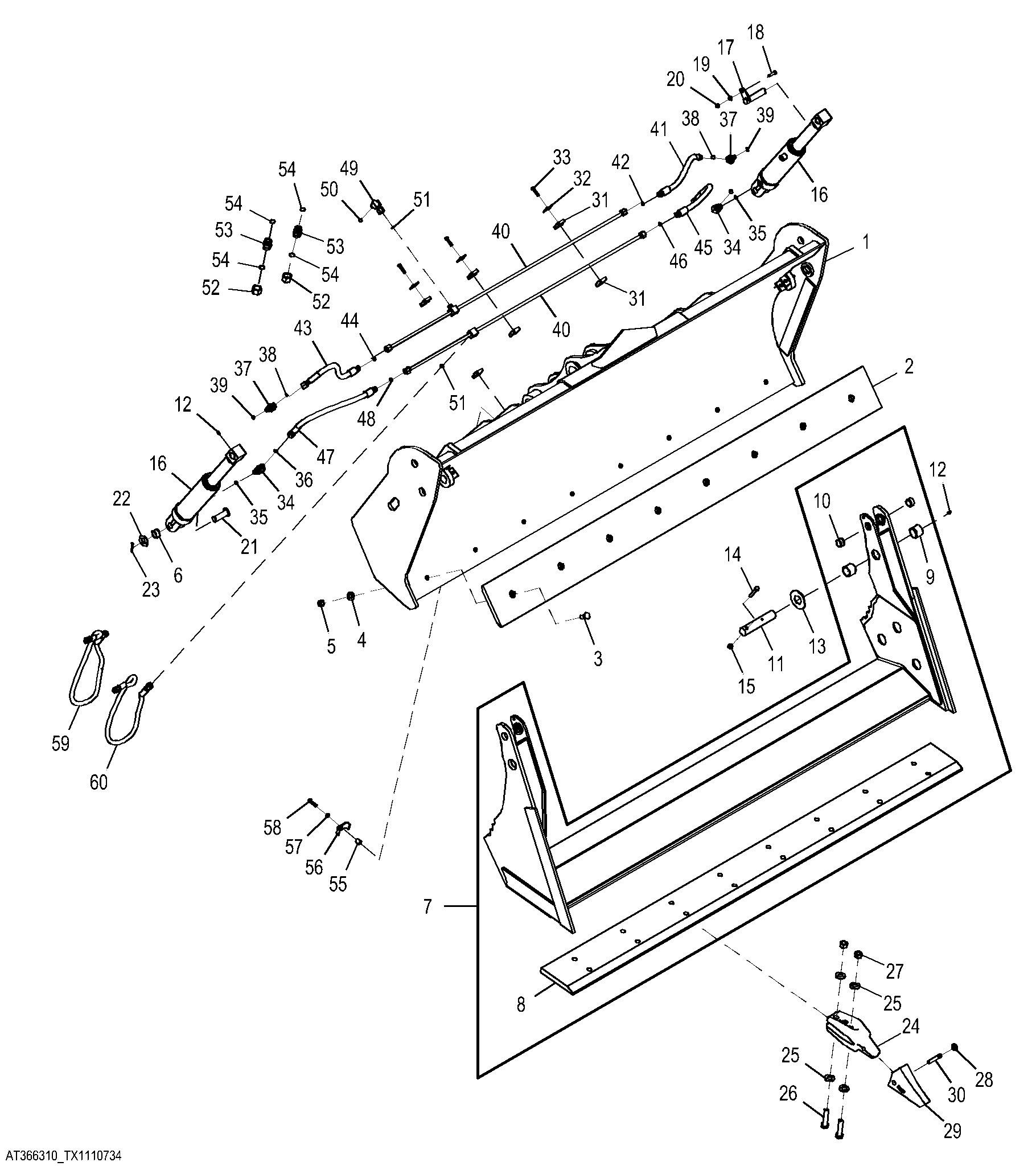

Multipurpose Bucket with Teeth 1.06 m³ (1.39 yd³)
