Hood and Engine Side Panels (Engine 6068HT067)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1047	1	Nut	7/16"
2	14M7272	32	Nut	M6
3	14M7328	2	Lock Nut	M16
4	19M7077	18	Cap Screw	M6 X 20
5	19M7402	1	Cap Screw	M10 X 25
6	19M8637	8	Cap Screw	M10 X 40
7	19M9100	10	Screw	M6 X 50
8	24H1236	2	Washer	13/16" X 2" X 0.149"
9	24M7047	3	Washer	13 X 24 X 2.500 mm
10	24M7239	9	Washer	10.700 X 21 X 2.500 mm
11	24M7241	2	Washer	17 X 34 X 4 mm
12	AT189661	1	Bar	-
13	AT196619	1	Support	-
14	AT196879	1	Hood	-
15	AT199612	1	Cover	(RH)
16	AT199613	1	Cover	(LH)
17	AT311378	1	Gas Operated Cylinder	-
18	21M7267	16	Screw	M6 X 20
19	T251412	1	Angle	-
20	T251413	1	Angle	-
21	19M7933	4	Cap Screw	M6 X 25
22	19M8477	8	Cap Screw	M6 X 40
24	19M8425	12	Cap Screw	M6 X 16
25	24M7139	70	Washer	6.400 X 18 X 1.600 mm
26	24M7250	4	Washer	6.400 X 17 X 3 mm
27	28H3359	2	Washer	0.269" X 0.405" X 7/32"
28	21M7246	8	Screw	M6 X 16
29	T165911	2	Bushing	-
30	AT196425	1	Strap	-
31	T165915	1	Louver	(RH)
32	T255486	1	Bracket	(SUB FOR T184787) (RH)
33	AT196487	1	Pivot	(LH)
34	T165916	1	Louver	(LH)
35	T190200	1	Strap	-
36	AT370757	1	Latch	(ALSO ORDER T259844 ) (SUB FOR AT196358)
37	T242385	1	Sealing Trim	-
38	T211122	1	Louver	(LH)
39	T211121	1	Louver	(RH)
40	AT196373	1	Pivot	(RH)
42	T187954	1	Bracket	-
43	T188642	1	Grommet	-
53	T190549	10	Nut	-
54	T255487	1	Bracket	(SUB FOR T184788)(LH)
55	R26871	2	Snap Ring	-
56	T105740	1	Washer	-
57	T165975	2	Bolt	-
58	T165976	1	Guide	(RH)
59	T165977	4	Extension Spring	-
60	T165978	1	Guide	-
61	T165981	1	Compression Spring	-
62	T184393	1	Guide	(LH)
63	T188967	1	Bracket	-
64	T252094	2	Guide	-
65	T259844	1	Striker	-
70	AT344331	1	Hood	Top
80	AT348691	1	Hood	(RH)
90	AT348689	1	Hood	(LH)

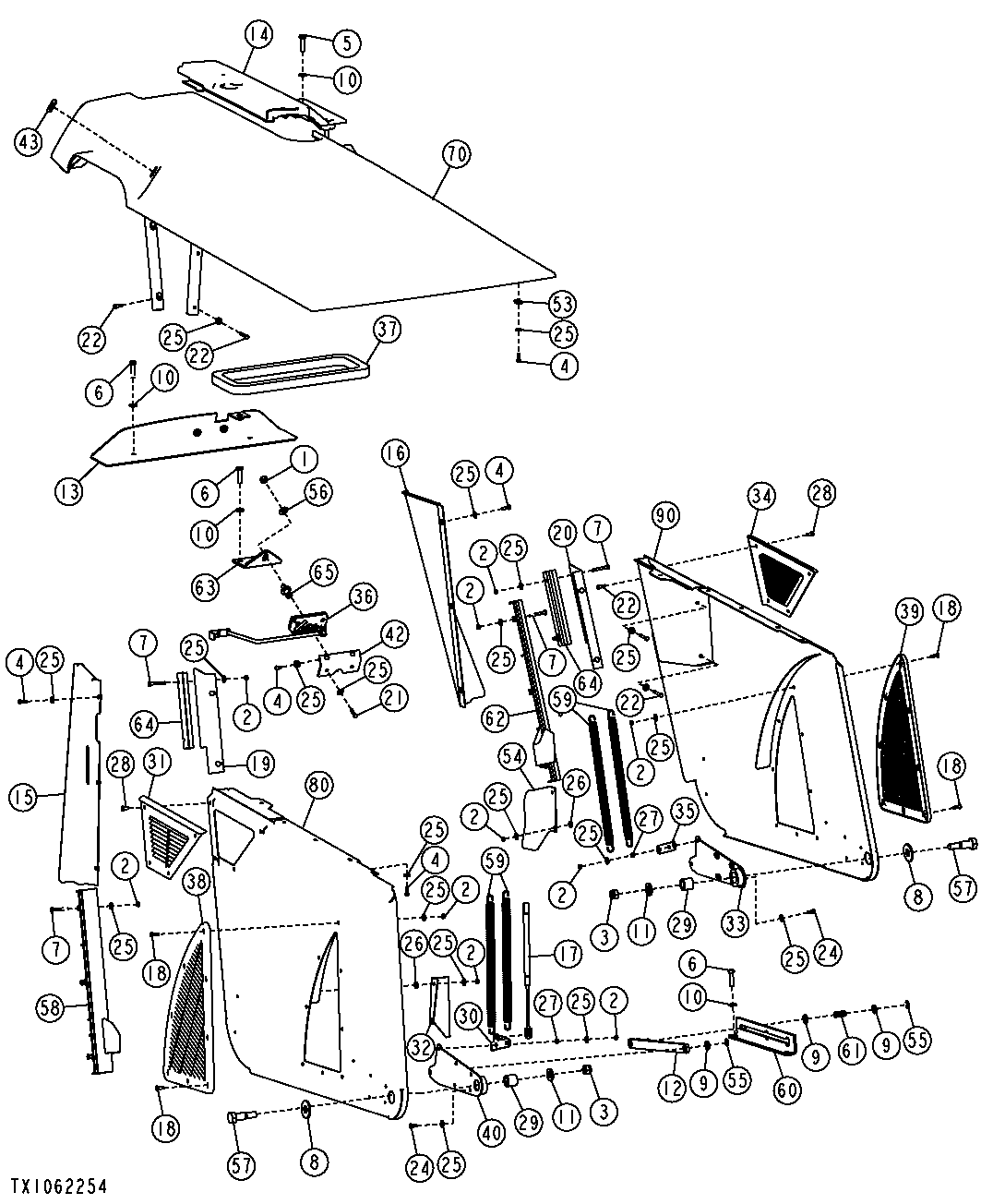

Hood and Engine Side Panels (Engine 6068HT067)
