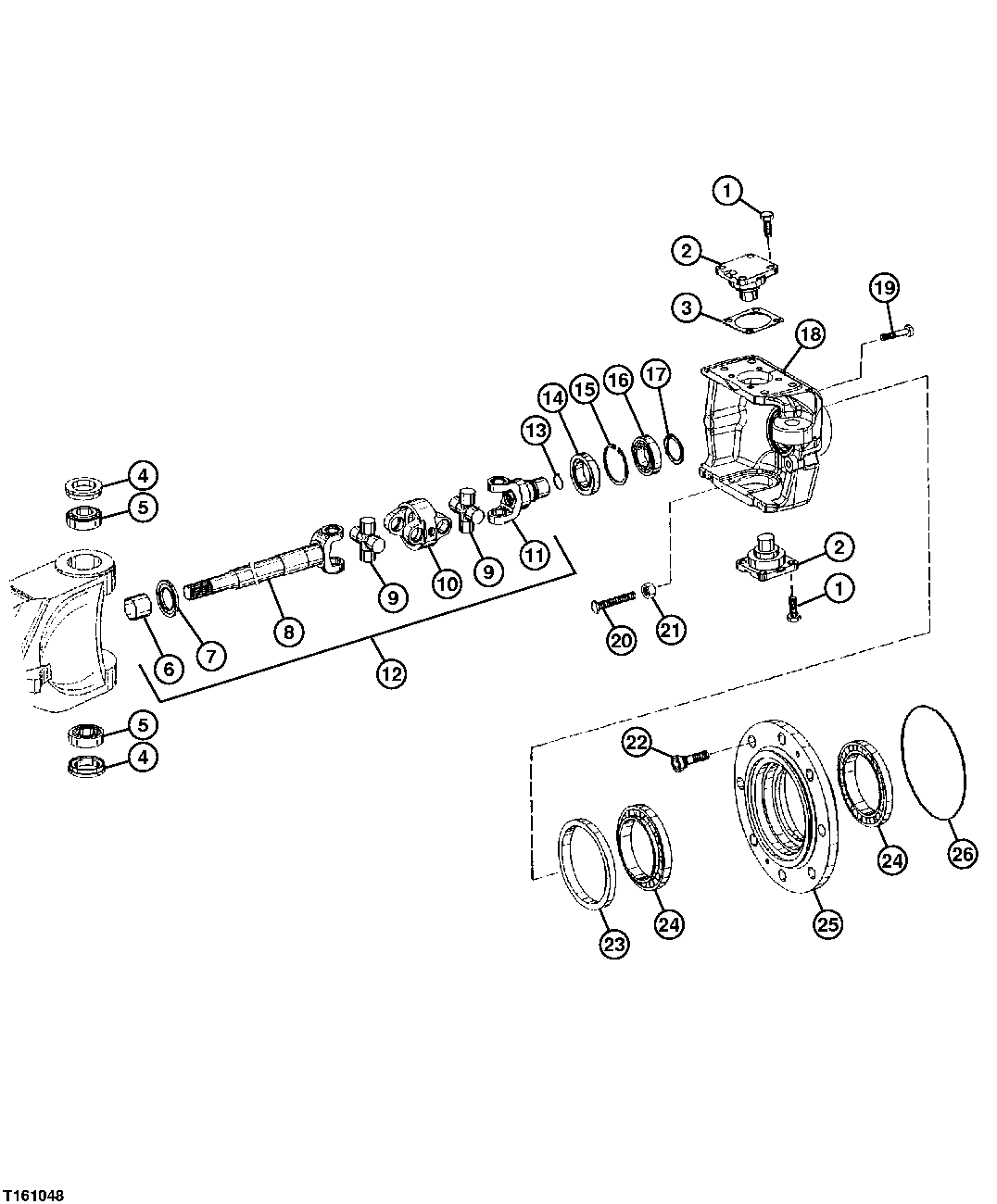

Front Axle Housings, Hubs and Universal Joints (w/ MFWD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M6332	16	Cap Screw	M14 X 35
2	L112111	4	Pin	-
3	L110712	1	Shim	0.3 mm
3	L110721	1	Shim	2.0 mm
3	L151985	1	Shim	1.8 mm
3	L151984	1	Shim	1.6 mm
3	L110718	1	Shim	1.4 mm
3	L151983	1	Shim	1.2 mm
3	L110716	1	Shim	1.0 mm
3	L110715	1	Shim	0.8 mm
3	L116246	1	Shim	0.7 mm
3	L110714	1	Shim	0.6 mm
3	L116247	1	Shim	0.5 mm
3	L110713	1	Shim	0.4 mm
3	L110711	1	Shim	0.2 mm
4	AL110924	4	Seal	-
5	AL111096	4	Bearing	-
6	L101813	2	Bushing	-
7	L101812	2	Sheet	-
8	-	2	Part 20	-
9	T201277	4	Universal Joint Cross	-
10	T201271	2	Universal Joint Yoke	-
11	-	2	Part 23	-
12	AT195043	1	Universal Driveshaft	Short, (LH)
12	AT195044	1	Universal Driveshaft	Not Illustrated Long, (RH)
13	T82543	2	Snap Ring	-
14	AT436868	2	Seal	SUB FOR AL81843
15	40M1873	2	Snap Ring	-
16	AL81776	2	Bearing	-
17	T159519	2	Snap Ring	-
18	T184938	1	Housing	(LH)
18	T184939	1	Housing	Not Illustrated, (RH)
19	19M8738	16	Cap Screw	M10 X 45
20	L114785	4	Screw	-
21	T187685	4	Nut	-
22	L55598	16	Wheel Bolt	-
23	T187684	2	Seal	-
24	AL81844	4	Tapered Roller Bearing	-
25	L101713	2	Hub	-
26	L40317	2	O-Ring	-

Front Axle Housings, Hubs and Universal Joints (w/ MFWD)

Нет текстового описания
