Engine and Transmission Harness (Engine 6068TT061)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T184676	1	Strap	-
2	AT313571	1	Wiring Harness	Transmission
3	37H116	2	Screw	-
4	14M7272	2	Nut	M6
5	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
6	RE52722	1	Temperature Sensor	Engine Coolant Tempreature Sensor
7	14M7274	2	Nut	M10
8	T210717	8	Bracket	-
9	AT141011	1	Relay	12V, Starter
10	19M7938	1	Cap Screw	M10 X 20
11	24M7239	2	Washer	10.700 X 21 X 2.500 mm
12	19M7557	1	Cap Screw	M10 X 16
13	19M8600	1	Cap Screw	M10 X 50
14	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
15	AT159811	1	Switch	Park Brake Oil Pressure
16	51M7039	1	O-Ring	8.100 X 1.600 mm
17	T74412	1	Clamp	-
18	MT2485	1	Plug	Fastener
19	19M8499	1	Cap Screw	M10 X 60
20	AT183823	1	Sensor	Torque Converter Tempreature Sensor
21	R26375	1	O-Ring	-
22	AT167399	1	Ground Cable	Ground
23	AH77869	1	Clip	-
24	AT85174	1	Switch	Engine Oil Pressure
25	19M7373	1	Cap Screw	M5 X 20
26	AT322279	1	Wiring Harness	-
27	19M7008	1	Cap Screw	M8 X 10
28	24M7238	1	Washer	8.700 X 17 X 2 mm
29	AT180705	1	Ground Cable	Ground
30	24M7139	1	Washer	6.400 X 18 X 1.600 mm
31	24M7088	2	Washer	6.600 X 12 X 1.600 mm
32	19M8324	2	Cap Screw	M10 X 16
33	57M8131	1	Electronic Terminator	Can Resistor
34	51M7041	1	O-Ring	11.300 X 2.200 mm
35	14M7375	1	Flange Nut	M5
36	R44302	45	Tie Band	-
37	H77698	5	Tie Band	-

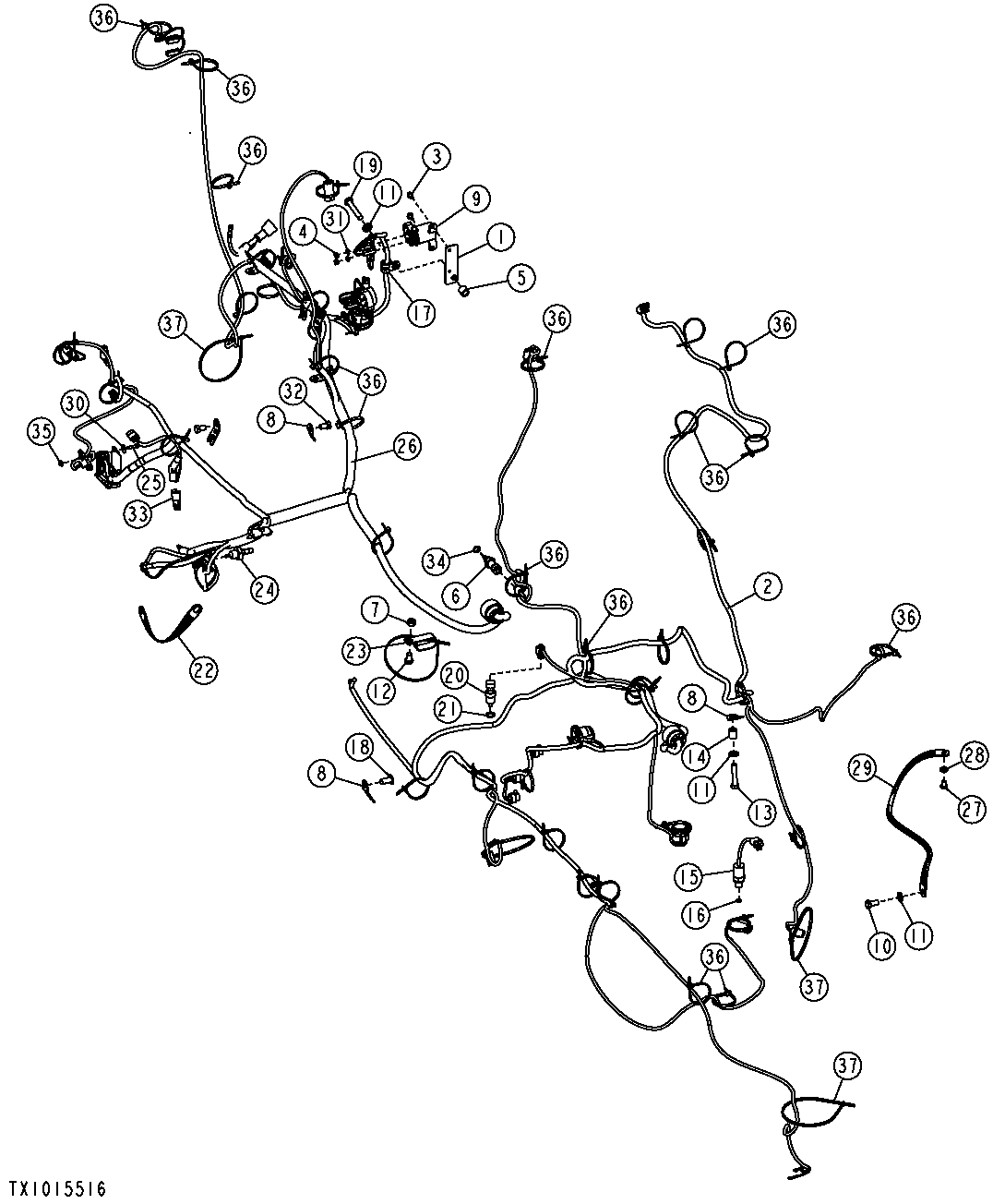

Engine and Transmission Harness (Engine 6068TT061)
